Lian Li Edge Series 850W 80+ Gold Full Modular ATX Power Supply - White

Power supply design

Fully modular

Color

White

Material

Steel

Form factor

ATX 3.1

Certification

80 PLUS GOLD / Cybenetics GOLD / PPLP GOLD

Max. DC output

850W

Combined +3.3V & +5V

120W

Combined +12V

849W

Input voltage

100-240Vac

Input frequency range

10-5A 50-60Hz

PFC

Active PFC, PF > 0.90 under full load @ 115Vac, 60Hz

Efficiency

90.71%MAX

Protective circuit

OCP/OVP/OTP/OPP/SCP/UVP

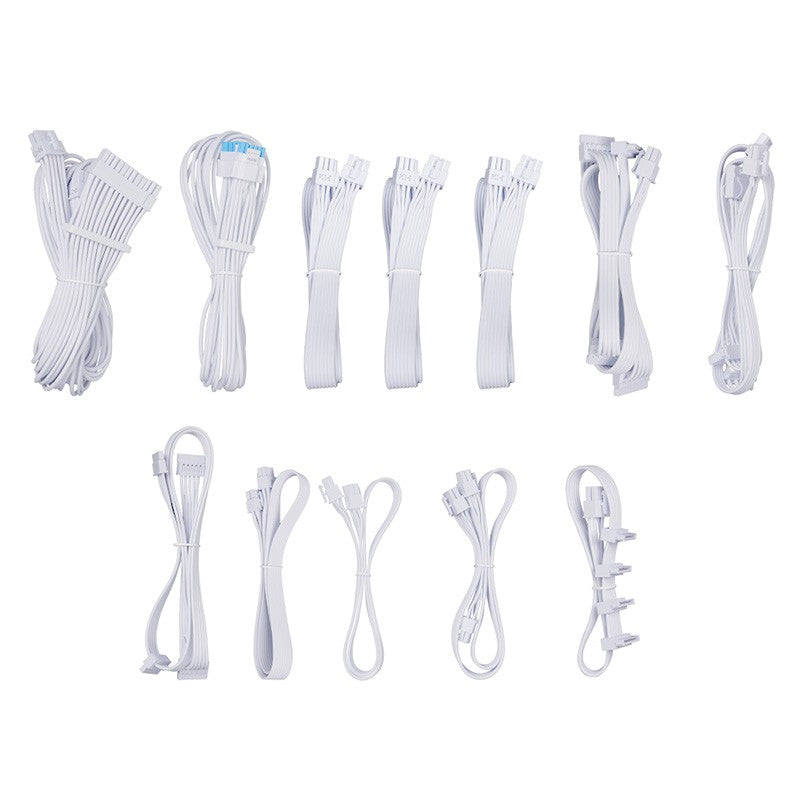

Connectors

1 x 24/20-Pin motherboard connector (620mm) x1pcs

1 x 8 pin CPU/ATX 12V connector (750mm) x1pcs

1 x 4+4 Pin CPU connector (750mm) x1pcs

1 x 6+2 Pin GPU connector (650mm+100mm) x1pcs

1 x SATA connector (300mm-15mm-15mm-15mm) x1pcs

1 x SATA-Y connector (375mm-150mm-150mm) x 1pcs

1 x SATA connector (400mm-150mm-150mm-150mm) x1pcs

4 x 4-Pin Peripheral connector (500mm-150mm-150mm-150mm) x1pcs

1 x 12V – 2X6 450W connector (650mm) x1pcs

2 x 6+2 Pin GPU connector (650mm) x2pcs

Fan type

120mm FDB Fan

Fan speed

2000RPM

Fan noise level

30.9dBA
