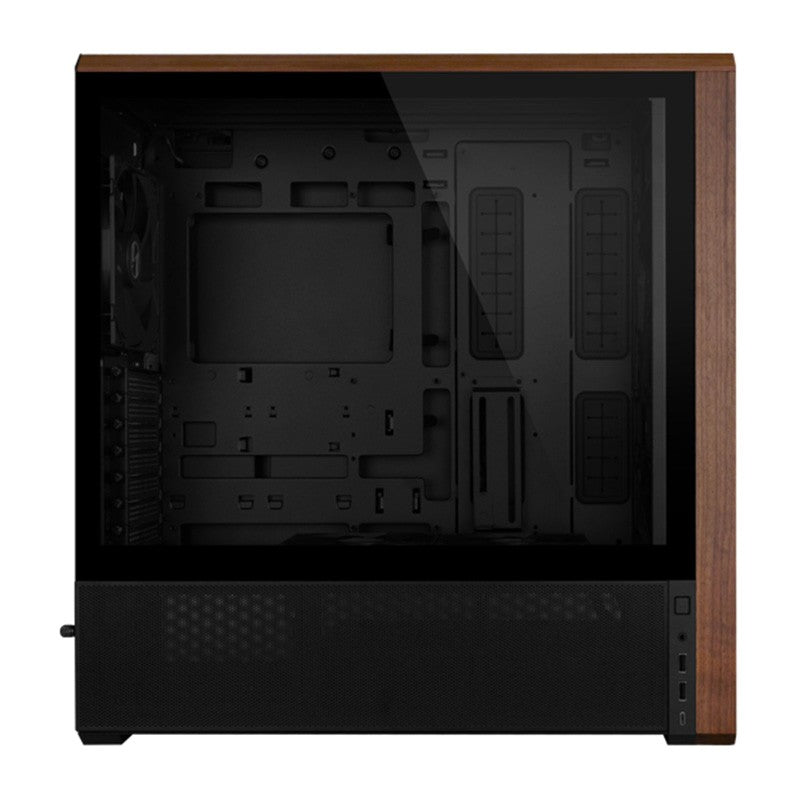

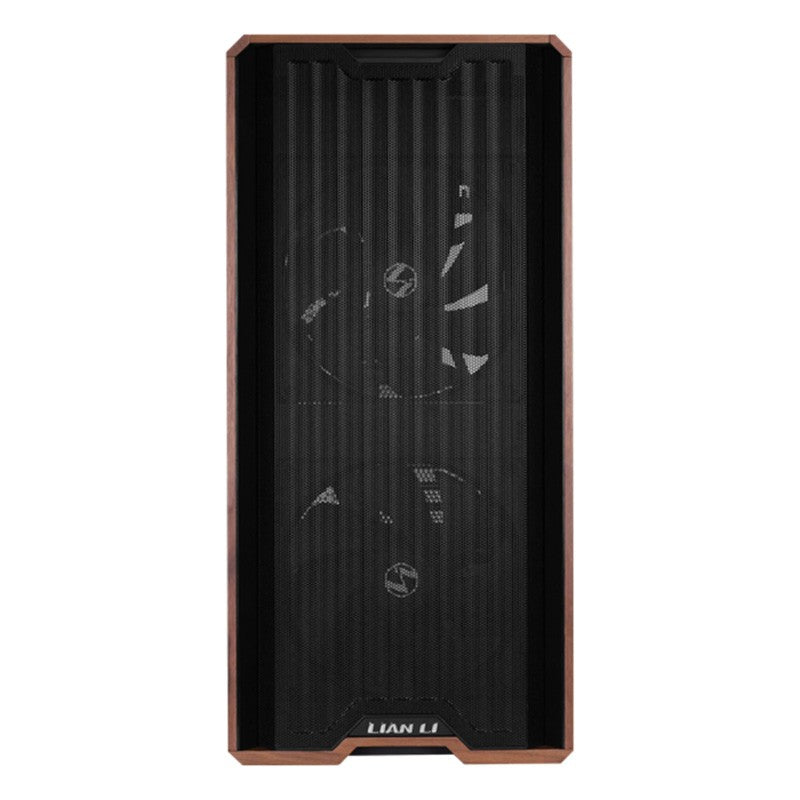

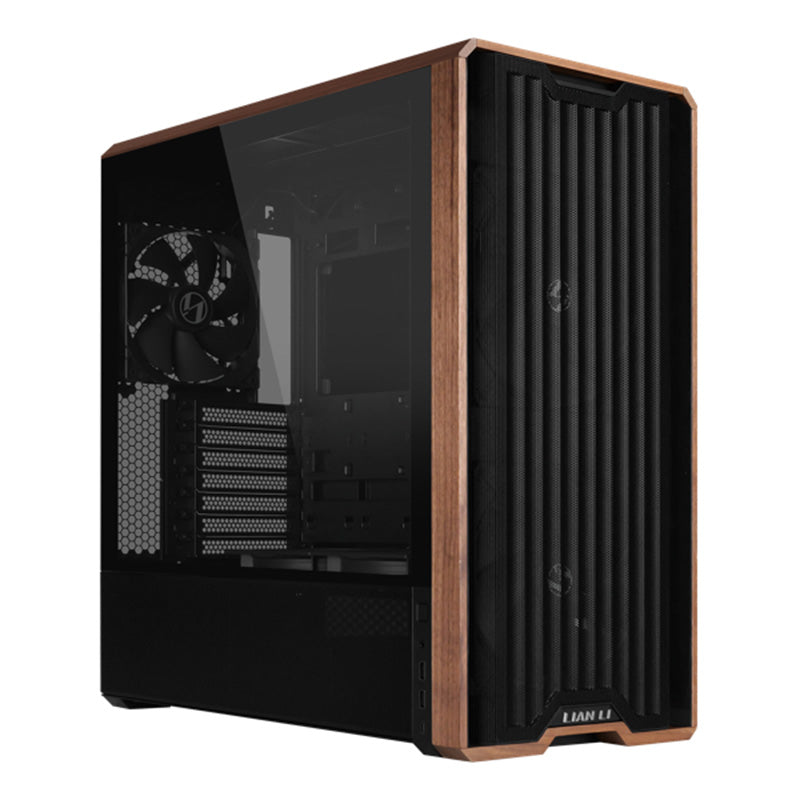

Lian Li LANCOOL 217 Mid-Tower E-ATX Case

Dimension

(D)482mm x (W)238mm x (H)503mm

Material

Steel / 4.0mm Tempered Glass / Wood

Motherboard support

SSI-EEB(Width Max 330mm) /

E-ATX?Width Max 280mm?

ATX / Micro-ATX/Mini-ITX

Back connect motherboard support

ATX / Micro-ATX

PSU support length

Standard Mode?ATX?Under 220mm?

Rotated Mode?ATX?Under 180mm?

Fan support

Front: 170mm x 2 (Included) / 140mm x 3 / 120mm x 3

Top: 3 x 120mm / 2 x 140mm

Above PSU Shroud: 3 x 120mm (2 Included)

Under the PSU shroud: 2 x 120mm

Rear: 1x 140mm (Included) / 1x 120mm

Radiator support

Top: 360 / 280 / 240mm

Drive support

Back Connect Motherboard: 2 x 2.5? SSD /

1 x 2.5? SSD(behind MB)

2 x Drive Cage: 1 x 3.5?HDD+

1 x 2.5? SSD+(1 x 3.5? HDD or 1 x 2.5? SSD)

PSU Shroud: 1 x 2.5? SSD

GPU length clearance

380mm (Max.)

CPU height clearance

180mm (Max.)

Expansion slot

7

I/O ports

2 x Power Button

2 x USB 3.0

1 x USB Type-C

1 x Audio

Dust filter

1 x Bottom, 1 x Front

Hub

ARGB / FAN Hub?6 x PWM FAN port

4 x 5V ARGB port
