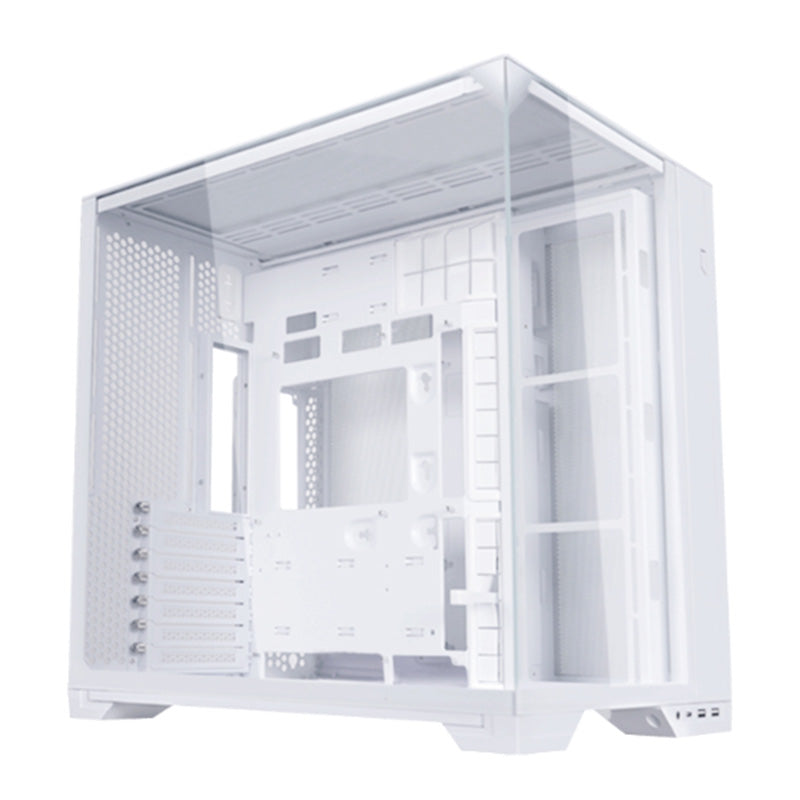

Lian Li O11 Vision Compact Mid-Tower ATX Case - White

Case type

Tower Chassis

Dimension

(D) 480mm x ( W ) 304mm x (H) 464.5mm

Material

Steel, 4.0mm tempered glass, 3.0mm tempered glass, Aluminium

Motherboard support

Back-Connect ATX/ E-ATX (Under 280mm) / ATX / Micro-ATX / Mini-ITX

Expansion slot

6+1

Storage

Behind MB Tray: 2 x 2.5? SSD Hard drive cage: 2 x 3.5? HDD or 2.5? SSD

GPU length clearance

408mm (Max.)

CPU cooler height clearance

164mm (Max.)

PSU support

ATX (Under 220mm)

Fan support

Top: 120mm x 3 or 140mm x 2 Side: 120mm x 3 Bottom: 120mm x 3 Rear: 120mm x 2

Radiator support

Top: 240mm x 1 or 280mm x 1 or 360mm x 1 Side: 240mm x 1 or 360mm x 1 Bottom: 240mm x 1 or 360mm x 1

I/O ports

Power Button x 1 USB 3.0 x 2 USB 3.1 TYPE-C x 1 Audio x 1

Dust filter

Bottom × 1
