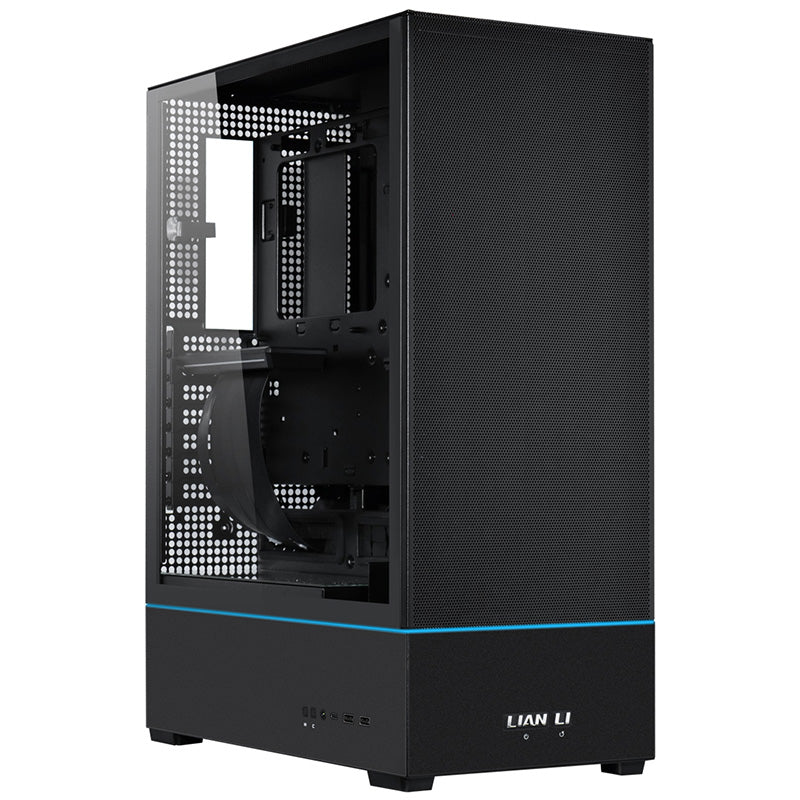

Lian Li SUP01 TG Small Tower ATX Case - Black

Case type

Small Tower Case

Dimension

(D) 403.45mm x (W) 212mm x (H) 534mm

(D) 403.45mm x (W) 212mm x (H) 524mm (w/o feet)

Capacity

44.8L

Material

Steel

4.0mm Tempered Glass

Riser cable type

PCIE 4.0

Motherboard support

ATX/M-ATX/ITX

ATX Back Connect

PSU support

ATX (Max 220mm)

Included fan

3 x 120mm PWM

Fan support

Side 1: 3 x 120mm

Side 2: 3 x 120mm or 2 x 140mm

Rear exterior: 1 x 120mm

Radiator support

Side 2: 360mm or 280mm

Drive support

Drive Cage: 2 × 2.5” SSD or 2 × 3.5” HDD

Above PSU shroud:2 × 2.5” SSD

GPU length clearance

Max 400mm

CPU height clearance

Max 88.2mm

Expansion slots

7 (for low profile card)

4 (for standard profile card with extension cable)

I/O ports

1 x Power Button

1 x Reset Button

2x USB 3.0 TYPE-A

1x USB 3.1 TYPE-C

1x Mic

1 x Light Color Button (C)

1 x Light Mode Button (M)

Dust filter

1 x bottom tray

1 x front magnatic

1 x top magnatic
