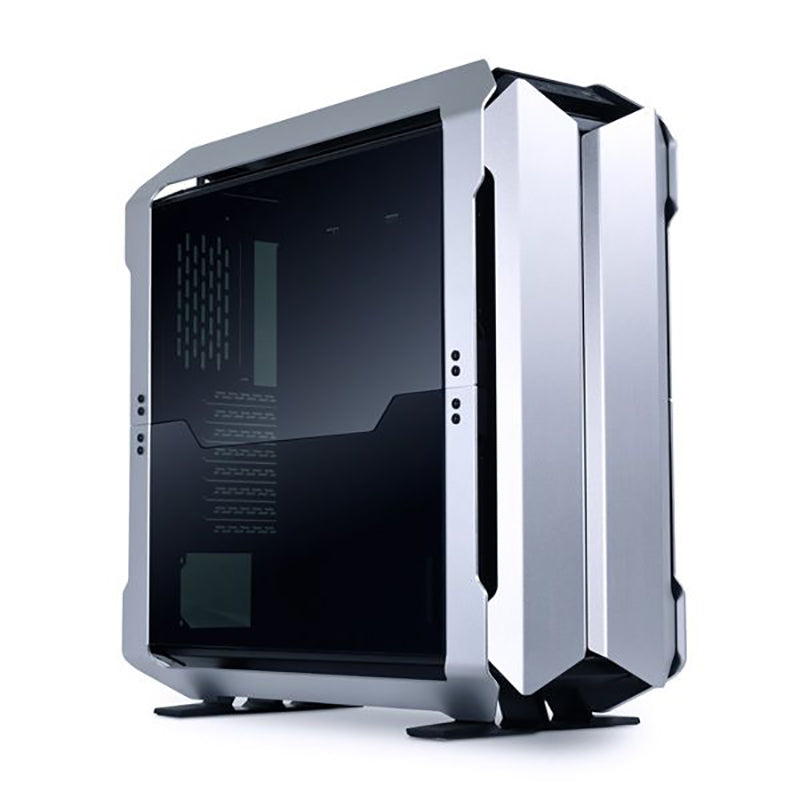

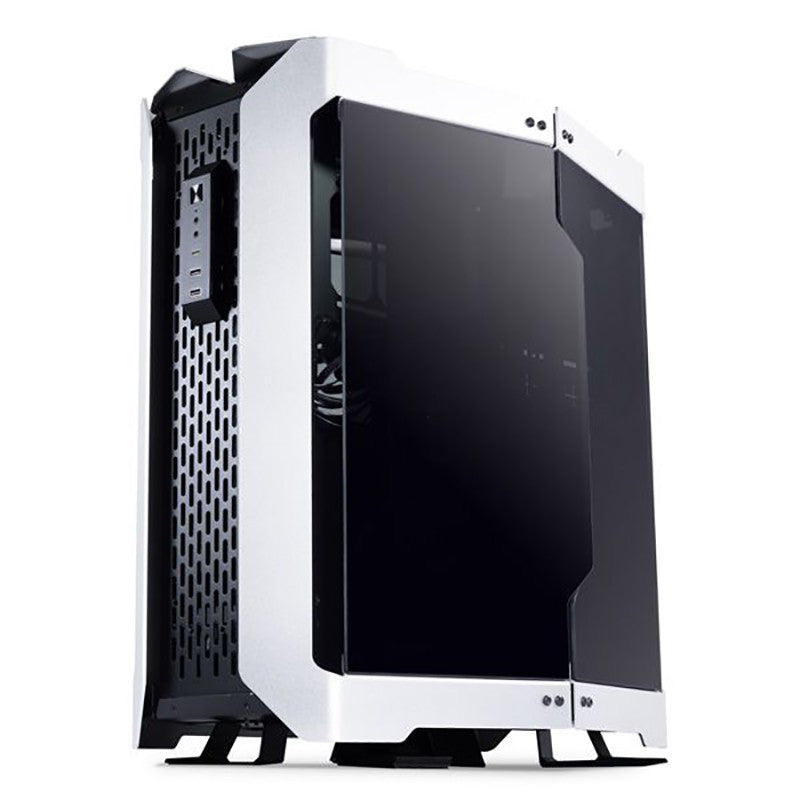

Lian Li TR-01 Odyssey X Tempered Glass Modular Full Tower E-ATX Case - Silver

DIMENSIONS

DIMENSIONS Dynamic/Dynamic-R (Rotate)
  (D) 575.5mm x (W) 234mm x (H) 558.5mm
  Performance
  (D) 537.1mm x (W) 368.6mm x (H) 596.7mm

MATERIALS

Aluminum
  Steel
  4.0mm Black tempered glass (both sides)

MOTHERBOARD   SUPPORT

EEB/E-ATX/ATX/Micro-ATX/Mini-ITX

FAN SUPPORT

Dynamic
  Front?3 x 120mm or   2 x 140mm
  Top?3 x 120mm or   2 x 140mm
  Side?3 x 120mm or   2 x 140mm
  Dynamic-R (Rotate)
  Front?3 x 120mm or   2 x 140mm
  Base?4 x 120mm or   3 x 140mm
  Performance
  Front?4 x 120mm or   3 x 140mm
  Top?3 x 120mm or   2 x 140mm
  RADIATOR SUPPORT Dynamic
  Front?1 x   360/280/240mm
  Side?1 x   360/280/240mm
  Dynamic-R (Rotate)
  Front?1 x   360/280/240mm
  Base?1 x 480/420/360/280/240mm
  Performance
  Front?1 x   480/420/360/280/240mm
  Top?1 x   360/280/240mm

PSU SUPPORT   LENGTH

Max 280mm

GPU LENGTH   CLEARANCE

Max 423mm

CPU COOLER   HEIGHT CLEARANCE

Max 167mm

DRIVE

3 X 3.5? HDD or 3 X 2.5? SSD

EXPANSION   SLOT

8

I/O PORTS

2 X USB 3.0, 1 X USB 3.1 TYPE-C, 1 X HD AUDIO
