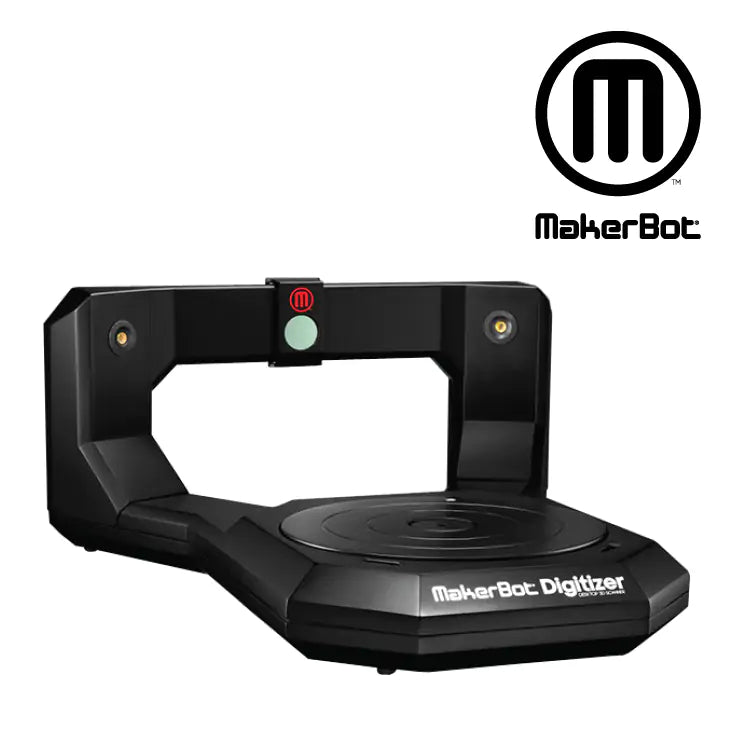

Name: MakerBot Digitizer Desktop 3D Scanner
Brand: MakerBot
Price: 2046.2 AUD
Availability: InStock

Roll over image to zoom in Click on image to zoom

Product Name: MakerBot Digitizer Desktop 3D Scanner

Model Number: MP03955

Brand: MakerBot

Manufacturer Warranty: 1 Year

MAKERBOT
DIGITIZER

DESKTOP 3D SCANNER

Quickly turn the things in your world
into 3D models that you can modify,
improve, share, and 3D print

OPTIMIZED FOR 3D PRINTING

With just two clicks, the MakerBot Digitizer
Desktop 3D Scanner™s easy to use, yet sophisticated
software creates clean, watertight 3D models that are
ready to 3D print. We™ve optimized the whole process
to work seamlessly with MakerBot Replicator
Desktop 3D Printers, but you get standard design files
to use on the 3D printer of your choice. You don™t need
any design or 3D modeling skills to get started, and it all
happens in just minutes.

INTRODUCING MAKERBOT MULTISCAN TECHNOLOGY
CREATE BETTER 3D MODELS

MakerBot MultiScan Technology allows you to
scan objects from multiple angles to capture the
top, bottom, and hidden parts of your object.
You can then merge them together to create
the best possible 3D model.

User Manual	Download Link
PERFORMANCE	SCAN VOLUME Up to 20.3 (diameter) x 20.3 cm (H) [8 x 8 in.] DIMENSIONAL ACCURACY ± 2.0 mm [± 0.079 in] DETAIL RESOLUTION 0.5 mm [0.0197 in] TRIANGLES PER 3D MODEL Approx. 200K SCAN SPEED Approx. 12 minutes STEPS PER ROTATION 800 per rotation OPTIMAL LIGHT CONDITIONS Artificial indoor light MAXIMUM WEIGHT ON TURNTABLE 3 kg [6.6 lbs]
SOFTWARE	INCLUDED SOFTWARE MakerWare for Digitizer EXPORTED FILE TYPES STL, Thing OPERATING SYSTEMS Windows (7+) Mac OSX (10.7+) Linux (Ubuntu 12.04+)
COMPONENTS	LASERS Two eye-safe Class 1 laser line generators CAMERA 1.3 megapixel CMOS image sensor ENCLOSURE MATERIAL PC ABS CONNECTIVITY USB connection STEPPER MOTOR 0.9° step angle with 1/16 micro-stepping
DIMENSIONS	PRODUCT DIMENSIONS 47.5 L x 41.1 W x 20.3 H cm [18.7 x 16.2 x 8.0 in] SHIPPING DIMENSIONS 52.1 L x 47.0 W x 24.4 H cm [20.5 x 18.5 x 9.6 in] PRODUCT WEIGHT 2.1 kg [4.7 lbs] SHIPPING WEIGHT 5.0 kg [11.0 lbs] STORAGE TEMPERATURE 0°55° C [32°90° F] OPERATING TEMPERATURE 15°32° C [60°90° F] AC INPUT 100240 V, ~2 amps, 5060 Hz POWER REQUIREMENTS 12 V DC @ 2.08 amps

* Specifications are subject to change without notice.
* Specifications may vary.
* The product picture(s) is only for your reference, it may differ from the actual product.
