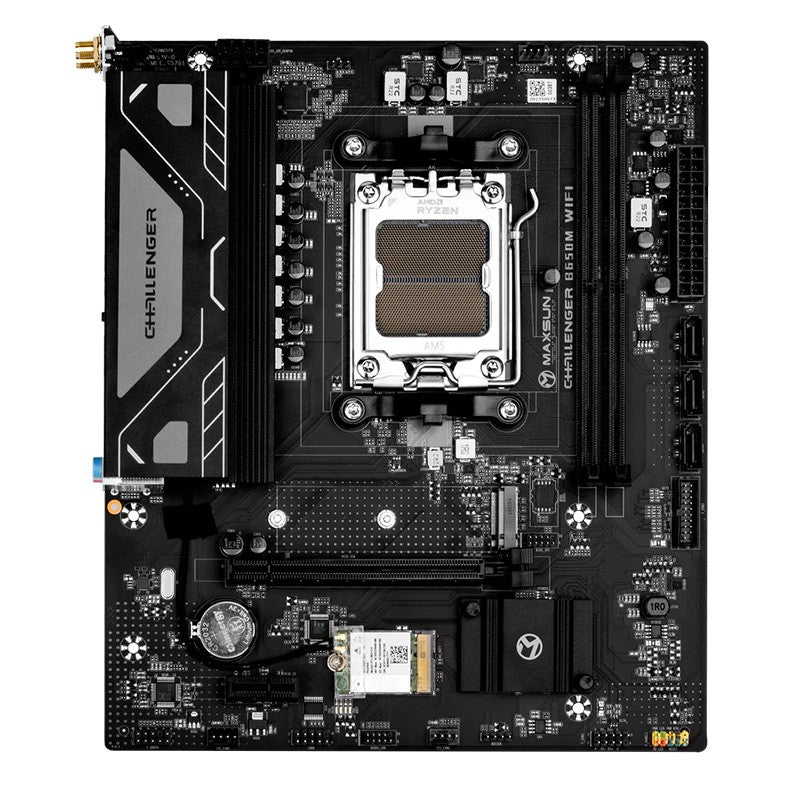

MAXSUN Challenger B650M WIFI AM5 mATX Motherboard

CPU (max support)

Supports LGA1718 slot

AMD RYZEN7000 Series

TDP: 155W (6+2+1 items)

Memory

2* DIMM DDR5 memory slots

Supports dual-channel memory technology

Support 4800MHZ/5200MHZ/OC Memory Frequency

Onboard graphics

1x VGA

*Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz,   1920x1200 60Hz

1x HDMI™port

*HDMI™ port supports up to 4K@30Hz

*Graphics specifications may vary between CPU types.

Expansion slot

1x PCIe 4.0 x16 slot

1x PCIe 3.0 x4 slot

1x PCIe 3.0 x1 slot

Storage

M.2 slot (Key M), type 2242/2280 (supports PCIe 4.0 x4 mode)

4x SATA 6Gb/s ports

USB

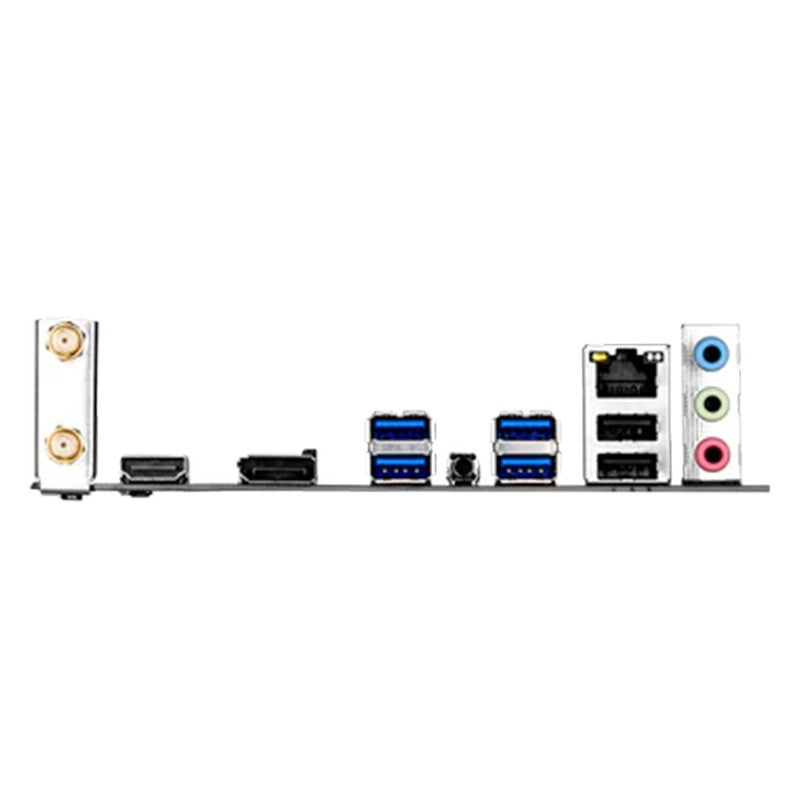

Onboard rear ports: 4* USB3.2 GEN1 ports, 2* USB2.0 ports

On-board pins: 1* set (2 pcs) of USB2.0 pins, 1* set (2 pcs) of USB3.2 GEN1 pins

LAN

Realtek® RTL8111HNIC Chip

Audio

Realtek® ALC897 Codec

5.1-Channel High Definition Audio

Internal I/O

1x 24-pin Power Connector(ATX_PWR)

1x 8-pin Power Connector(CPU_PWR)

1x CPU Fan

2x System Fan

1x PS/2 interface

1x M.2 slots (Key-M)

4x SATA 6Gb/s ports

1x 4-Pin SPEAKER

1x Front Audio

1x COM_A Port

1x 9-Pin DEBUG_CON

1x CLR CMOS

SSD

1* M.2 4.0 slot (supports 2242/2280 PCIE X4/X2 channel SSD only)

3* SATA3.0 ports

Operating system

Support for Windows® 11 64-bit, Windows® 10 64-bit

Form factor

M-ATX

245mm x 210mm
