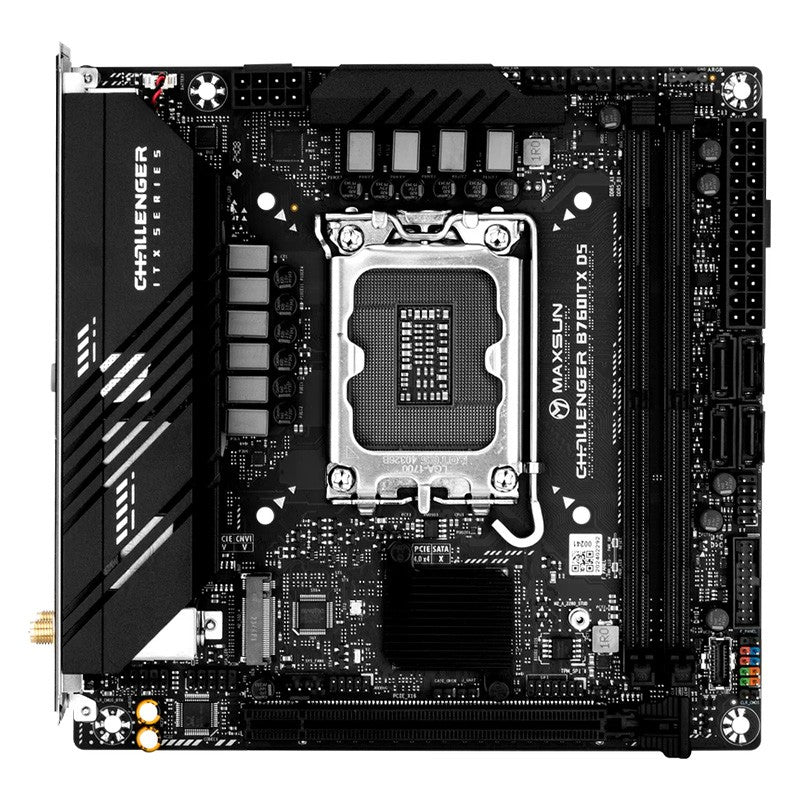

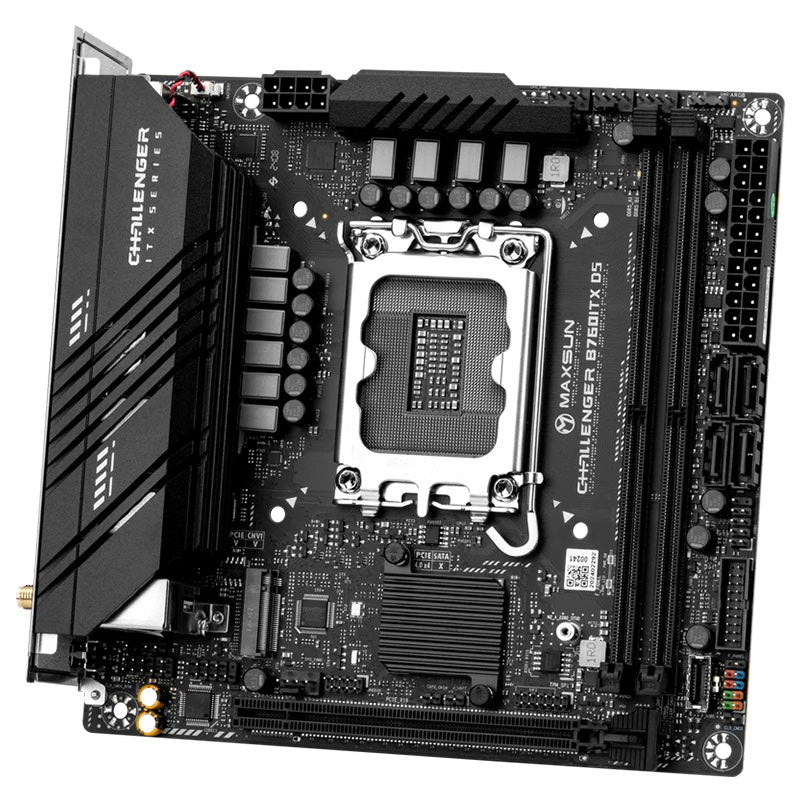

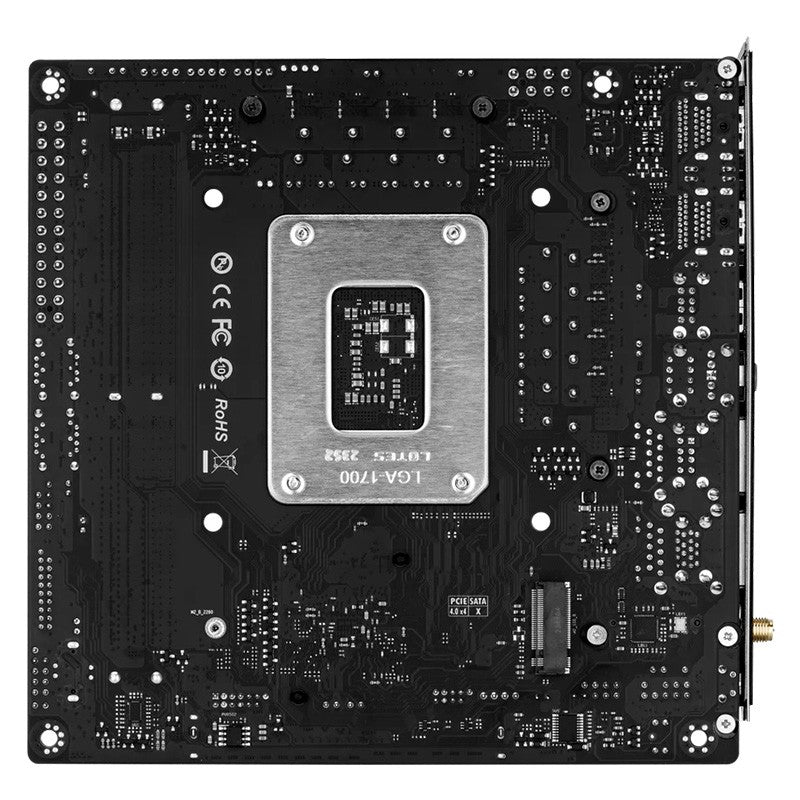

MAXSUN Challenger B760ITX D5 WIFI LGA 1700 ITX Motherboard

CPU

Supports 12th/13th/14th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors

LGA 1700

Memory

2x DDR5, Maximum Memory Capacity 96GB

Support 4800 MHz /XMP/OC/memory frequencies

Supports Intel® XMP 2.0 OC

Supports Dual-Controller Dual-Channel mode

Onboard graphics

2* DP1.4 display ports supporting up to 4096x2160@60Hz resolution

1*HDMl 2.0 display interface, support up to 4096x2160@60Hz resolution

1* HDMl 1.4 display interface, support up to 4096x2160@30Hz   resolution

Expansion slot

1x PCIe 5.0 x16 slot

SSD

1x M.2_SSD_A Front Socket M.2 slot with Gen4 x4 support

1x M.2_SSD_B backside slot M.2 slot with Gen4 x4 support

4x SATA 3.0 ports

USB

Onboard USB pins (5 ports total)

Rear USB ports

LAN

2.5Gb+1Gb dual LAN ports

Audio

Realtek® ALC897 Codec

Internal I/O

1x 24-pin Power Connector(ATX_PWR)

1x 8-pin Power Connector(CPU_PWR)

1x CPU Fan

3x System Fan

1x M.2 slots (Key-M)

4x SATA 6Gb/s ports

1x CLR_CMOS

1x 4-Pin BUZZER

1x Front Audio

1x COM Port

Operating system

Support for Windows® 10 64-bit, Windows® 11 64-bit

Form factor

ITX

170mm x 170mm
