Description
SPECIFICATIONS:
Chipset |
INTEL Z790 |
CPU |
Supports 12th/13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors LGA 1700 |
Memory |
2x DDR5, Maximum Memory Capacity 96GB Memory Support DDR5 7400+(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz Supports Intel® XMP 3.0 OC Supports Dual-Controller Dual-Channel mode |
Onboard graphics |
1x DisplayPort 1.4 1x HDMI™port *HDMI™ port supports up to 4K@30Hz *Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. |
Expansion slot |
1x PCIe 5.0 x16 slot |
Storage |
M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports |
RAID |
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |

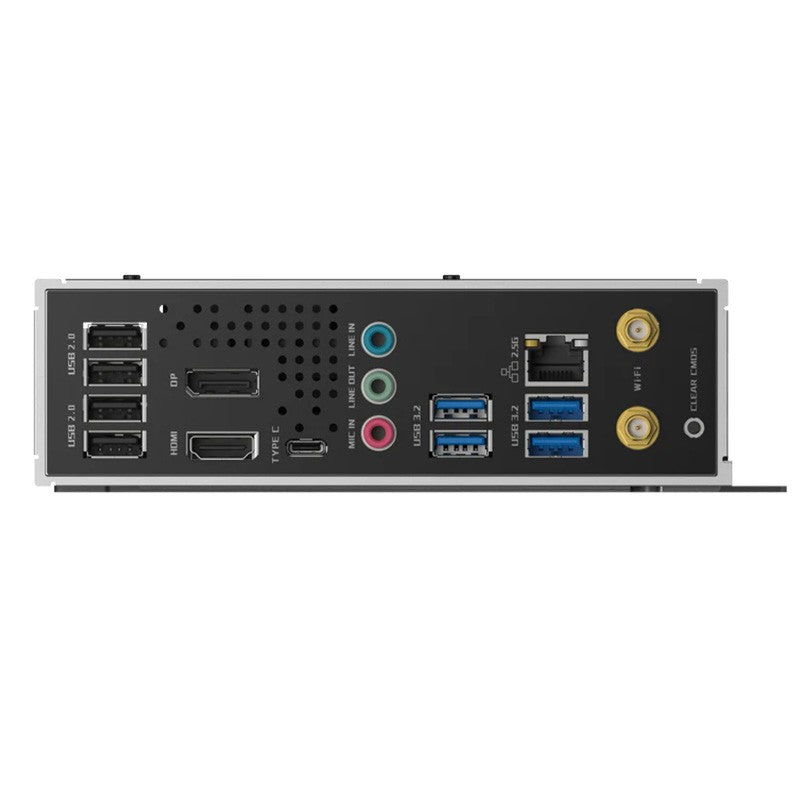

USB |
*Front USB (Total 6 ports) 1x USB 3.2 Gen2 Type C 2x USB 3.2 Gen1 Type A 3x USB 2.0 *Rear USB (Total 9 ports) 1x USB 3.2 Gen2x2 Type C 4x USB 3.2 Gen1 Type A 4x USB 2.0 |
LAN |
Realtek® RTL8125BG 2.5G LAN |
Wireless / Bluetooth |
Intel® Wi-Fi 6E AX211 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth® 5.3 |
Audio |
Realtek® ALC897 Codec 5.1-Channel High Definition Audio |
Internal I/O |
1x 24-pin Power Connector(ATX_PWR) 1x 8-pin Power Connector(CPU_PWR) 1x CPU Fan 1x AIO_PUMP 2x System Fan 2 x M.2 slots (Key-M) 4x SATA 6Gb/s ports 1x M.2 slots (Key-E) 2x 5V 3-Pin ARGB 1x 12V 4-Pin RGB 1x 2-pin Clear CMOS 1x Front Audio 1x SPDIF OUT |
LED feature |
4x Distributed Debug LED |
Operating system |
Support for Windows® 11 64-bit, Windows® 10 64-bit |
Form factor |
ITX 172mm x 172mm |
