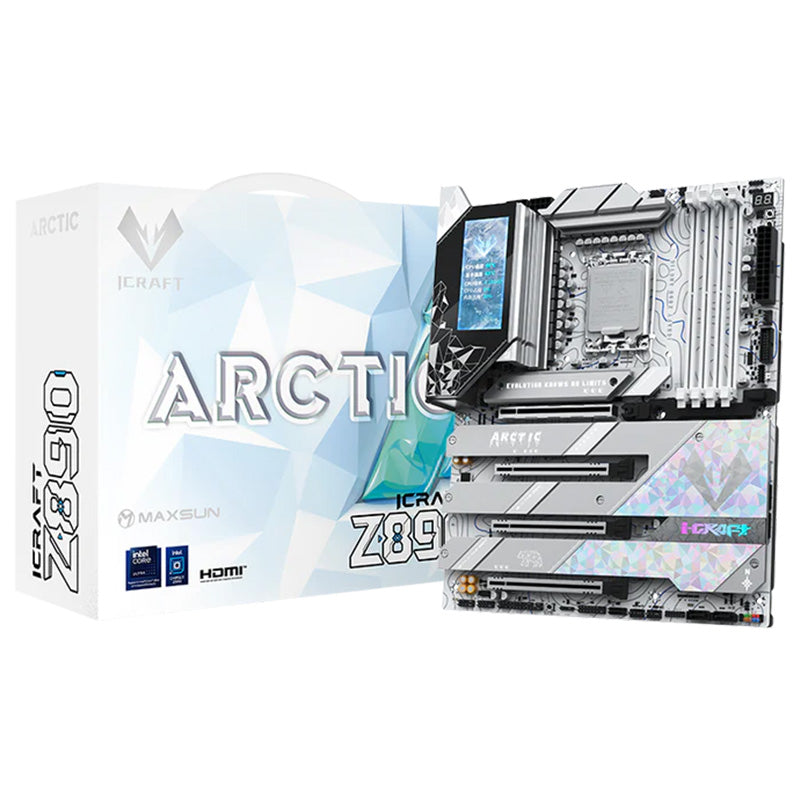

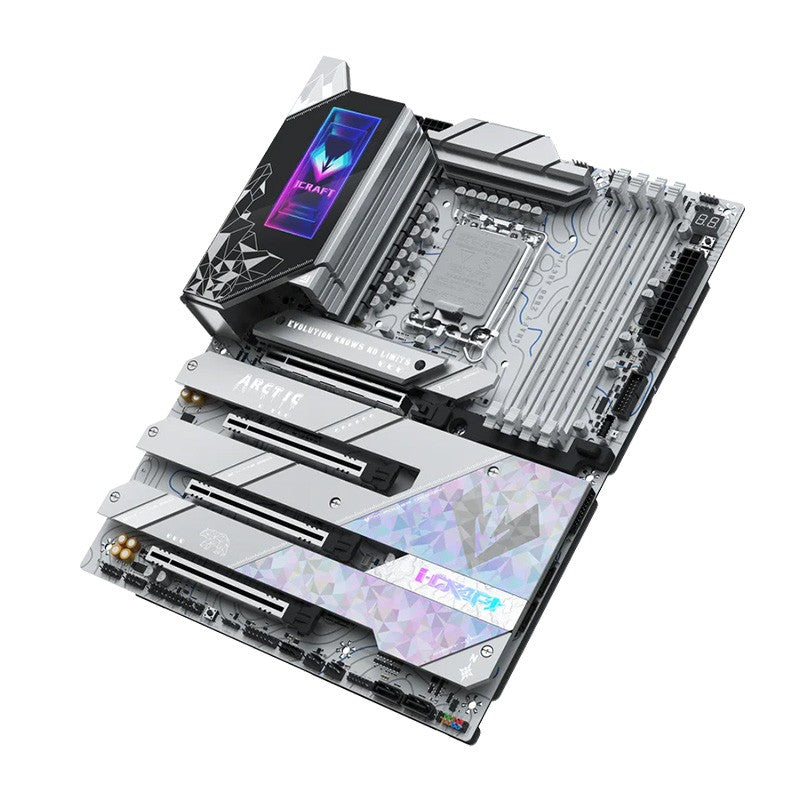

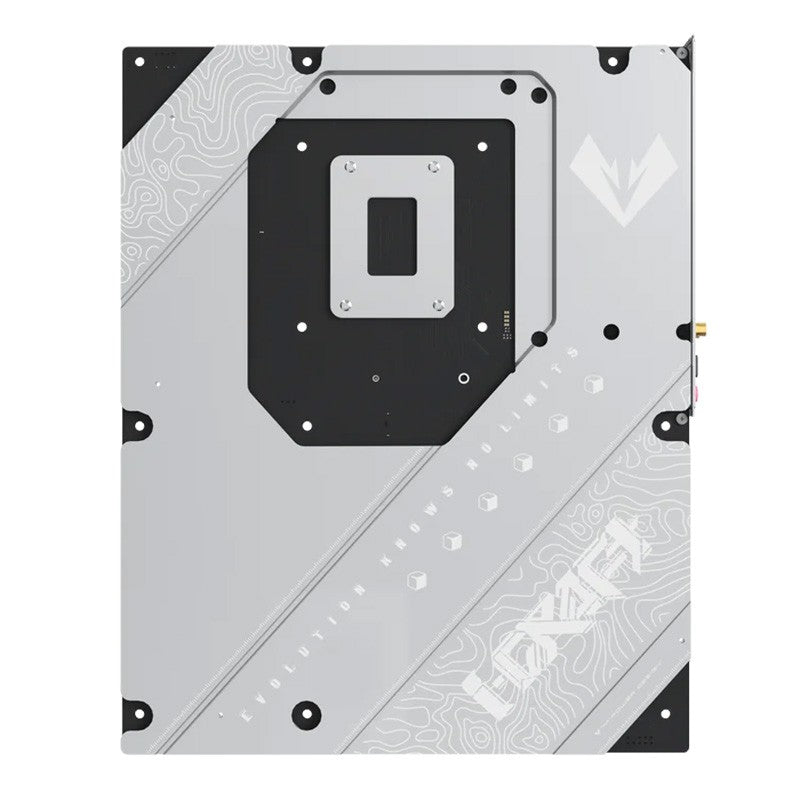

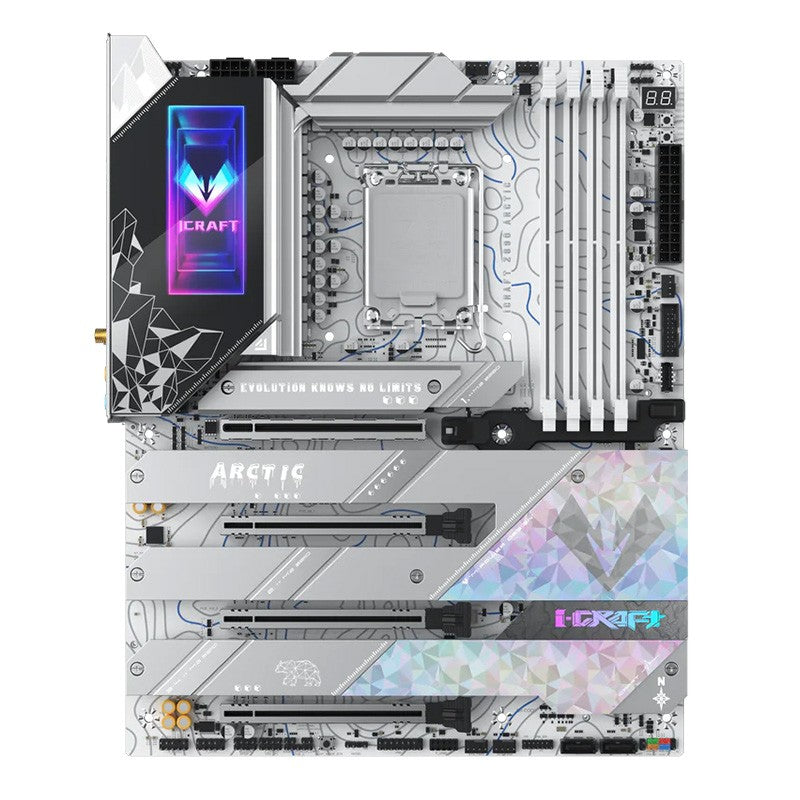

MAXSUN iCraft Z890 Arctic LGA 1851 ATX Motherboard

CPU Socket

Intel® LGA1851 socket, compatible with Intel® Core™ Ultra processors

Chipset

Intel® Z890 Chipset

Memory

4 × DIMM DDR5 slots, supporting up to 256GB

Dual-channel memory support

XMP Support: 4800/ 5600/ 6400/ 7600OC/ 8000(OC)/ 8200(OC)/ 8400(OC)/ 8600(OC)/   8800(OC) MHz

Display Outputs

1 × HDMI™ 2.1, supporting up to 4K at 120Hz

1 × DP1.4, supporting up to 8K at 120Hz

Expansion Slots

1 × PCIe 5.0 x16 slot (configurable as x8/x8, x8/x4, x4/x4)

1 × PCIe x16 slot (physical size x16, supports PCIe 5.0 x8 or PCIe 4.0 x4)

2 × PCIe x16 slots (supporting PCIe 4.0 x4)

Audio Integrated

Realtek ALC1220 audio chip

Networking Integrated

Realtek RTL8126 network chip

Integrated Intel® BE200 Wi-Fi module, supporting Wi-Fi 7 and Bluetooth 5.4

Storage

1 × M.2 slot, supporting PCIe 5.0 x4/x2 mode, compatible with 2242/2280/2280K lengths

3 × M.2 slots, supporting PCIe 4.0 x4/x2 mode, compatible with 2242/2280/22110 lengths

4 × SATA 6Gb/s ports

USB Ports Front Panel USB:

1 × USB 20G Type-C® header

1 × USB 5G 19-pin header, supporting 3 × USB 5G ports (USB 3.2 Gen 1)

1 × USB 2.0 9-pin header, supporting 2 × USB 2.0 ports

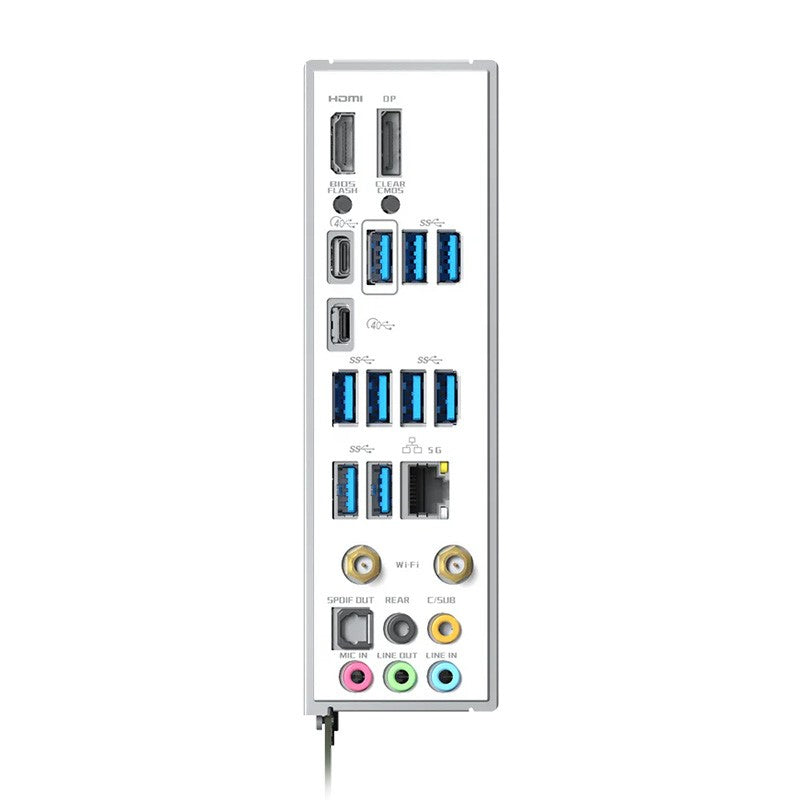

Rear Panel USB:

2 × USB 40G Type-C® ports (one supporting 15W charging)

9 × USB 10G Type-A ports

Additional Features

1 × 24-pin ATX Power Connector

2 × 8-pin +12V Power Connectors

2 × 3-Pin ARGB Headers

1 × 4-Pin NRBG Header

1 × COM Port Header

1 × CLR_CMOS Reset Button

1 × 4-Pin CPU Fan Header

1 × 4-Pin PUMP Header (supports DC and PWM modes)

4 × 4-Pin System Fan Headers
