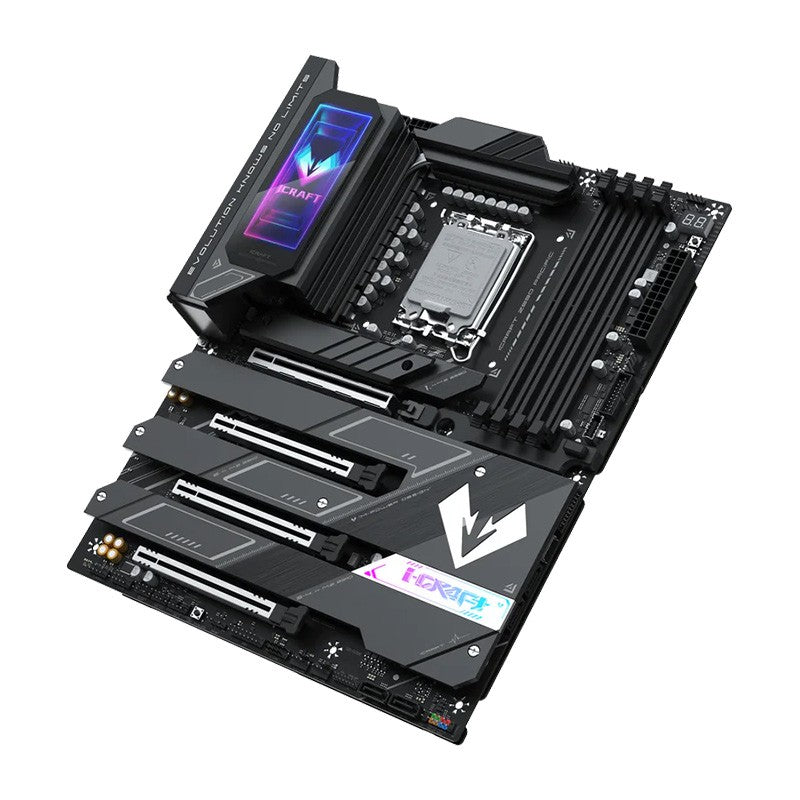

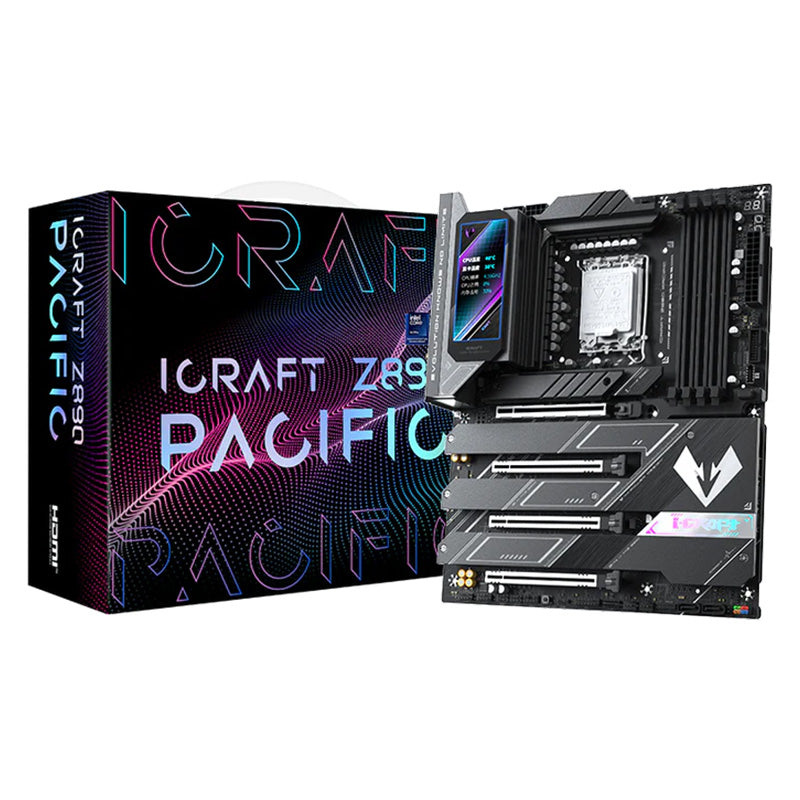

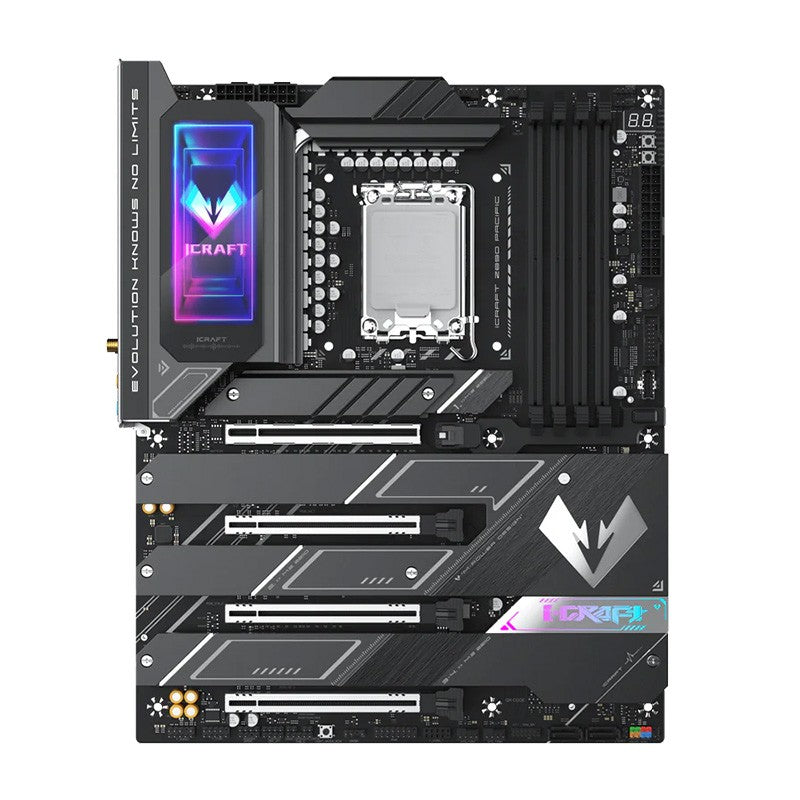

MAXSUN iCraft Z890 Pacific LGA 1851 ATX Motherboard

CPU Socket

Intel® LGA1851, compatible with Intel® Core™ Ultra processors

Chipset

Intel® Z890

Memory

4 x DIMM DDR5 slots, supporting dual-channel up to 256GB

Memory speeds: XMP 4800/5600/6400/7600 (OC)/8000 (OC)/8200 (OC)/8400 (OC)/8600 (OC)/8800 (OC) MHz

Graphics Support

1 x HDMI™ 2.1 (up to 4K @120Hz)

1 x DisplayPort 1.4 (up to 4K @120Hz)

Expansion Slots

1 x PCIe 5.0 x16 slot (splittable to X8+X8/X8+X4+X4)

1 x PCIe 5.0 x16 slot (supports PCIe 5.0 x8 or split to PCIe 5.0   x4+x4)

2 x PCIe 4.0 x16 slots (supporting PCIe 4.0 x4)

Audio Integrated

Realtek ALC1220 Audio Codec

Networking

Realtek RTL8126 Ethernet LAN

Intel® BE200 Wi-Fi card supporting Wi-Fi 7 and Bluetooth 5.4

Storage

1 x M.2 slot (PCIe 5.0 x4/x2, supports 2242/2280 lengths)

3 x M.2 slots (PCIe 4.0 x4/x2, supports 2242/2280/22110 lengths)

4 x SATA 6Gb/s ports

1 x SFF-8654 4i interface (supports PCIe 4.0 x4/x2 or 4 x SATA 6Gb/s)

USB Ports Onboard: 1 x USB 20G Type-C® front panel port

1 x USB 5G 19Pin header (supports 2 additional USB 5G ports)

1 x USB 2.0 9Pin header (supports 2 additional USB 2.0 ports)

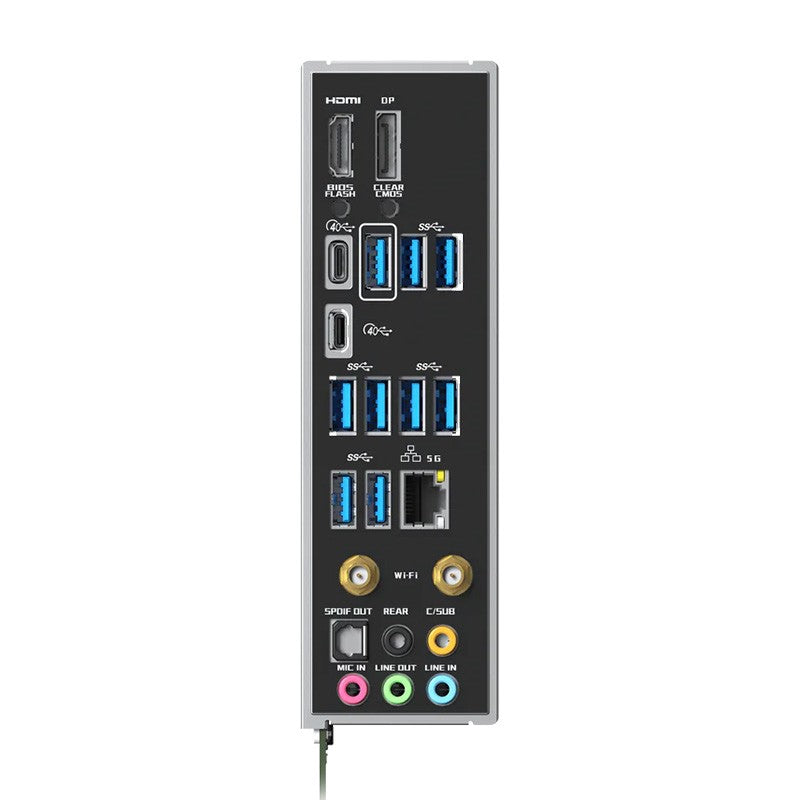

Rear Panel: 2 x USB 40G Type-C® ports (supports up to 15W power output)

9 x USB 10G Type-A ports

Additional Connectors

1 x 24 Pin ATX power connector

2 x 8 Pin +12V power connectors

2 x 3 Pin ARGB headers

1 x 4 Pin NRGB header

1 x COM port header

1 x CLR CMOS reset header

1 x 4 Pin CPU fan header

1 x 4 Pin Pump header (supports DC adjustment)

4 x 4 Pin chassis fan headers

Operating System

Supports Windows 10 64-bit, Windows 11 64-bit, Ubuntu 64-bit
