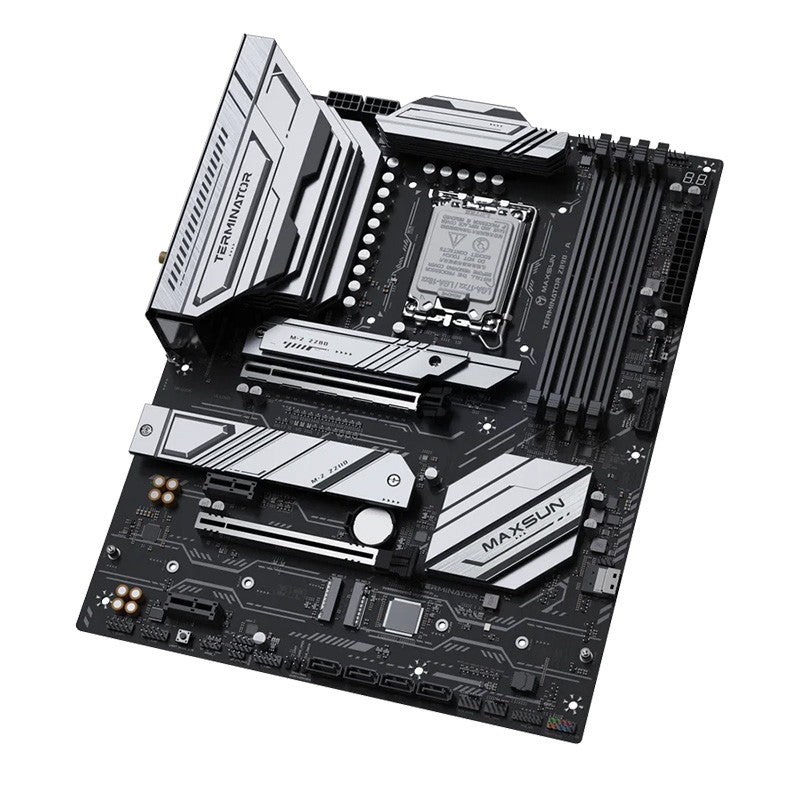

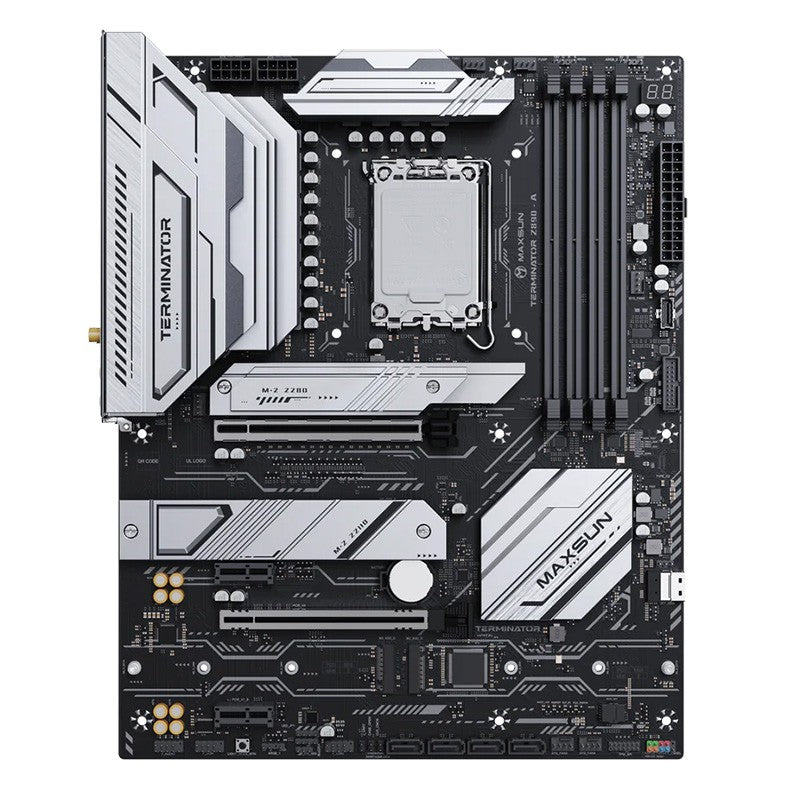

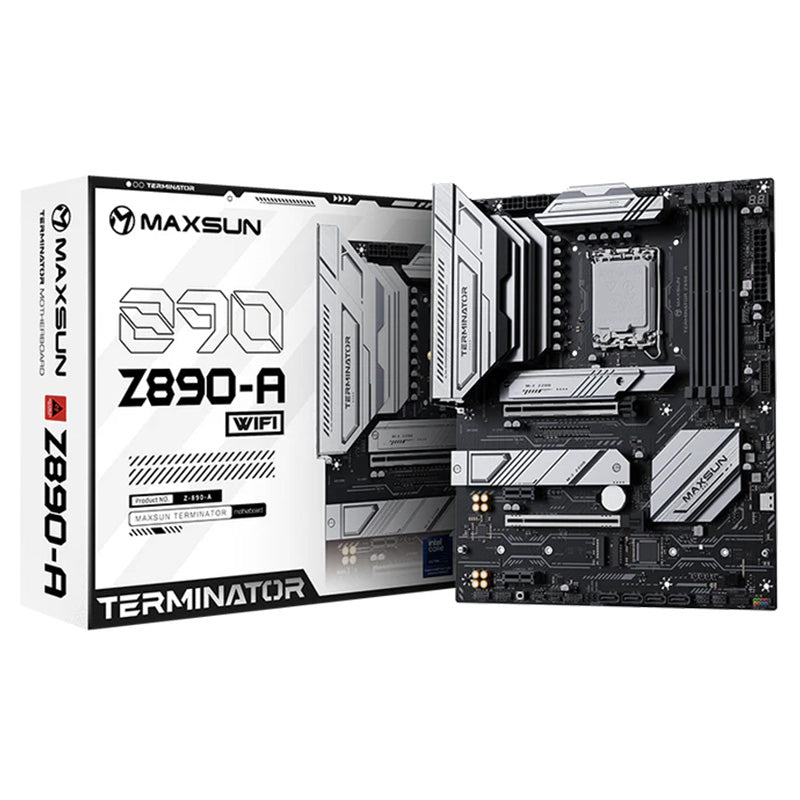

MAXSUN Terminator Z890-A WIFI LGA 1851 ATX Motherboard

CPU Socket

Intel® LGA1851, compatible with Intel® Core™ Ultra processors

Chipset

Intel® Z890 Chipset

Memory

4 × DIMM DDR5 slots, up to 256GB

Dual-channel memory support

Supports XMP frequencies: 4800/ 5600/ 6400/ 7600(OC)/ 8000(OC)/ 8200(OC)/ 8400(OC)/ 8600(OC)/ 8800(OC) MHz

Display

1 × HDMI™ 2.0 (supports up to 4K@60Hz)

1 × DP (supports up to 4K@120Hz)

Expansion Slots

1 × PCIe 5.0 x16 (configurable as x8+x8 or x8+x4+x4)

1 × PCIe x16 (supports PCIe 4.0 x4)

2 × PCIe x1 (supports PCIe 4.0 x1)

Audio

Integrated Realtek ALC897 audio chip

Networking

Integrated Realtek RTL8125D LAN chip

Intel® AX201 wireless module with Wi-Fi 6 and Bluetooth 5.2 support

Storage

1 × M.2 slot (supports PCIe 5.0 x4/x2, 2242/2280)

3 × M.2 slots (supports PCIe 4.0 x4/x2, 2242/2280/22110)

4 × SATA 6Gb/s ports

1 × SFF-8654 4i interface (supports PCIe 4.0 x4/x2 or 4x SATA 6Gb/s)

USB Ports

Onboard USB: 1 × USB 20G Type-C® (front)

1 × USB 5G 19-pin header (supports 2 additional USB 5G ports)

1 × USB 2.0 9-pin header (supports 2 additional USB 2.0 ports)

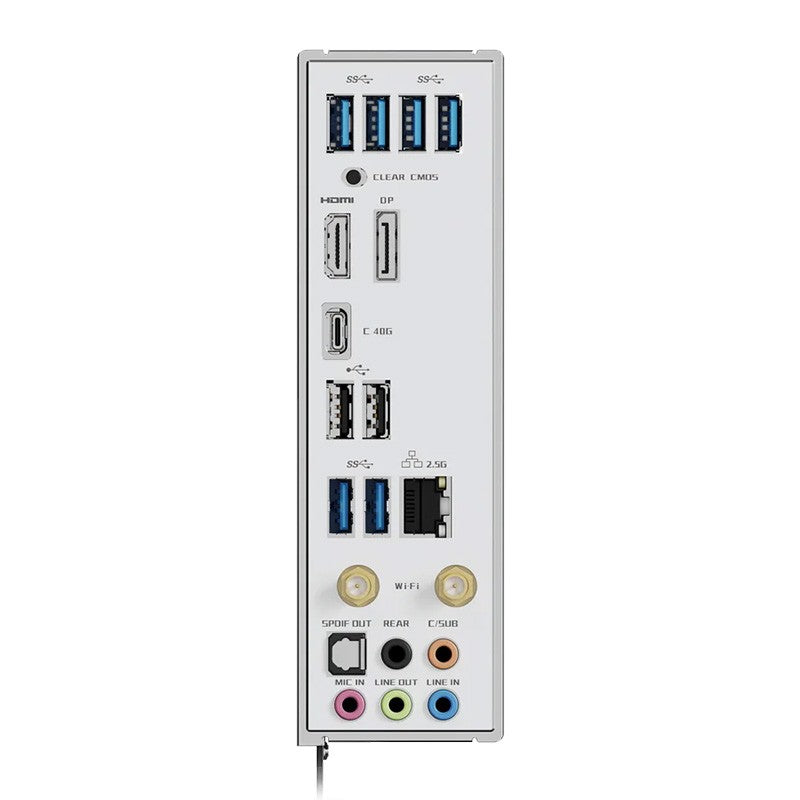

Rear USB: 1 × USB 40G Type-C®

2 × USB 10G Type-A

4 × USB 5G Type-A

2 × USB 2.0 Type-A

Other Features

1 × 24-pin ATX power connector

2 × 8-pin +12V power connectors

2 × 3-pin ARGB headers

1 × 4-pin NRGB header

1 × COM header

1 × CLR CMOS reset header

1 × 4-pin CPU fan header

1 × 4-pin pump fan header (supports DC regulation)

4 × 4-pin chassis fan headers
