Description

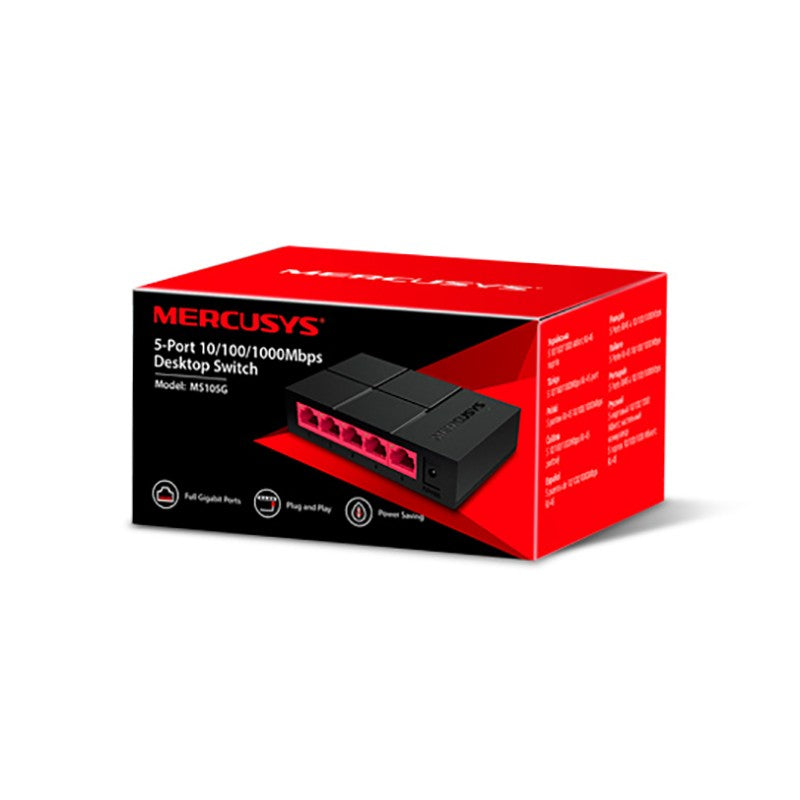

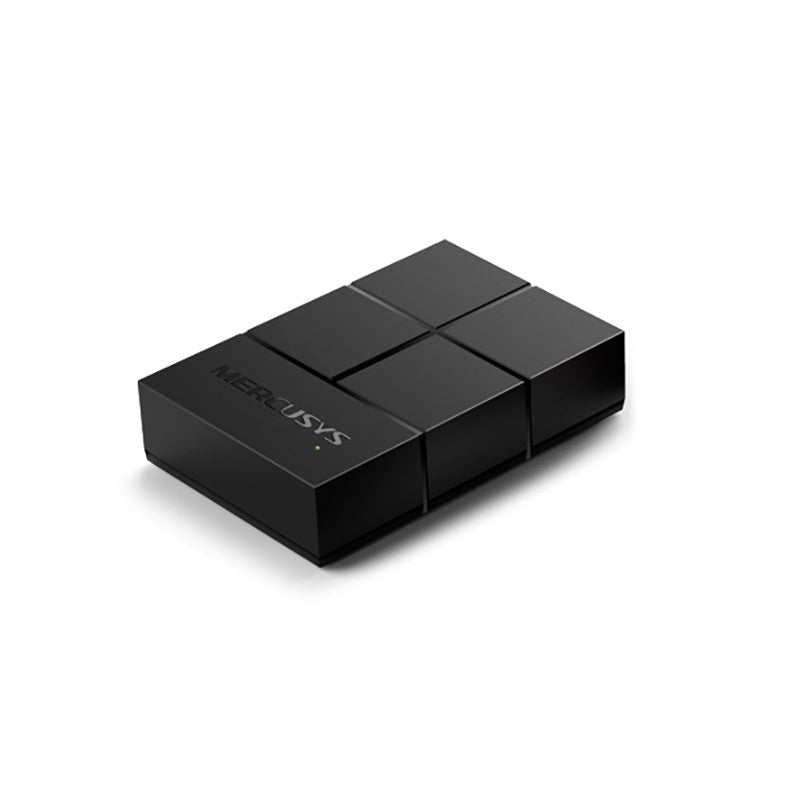

Mercusys 5 Port Gigabit Desktop Switch (MS105G)

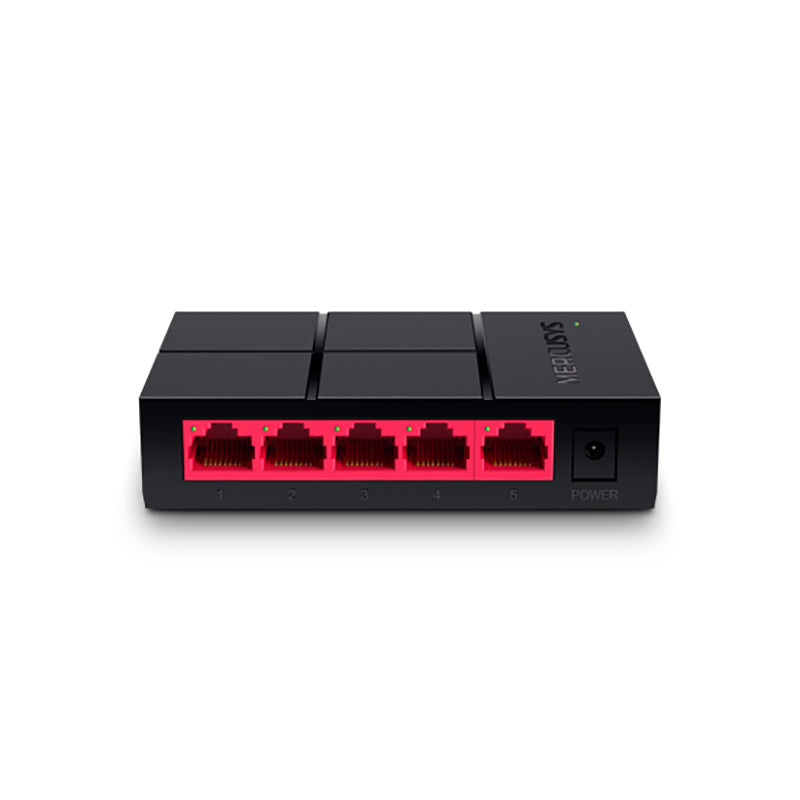

Five 10/100/1,000 Mbps auto-negotiation RJ45 ports with auto MDI / MDIX supported
Easily wired network expansion
Compact design for flexible arrangement
Plug and play setup, no configuration required
Green Ethernet technology saves power by up to 82%
SPECIFICATIONS:
Interfaces |
5 10/100/1000Mbps Ports, |
Auto-Negotiation, Auto-MDI/MDIX | |
LED |
Ethernet Ports (1, 2, 3, 4, 5), Power |
External Power Supply |
5V/0.6A |
Dimensions (W X D X H) |
105×70×24.9 mm |
Standards and Protocols |
IEEE 802.3, IEEE 802.3u, IEEE 802.3x CSMA/CD |
Data Rates |
10/100/1000 Mbps at Half Duplex |
20/200/2000 Mbps at Full Duplex | |
Buffer Capacity |
512 Kbit |
Jumbo Frame |
9 KB |
Transfer Method |
Store and Forward |
Package Contents |
1. 5-Port 10/100/1000Mbps Desktop Switch (MS105G) |
2. Power Adapter | |
3. Quick Installation Guide |
