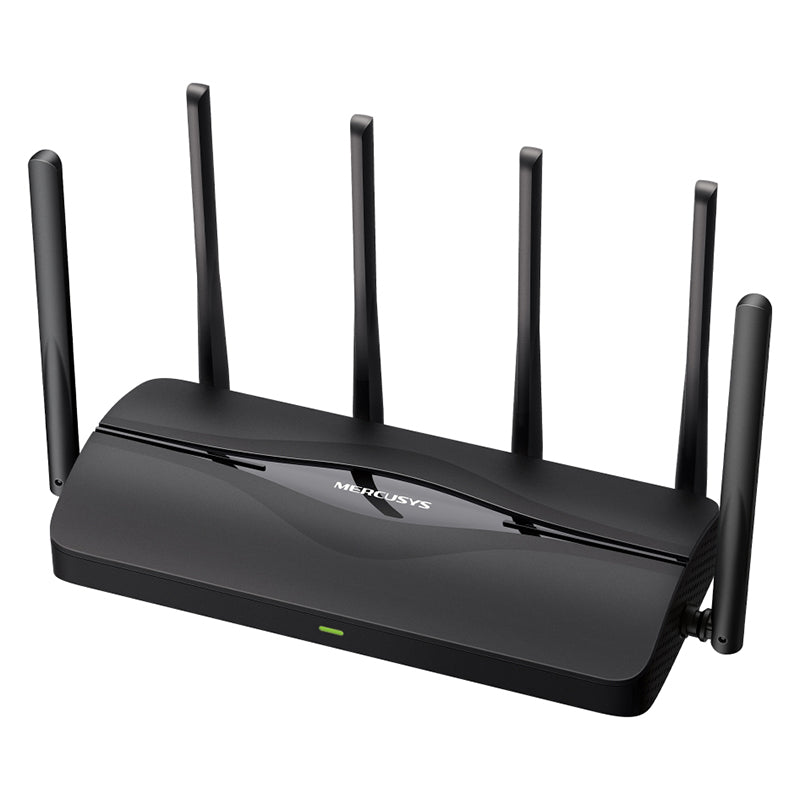

Mercusys BE6500 Dual-Band Wi-Fi 7 Router

Wireless Standards

Compatible with 802.11be/ax/ac/a/b/g/n Wi-Fi standards

Signal Rate

BE6500

• 5 GHz: 5760 Mbps (802.11be)

• 2.4 GHz: 688 Mbps (802.11be)

Wireless Security

WPA-PSK/WPA2-PSK/WPA3-SAE***

Wireless Functions

• Multi-Link Operation (MLO)

• 160 MHz Channel

• 4K-QAM

• Multi-RUs

SOFTWARE

WAN Type

Dynamic IP/Static IP/PPPoE/L2TP/PPTP

Management

Access Control

Local Management

Remote Management

DHCP

Server, DHCP Client List

NAT Forwarding

Port Forwarding, Port Triggering, UPnP, DMZ

Firewall Security

SPI Firewall, IP and MAC Address Binding

Guest Network

2.4 GHz Guest Network

5 GHz Guest Network

VPN Sever

OpenVPN/PPTP/L2TP/ WireGuard VPN Server and Clients

HARDWARE

Dimensions (W X D X H)

10.2 × 4.7 × 1.7 in

(258 × 119 × 43.3 mm)

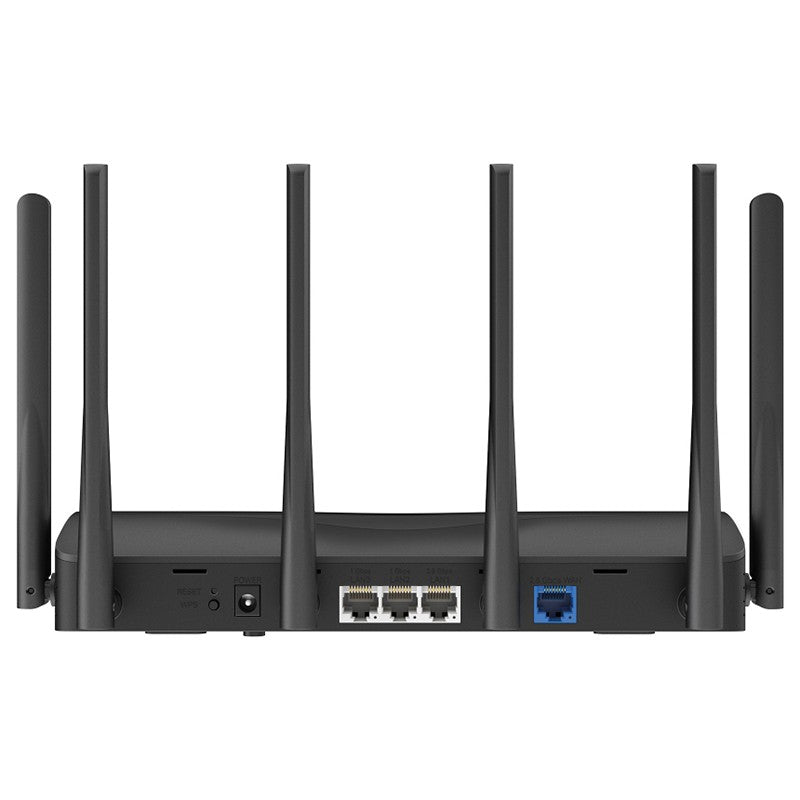

Interfaces

1× 2.5 Gbps WAN Port + 1× 2.5 Gbps LAN Port + 2× 1 Gbps LAN Ports

Button

WPS、Reset Button

Antenna Type

6× Fixed Omni-Directional Antennas

OTHERS

Package Contents

BE6500 Dual-Band Wi-Fi 7 Router MR37BE

Power Adapter

Quick Installation Guide

RJ45 Ethernet Cable

Environment

Operating Temperature: 0°C~40°C (32°F~104°F)

Operating Humidity: 10%~90% Non-Condensing

Storage Humidity: 5%~90% Non-Condensing
