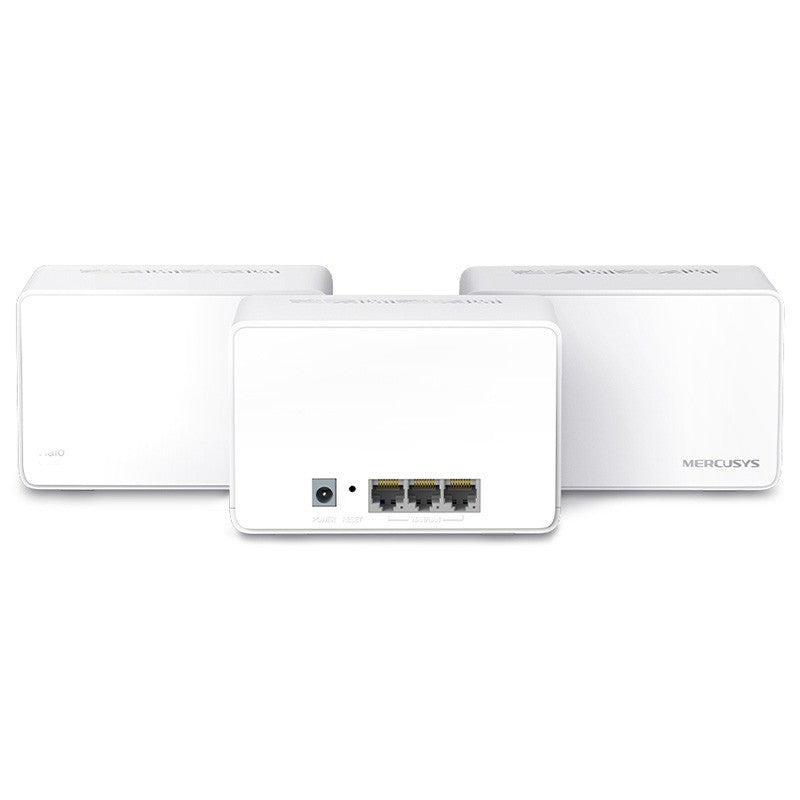

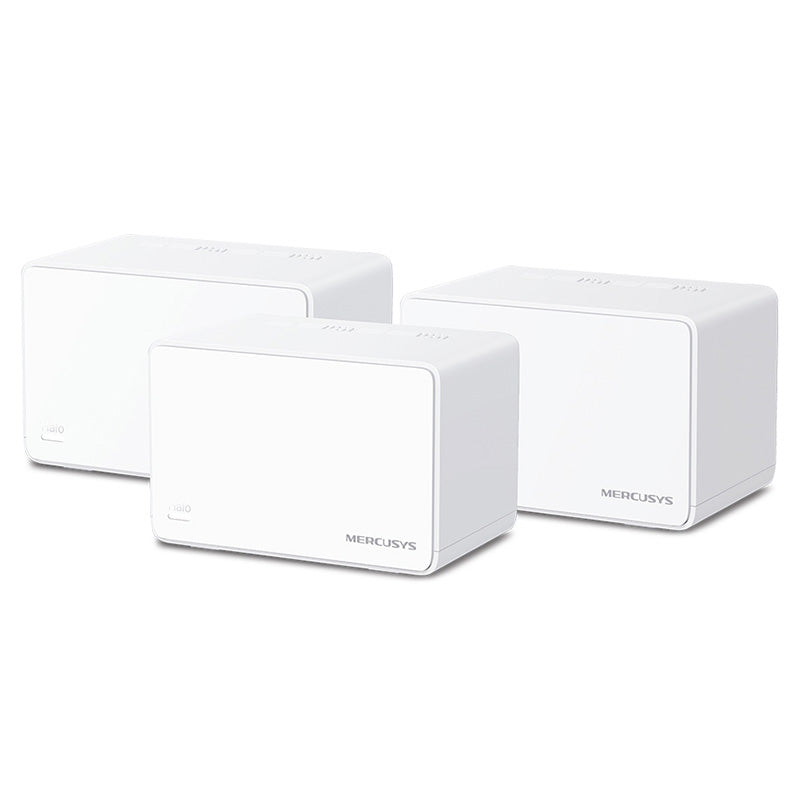

Mercusys Halo H80X AX3000 Whole Home Mesh WiFi System - 3 Pack

Wireless Standards

Wi-Fi 6

IEEE 802.11ax/ac/n/a 5 GHz

IEEE 802.11ax/n/b/g 2.4 GHz

Signal Rate

2402 Mbps on 5 GHz, 574 Mbps on 2.4 GHz

Reception Sensitivity

2.4GHz:

11g 6Mbps:-96.5dBm

11g 54Mbps:-78dBm

11AX HE20 MCS0:-96.5dBm

11AX HE20 MCS11:-65dBm

11AX HE40 MCS0:-93.5dBm

11AX HE40 MCS11:-63dBm

5GHz:

11a 6Mbps:-96dBm

11a 54Mbps:-78dBm

11ac VHT20 MCS8:-74.5dBm

11ac VHT40 MCS9:-70.5dBm

11ac VHT80 MCS9:-66.5dBm

11AX HE20 MCS11:-66dBm

11AX HE40 MCS11:-63dBm

11AX HE80 MCS11:-61dBm

Transmission Power

2.4 GHz < 20dBm (EIRP)

5 GHz < 23dBm (EIRP)

Wireless Security

WPA-PSK/WPA2-PSK/WPA3

Mesh protocol

802.11k/v/r

SOFTWARE

Operation Modes

Router, Access Point

Quality of Service

WMM

WAN Type

Dynamic IP/Static IP/PPPoE/L2TP/PPTP

Management

Local Management, Remote Management, Multi-Managers

DHCP

Server, Client

Firewall Security

SPI Firewall

Protocols

Supports IPv4 and IPv6

Guest Network

2.4 GHz Guest Network,

5 GHz Guest Network

HARDWARE

Dimensions (W X D X H)

5 × 3.2 × 3.3 in (128 × 81 × 83.7 mm)

Interfaces

3× Gigabit Ports per Halo Unit

(WAN/LAN auto-sensing)

Button

Reset button

OTHERS

Package Contents

3× Halo H80X Units

1× RJ45 Ethernet Cable

3× Power Adapters

Quick Installation Guide

Environment

Operating Temperature: 0°C~40°C   (32°F~104°F)

Operating Humidity: 10%~90% Non-Condensing

Storage Humidity: 5%~90% Non-Condensing

Notes

Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput, wireless coverage, and quantity of connected devices are not guaranteed and will vary as a result of network conditions, client limitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and client location.
Seamless roaming requires clients to support 802.11k/v/r and may require additional setup. Performance may vary depending on the client's device.
△Use of Wi-Fi 6 and other features including OFDMA, MU-MIMO, 1024-QAM, HE160, and BSS Color requires clients to also support the corresponding features. The 160 MHz bandwidth may be unavailable in the 5 GHz band in some regions/countries due to regulatory restrictions. This product may not support all the mandatory features of IEEE 802.11ax specifications. Further software upgrades for feature availability may be required.
*Please note that the Halo H series and S series cannot work together. Halo H80X is compatible with other units from the Halo H series to form a Mesh network.

**All WAN/L AN ports will operate as either WAN or LAN ports. Only one port can serve as a WAN port at a time.
