Description
SPECIFICATIONS:
WIRELESS |
|
Wireless Standards |
Wi-Fi 6 IEEE 802.11ax/ac/n/a 5 GHz IEEE 802.11ax/n/b/g 2.4 GHz |
Signal Rate |
4804 Mbps on 5 GHz, 1148 Mbps on 2.4 GHz |
Reception Sensitivity |
2.4GHz: 11g 6Mbps:-96dBm 11g 54Mbps:-78dBm 11ax HE20 MCS11:-66dBm 11ax HE40 MCS11:-62.5dBm 5GHz: 11a 6Mbps:-94.5dBm 11a 54Mbps:-77dBm 11ac VHT20 MCS8:-72.5dBm 11ax HE80 MCS11:-59dBm 11ax HE160 MCS11:-55dBm |
Transmission Power |
2.4 GHz < 20dBm (EIRP) 5 GHz < 23dBm (EIRP) |
Wireless Security |
WPA-PSK/WPA2-PSK/WPA3 |
Mesh protocol |
802.11k/v/r |
SOFTWARE |
|
Operation Modes |
Router, Access Point |
Quality of Service |
WMM |
WAN Type |
Dynamic IP/Static IP/PPPoE/L2TP/PPTP |
Management |
Local Management, Remote Management, Multi-Managers |
DHCP |
Server, Client |
Firewall Security |
SPI Firewall |
Protocols |
Supports IPv4 and IPv6 |
Guest Network |
2.4 GHz Guest Network, 5 GHz Guest Network |
HARDWARE |
|
Dimensions (W X D X H) |
5.9 × 3.7 × 3.4 in(150 × 94 × 86.7 mm)) |
Interfaces |

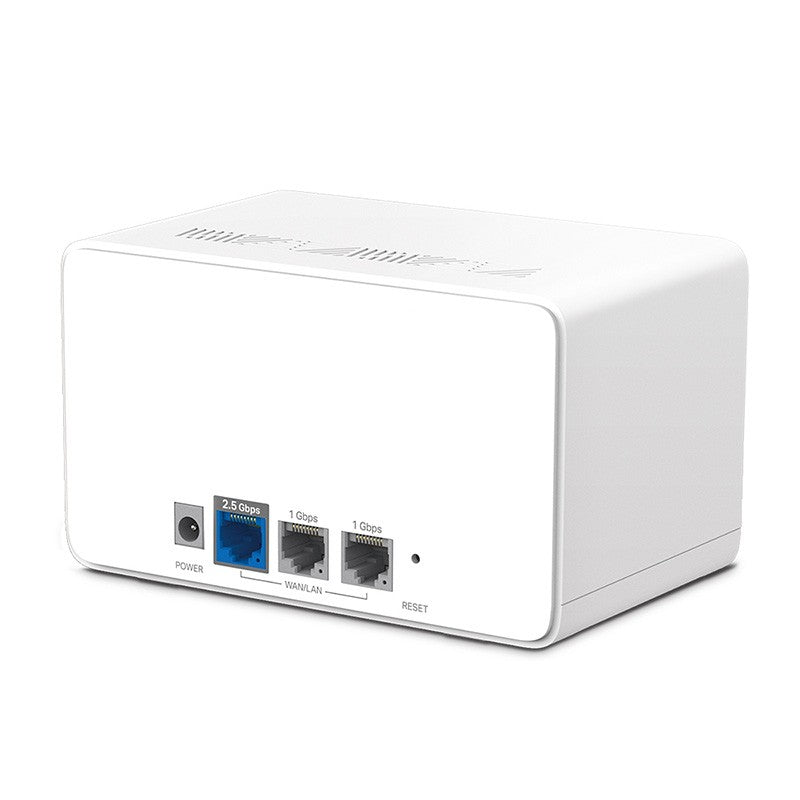

1× 2.5 Gbps Port + 2× Gigabit Ports (WAN/LAN auto-sensing) |
Button |
Reset button |
OTHERS |
|
Package Contents |

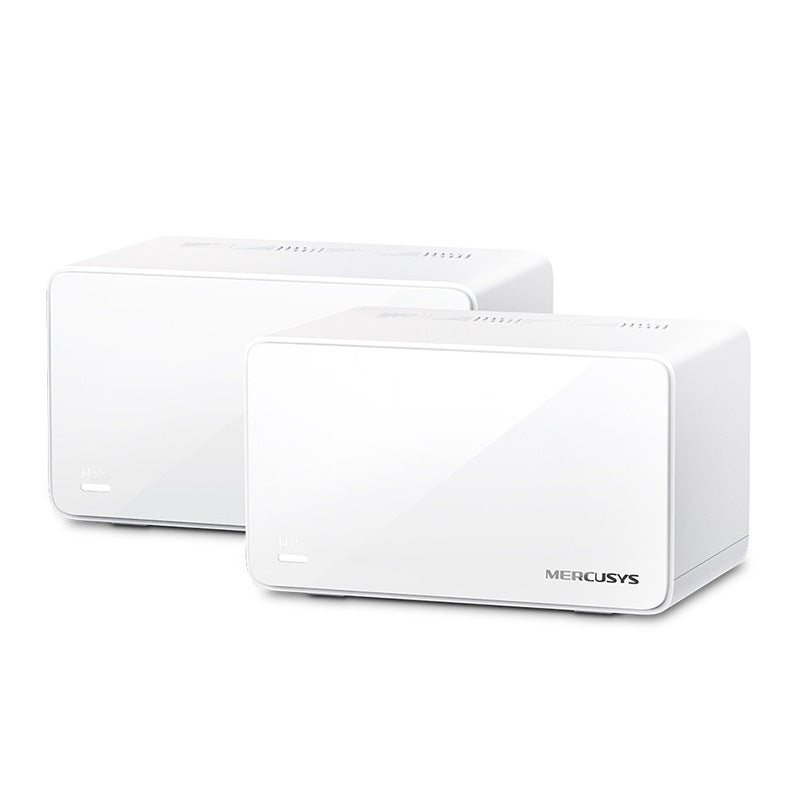

2× Halo H90X Units 1× RJ45 Ethernet Cable 2× Power Adapters Quick Installation Guide |
Environment |
Operating Temperature: 0°C~40°C (32°F~104°F) Operating Humidity: 10%~90% Non-Condensing Storage Humidity: 5%~90% Non-Condensing |
Notes |
Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage, and quantity of connected devices are not guaranteed and will vary as a result of network conditions, client limitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and client location. Seamless roaming requires clients to support 802.11k/v/r and may require additional set up. Performance may vary depending on the client device. △Use of Wi-Fi 6 and other features including OFDMA, MU-MIMO, 1024-QAM, HE160, BSS Color require clients to also support the corresponding features. The 160 MHz bandwidth may be unavailable in the 5 GHz band in some regions/countries due to regulatory restrictions. This product may not support all the mandatory features of IEEE 802.11AX specifications. Further software upgrades for feature availability may be required. §Use of WPA3 requires clients to also support WPA3. *Please note that the Halo H series and S series cannot work together. Halo H90X is compatible with other units from the Halo H series to form a Mesh network. **All WAN/LAN ports will operate as either WAN or LAN ports. 2.5 Gbps internet speeds require compatible service plans and equipment. 2.5 Gbps and Gigabit ports cannot be concurrently configured as WAN ports. |
