Mercusys Halo H90X AX6000 Whole Home Mesh WiFi 6 System - 3 Pack

Wireless Standards

Wi-Fi 6

IEEE 802.11ax/ac/n/a 5 GHz

IEEE 802.11ax/n/b/g 2.4 GHz

Signal Rate

4804 Mbps on 5 GHz, 1148 Mbps on 2.4 GHz

Reception Sensitivity

2.4GHz:

11g 6Mbps:-96dBm

11g 54Mbps:-78dBm

11ax HE20 MCS11:-66dBm

11ax HE40 MCS11:-62.5dBm

5GHz:

11a 6Mbps:-94.5dBm

11a 54Mbps:-77dBm

11ac VHT20 MCS8:-72.5dBm

11ax HE80 MCS11:-59dBm

11ax HE160 MCS11:-55dBm

Transmission Power

2.4 GHz < 20dBm (EIRP)

5 GHz < 23dBm (EIRP)

Wireless Security

WPA-PSK/WPA2-PSK/WPA3

Mesh protocol

802.11k/v/r

SOFTWARE

Operation Modes

Router, Access Point

Quality of Service

WMM

WAN Type

Dynamic IP/Static IP/PPPoE/L2TP/PPTP

Management

Local Management, Remote Management, Multi-Managers

DHCP

Server, Client

Firewall Security

SPI Firewall

Protocols

Supports IPv4 and IPv6

Guest Network

2.4 GHz Guest Network,

5 GHz Guest Network

HARDWARE

Dimensions (W X D X H)

5.9 × 3.7 × 3.4 in(150 × 94 × 86.7 mm))

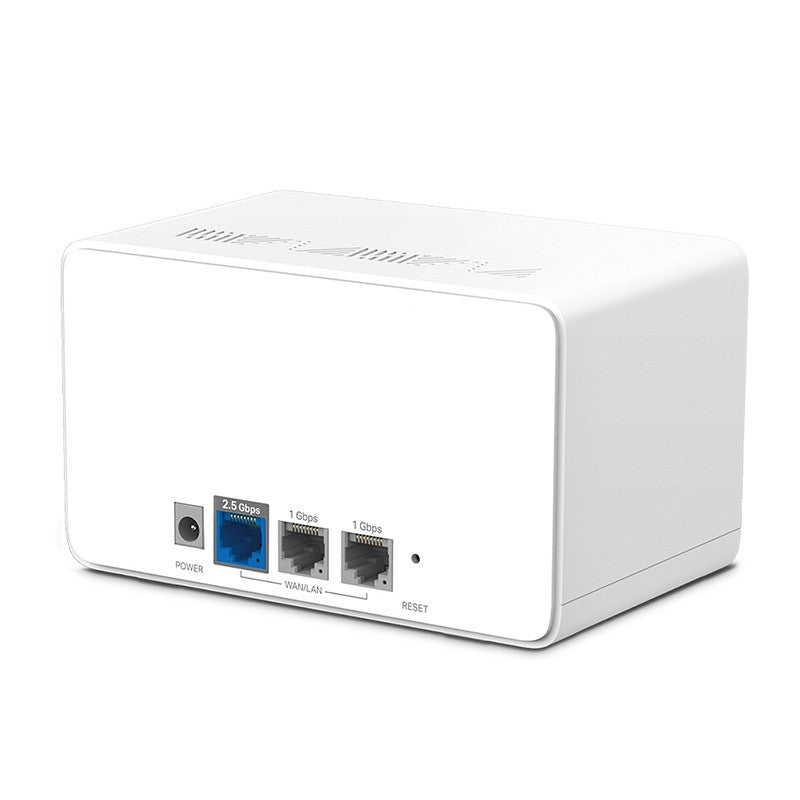

Interfaces

1× 2.5 Gbps Port + 2× Gigabit Ports (WAN/LAN auto-sensing)

Button

Reset button

OTHERS

Package Contents

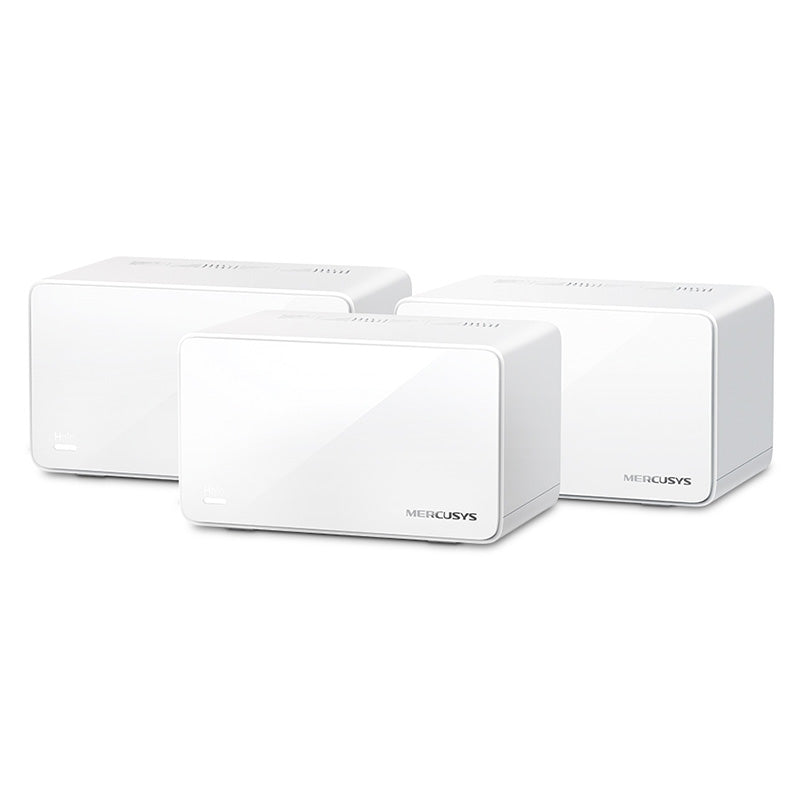

3× Halo H90X Units

1× RJ45 Ethernet Cable

3× Power Adapters

Quick Installation Guide

Environment

Operating Temperature: 0°C~40°C (32°F~104°F)

Operating Humidity: 10%~90% Non-Condensing

Storage Humidity: 5%~90% Non-Condensing

Notes

Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage, and quantity of connected devices are not guaranteed and will vary as a result of network conditions, client limitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and client location.

Seamless roaming requires clients to support 802.11k/v/r and may require additional set up. Performance may vary depending on the client device.

△Use of Wi-Fi 6 and other features including OFDMA, MU-MIMO, 1024-QAM, HE160, BSS Color require clients to also support the corresponding features. The 160 MHz bandwidth may be unavailable in the 5 GHz band in some regions/countries due to regulatory restrictions. This product may not support all the mandatory features of IEEE 802.11AX specifications. Further software upgrades for feature availability may be required.

§Use of WPA3 requires clients to also support WPA3.

*Please note that the Halo H series and S series cannot work together. Halo H90X is compatible with other units from the Halo H series to form a Mesh network.

**All WAN/LAN ports will operate as either WAN or LAN ports. 2.5 Gbps internet speeds require compatible service plans and equipment. 2.5 Gbps and Gigabit ports cannot be concurrently configured as WAN ports.
