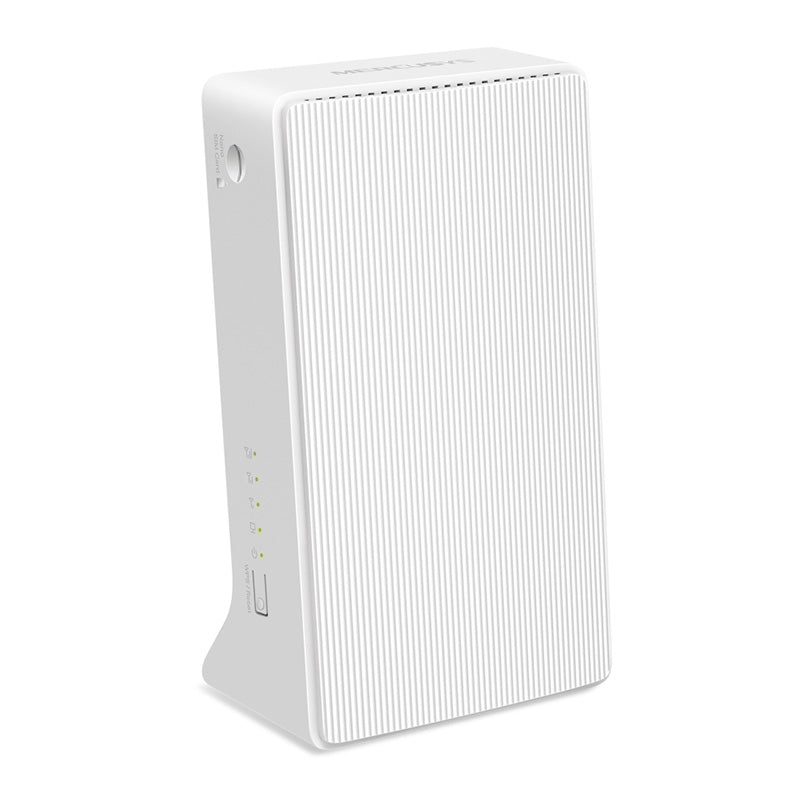

Product Name: Mercusys MB110-4G 300 Mbps Wireless N 4G LTE Router
Model Number: MB110-4G
Brand: Mercusys
Manufacturer Warranty: 2 Year
Please Check Modem/Router Compatibility with your Service Providers Before Purchasing
WIRELESS
Wireless Standards
IEEE 802.11b/g/n
Frequency
2.4 GHz
Signal Rate
300 Mbps
Reception Sensitivity
11g 54M: -74 dBm
11n HT20: -71 dBm
11n HT40: -68 dBm
Transmission Power
< 20 dBm (2.4 GHz)
Wireless Security
WPA-PSK / WPA2-PSK
Wireless Functions
Enable/Disable Wireless Radio, Wireless Schedule, WMM, Wireless
Statistics
SOFTWARE
DHCP
Server
HARDWARE
Dimensions (W X D X H)
90×92×150.5 mm

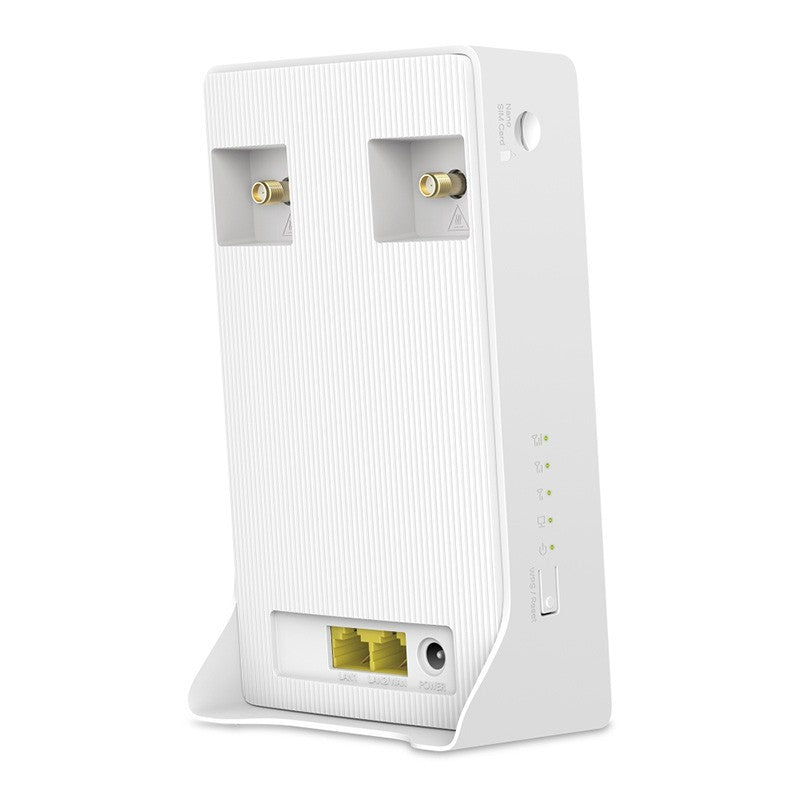

Interfaces
1× 10/100Mbps LAN/WAN Port
1× 10/100Mbps LAN Port
2× 4G/3G External Antenna Ports
1× Nano SIM Card Slot
Button
WPS/Reset Button
Ethernet Ports
1× 10/100 Mbps LAN/WAN Port +
1× 10/100 Mbps LAN
Network Type
EU:
FDD-LTE: B1/B3/B5/B7/B8/B20/B28 (2100/1800/850/2600/900/800/700 MHz)
TDD-LTE: B38/B40 (2600/2300 MHz)
HSPA+/UMTS: B1/B5/B8 (2100/850/900 MHz)
UN:
FDD-LTE: B1/B2/B3/B4/B5/B7/B8/B28/B66 (2100/1900/1800/1700/850/2600/900/700/1700 MHz)
TDD-LTE: B40 (2300 MHz)
HSPA+/UMTS: B1/B2/B4/B5/B8 (2100/1900/1700/850/900 MHz)
OTHERS
Package Contents
300 Mbps Wireless N 4G LTE Router (MB110-4G)
Power Adapter
RJ45 Ethernet Cable
Quick Installation Guide
Environment
Operating Temperature: 0°C~40°C (32°F~104°F)
Storage Temperature: -40°C~70°C (-40°F~158°F)
Operating Humidity: 10%~90% Non-Condensing
Storage Humidity: 5%~90% Non-Condensing
Notes
*Actual network speed may be limited by the rate of the product's Ethernet WAN or LAN port, the rate supported by the network cable, Internet service provider factors and other environmental conditions.
