Description
SPECIFICATIONS:
WIRELESS |
|
Wireless Standards |
IEEE 802.11ac/a/b/g/n |
Frequency |
5 GHz, 2.4 GHz |
WiFi Speeds |
867 Mbps at 5 GHz 300 Mbps at 2.4 GHz |
Reception Sensitivity |
11g 6Mbps: -95dBm 11g 54Mbps: -77dBm 11n HT20 MCS7: -74dBm 11n HT40 MCS7: -71dBm 11a 6Mbps: -92dBm 11a 54Mbps: -75dBm 11ac VHT20 MCS8: -70dBm 11ac VHT40 MCS9: -65dBm 11ac VHT80 MCS9: -61dBm |
Transmission Power |
2.4 GHz < 20dBm (EIRP) 5 GHz < 23dBm (EIRP) |
Wireless Security |
WPA-PSK / WPA2-PSK |
Wireless Functions |
Enable/Disable Wireless Radio, Wireless Schedule, WMM, Wireless Statistics |
HARDWARE |
|
Dimensions |
95×61.05×165.97 mm |
Interfaces |

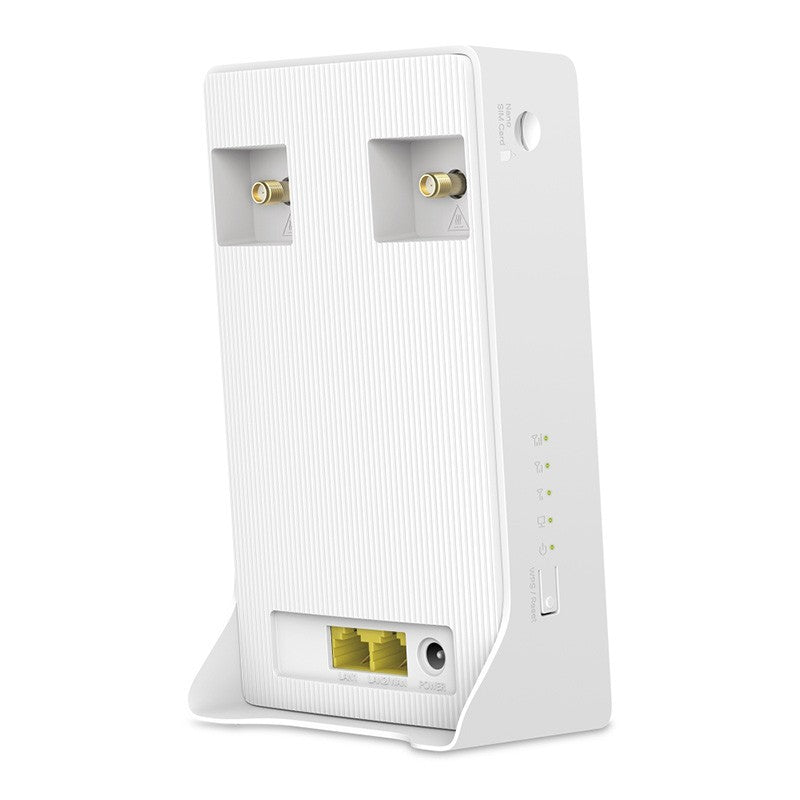

1× 10/100Mbps LAN/WAN Port 1× 10/100Mbps LAN Port 2× 4G/3G External Antenna Ports 1× Nano SIM Card Slot |
Button |
WPS/Reset Button |
Ethernet Ports |
1× 10/100 Mbps LAN/WAN Port + 1× 10/100 Mbps LAN |
Network Type |
EU: FDD-LTE: B1/B3/B5/B7/B8/B20/B28 (2100/1800/850/2600/900/800/700 MHz) TDD-LTE: B38/B40 (2600/2300 MHz) HSPA+/UMTS: B1/B5/B8 (2100/850/900 MHz) |
SOFTWARE |
|
DHCP |
Server |
OTHERS |
|
Package Contents |
AC1200 Wireless Dual Band 4G LTE Router (MB130-4G) Power Adapter RJ45 Ethernet Cable Quick Installation Guide |
Environment |
Operating Temperature: 0°C~40°C (32°F~104°F) Storage Temperature: -40°C~60°C (-40°F~140°F) Operating Humidity: 10%~90% Non-Condensing Storage Humidity: 5%~90% Non-Condensing |
