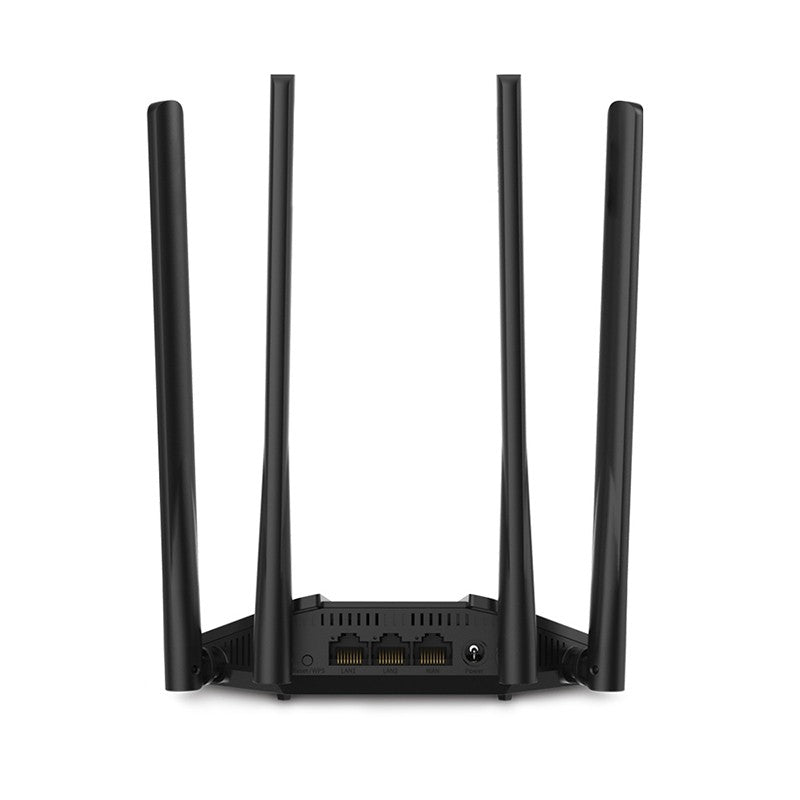

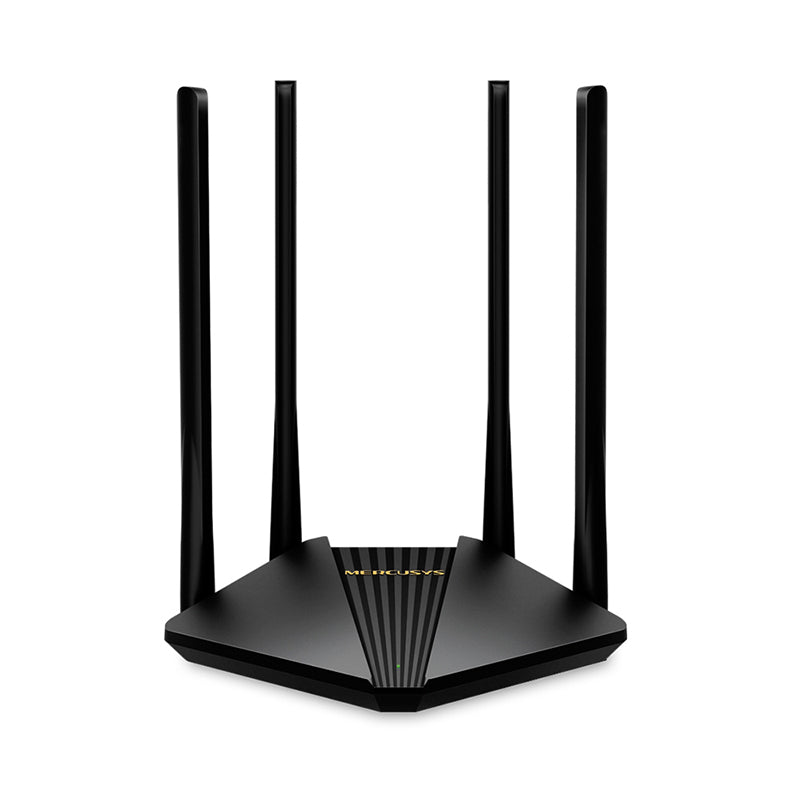

Mercusys MR30G AC1200 Wireless Dual Band Gigabit Router

Wireless Standards

IEEE 802.11ac/n/a 5   GHz, IEEE 802.11b/g/n 2.4 GHz

 Frequency

2.4 GHz, 5 GHz

 Signal Rate

867 Mbps (5 GHz) + 300   Mbps (2.4 GHz), compatible with 11ac/a/b/g/n Wi-Fi standards

 Reception Sensitivity

11g 6Mbps: -96dBm

11g 54Mbps: -78dBm

11n HT40 MCS7: -74dBm

11n HT20 MCS7: -71dBm

11a 6Mbps: -97dBm

11a 54Mbps: -79dBm

11ac VHT20 MCS8: -74dBm

11ac VHT40 MCS9: -70dBm

11ac VHT80 MCS9: -65dBm

Transmission Power

2.4 GHz < 20dBm   (EIRP) 5 GHz < 23dBm (EIRP)

 Wireless Security

WPA-PSK / WPA2-PSK

Software

Operation Modes

Router Mode, Access   Point Mode

 WAN Type

Dynamic IP/Static   IP/PPPoE/L2TP/PPTP

 Management

Access Control Local   Management Remote Management

 DHCP

Server, DHCP Client   List

 NAT Forwarding

Port Forwarding, Port   Triggering, UPnP, DMZ

 Firewall Security

SPI Firewall, IP and   MAC Address Binding

 Guest Network

2.4 GHz Guest Network,   5 GHz Guest Network

Hardware

Dimensions (W X D X H)

6.3 × 5.0 × 1.5 in   (159.7 × 125.9 × 37.1 mm)

 Interfaces

1× Gigabit WAN Port +   2× Gigabit LAN Ports

 Button

WPS/Reset Button

 Antenna Type

4× 5 dBi Fixed   Omni-Directional Antennas

Others

Package Contents

AC1200 Wireless Dual   Band Gigabit Router (MR30G)

Power Adapter

Quick Installation   Guide

RJ45 Ethernet Cable

Environment

Operating Temperature:   0°C~40°C (32°F~104°F)

Operating Humidity:   10%~90% Non-Condensing

Storage Humidity:   5%~90% Non-Condensing
