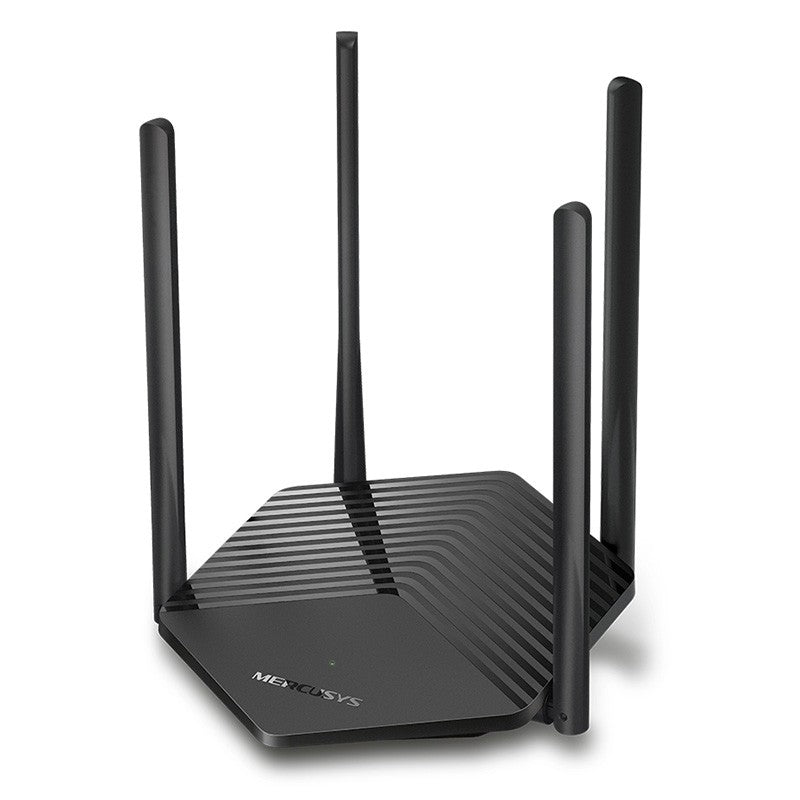

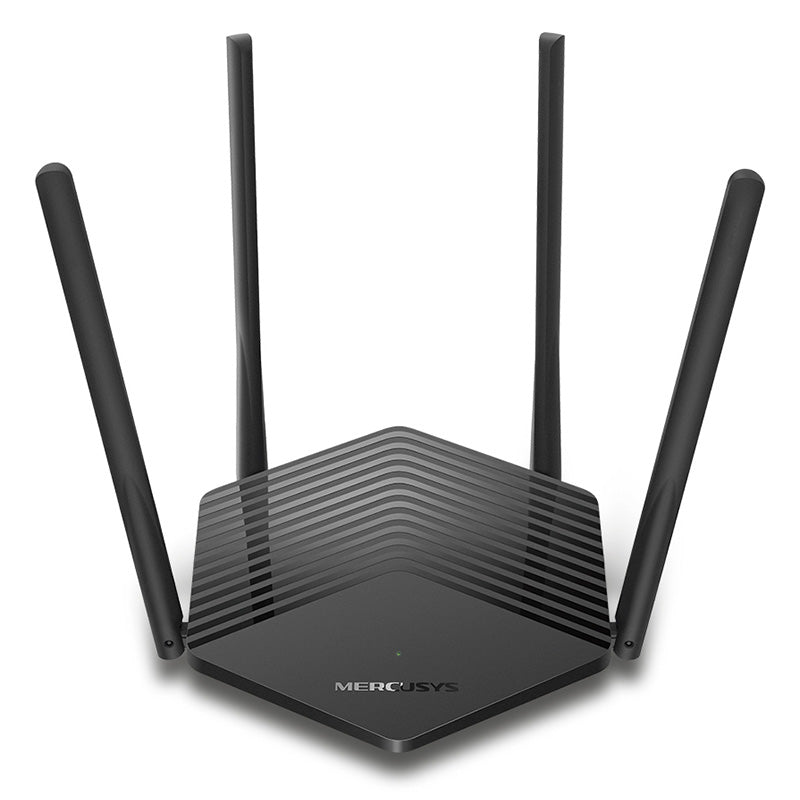

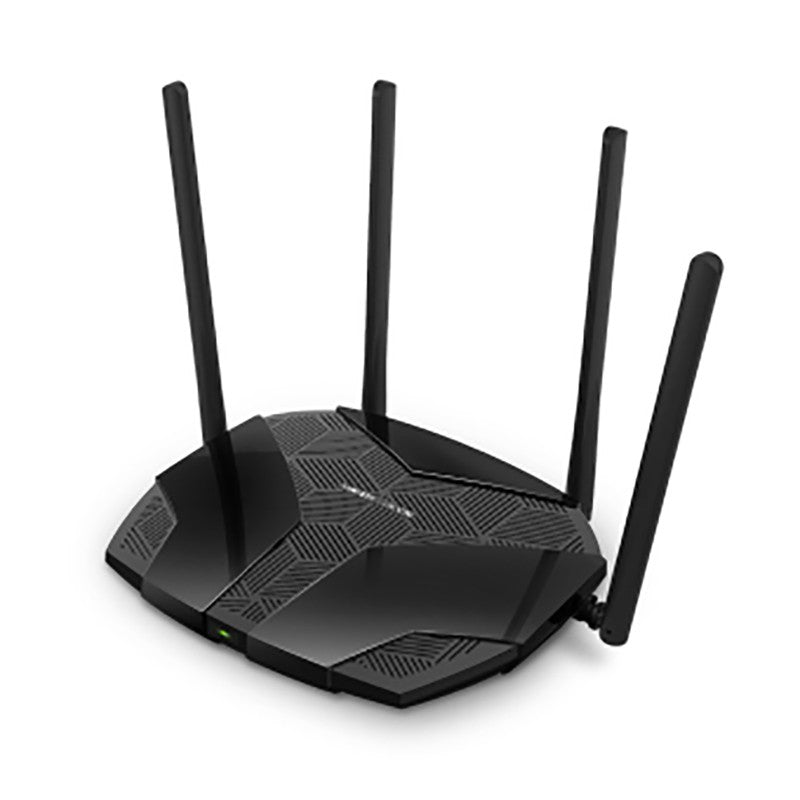

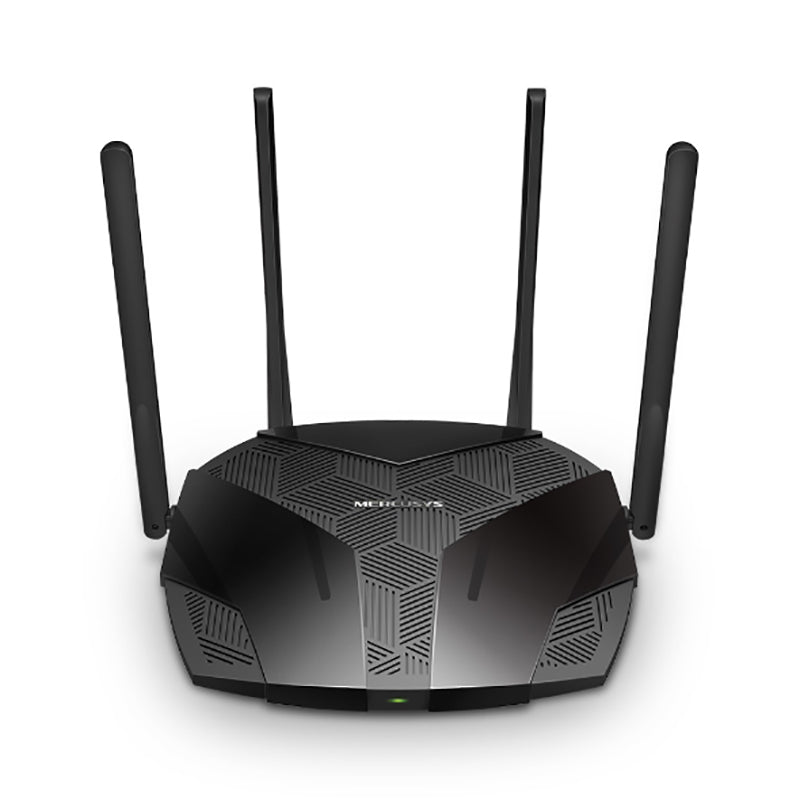

Mercusys MR60X AX1500 WiFi 6 Router

Wireless Standards

Compatible with 802.11ax/ac/a/b/g/n Wi-Fi standards

Signal Rate

1201 Mbps (5 GHz) + 300 Mbps (2.4 GHz)

Reception Sensitivity

11g 6Mbps: -97dBm

11g 54Mbps: -79dBm

11n HT40 MCS7:-74dBm

11n HT20 MCS7:-78dBm

11a 6Mbps:-94dBm

11a 54Mbps:-78dBm

11ac VHT20 MCS8:-74dBm

11ac VHT40 MCS8:-70dBm

11ac VHT80 MCS8:-65dBm

Wireless Security

WPA / WPA2-Personal

WPA2 / WPA3-Personal

Wireless Functions

Enable/Disable Wireless Radio, WMM

SOFTWARE

WAN Type

Dynamic IP/Static IP/PPPoE/L2TP/PPTP

Management

Access Control

Local Management

Remote Management

DHCP

Server, DHCP Client List

NAT Forwarding

Port Forwarding, Port Triggering, UPnP,   DMZ

Firewall Security

SPI Firewall, IP and MAC Address Binding

Guest Network

2.4 GHz Guest Network, 5 GHz Guest Network

HARDWARE

Dimensions (W X D X H)

6.9 × 6.2 × 1.8 in (175.6 × 157.2 × 45 mm)

Interfaces

1× Gigabit WAN Port + 2× Gigabit LAN Ports

Button

Reset/WPS Button

Antenna Type

4× 5 dBi Fixed Omni-Directional Antennas

OTHERS

Package Contents

AX1500 Wi-Fi 6 Router MR60X

Power Adapter

Quick Installation Guide

RJ45 Ethernet Cable

Environment

Operating Temperature: 0°C~40°C   (32°F~104°F)

Operating Humidity: 10%~90% Non-Condensing

Storage Humidity: 5%~90% Non-Condensing

Notes

Maximum wireless signal rates are the physical rates derived from IEEE Standard   802.11 specifications. Actual wireless data throughput and wireless coverage are not guaranteed and will vary as a result of 1) environmental factors, including building materials, physical objects, and obstacles, 2) network conditions, including local interference, volume and density of traffic, product location, network complexity, and network overhead, and 3) client limitations, including rated performance, location, connection, quality, and client condition.
Use of 802.11 ax (Wi-FL6), and features including OFDMA, MU-MIMO, 1024-QAM, BSS Color, and Target Wake Time(TWT) requires clients to also support the corresponding features, Actual power reduction by Target Wake Time may vary as a result of network conditions, client limitations, and   environmental factors. This router may not support all the mandatory features as ratified in Draft 3.0 of IEEE 802.11AX specifications. Further software upgrades for feature availability may be required.
§The 802.11ax white paper defines standardized modifications to both the IEEE 802.11 physical layers (PHY) and the IEEE 802.11 Medium Access Control (MAC) layer as enabling at least one mode of operation capable of supporting improvement of at least four times the average throughput per station (measured at the MAC data service access point) in a dense deployment scenario.
△Use of WPA3 requires clients to also support WPA3.
Actual network speed may be limited by the rate of the product's Ethernet WAN or LAN port, the rate supported by the network cable, Internet service provider factors and other environmental conditions.
