Description
SPECIFICATIONS:
Efficiency rating |
80 PLUS Gold (up to 90%) |
Modular |
Yes (full modular) |

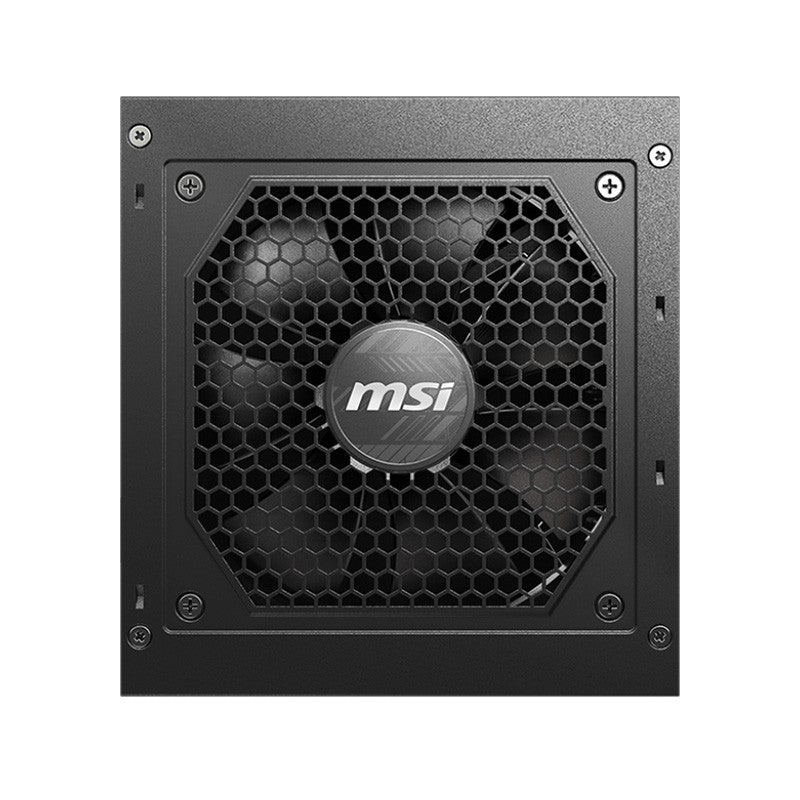

Fan size |
120 mm |
Fan bearing |
Fluid Dynamic Bearing |
Dimensions (DXWXH) |
140 x 150 x 86 mm |
PFC type |
Active PFC |
Input voltage range |
100~240 VAC |
Power watt |
750W |
Power excursion |
1500W (*up to 200% of the PSU's rated power for 100μs) |
Input frequency range |
47-63Hz |
Protection |
OCP / OVP / OPP / OTP / SCP / UVP |

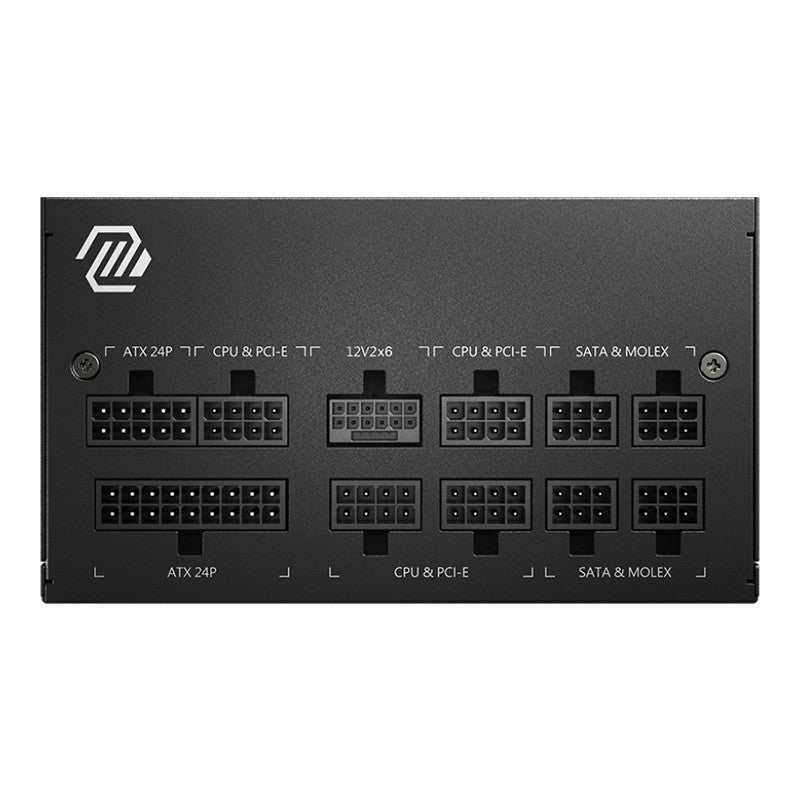

ATX (24 PIN) |
1 |
EPS (4+4 PIN) |
2 |
PCI-E 5.0 (16 PIN) |
1 (450W) |
PCI-E (6+2 PIN) |
3 |
SATA (15 PIN) |
8 |
MOLEX (4 PIN) |
4 |
FDD (4 PIN) |
1 |
