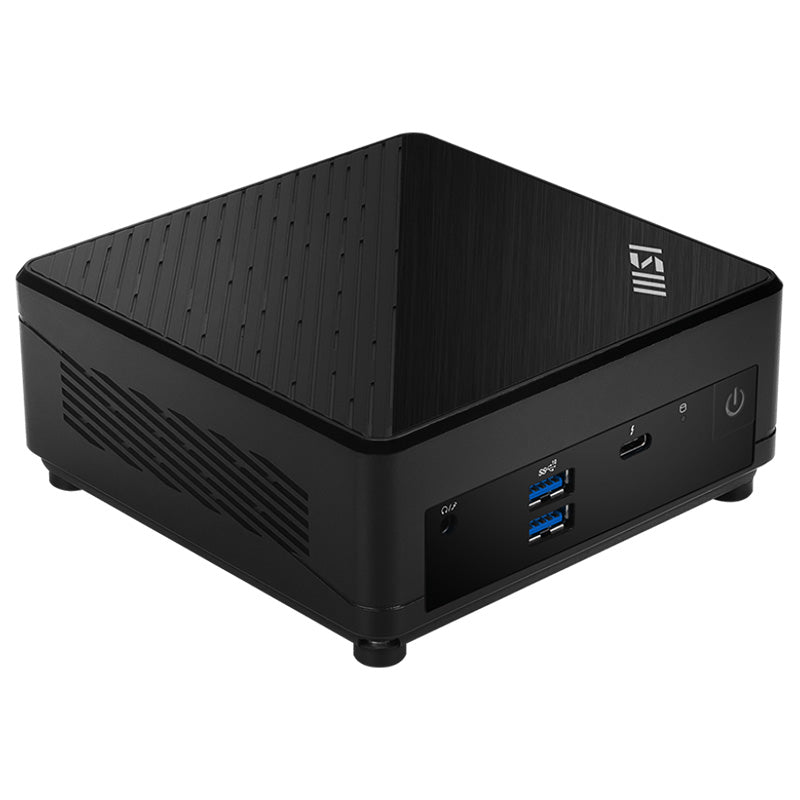

MSI Cubi 5 12M i5-1235U Barebone Mini PC

CPU

Intel® Core™ i5-1235U

Chipset

Intel® SoC

Graphics

Intel® HD Graphics

Storage (not included)

1x M.2 SSD (PCIe/ SATA auto switch)
1x 2.5" HDD / SSD3

System memory (not included)

2x DDR4 2666/ 3200MHz SO-DIMMs, up to 64GB

I/O (front)

2x USB 3.2 Gen 2 Type A
1x Thunderbolt 4 (USB Type C port)
1x Mic-in/ Headphone-out combo

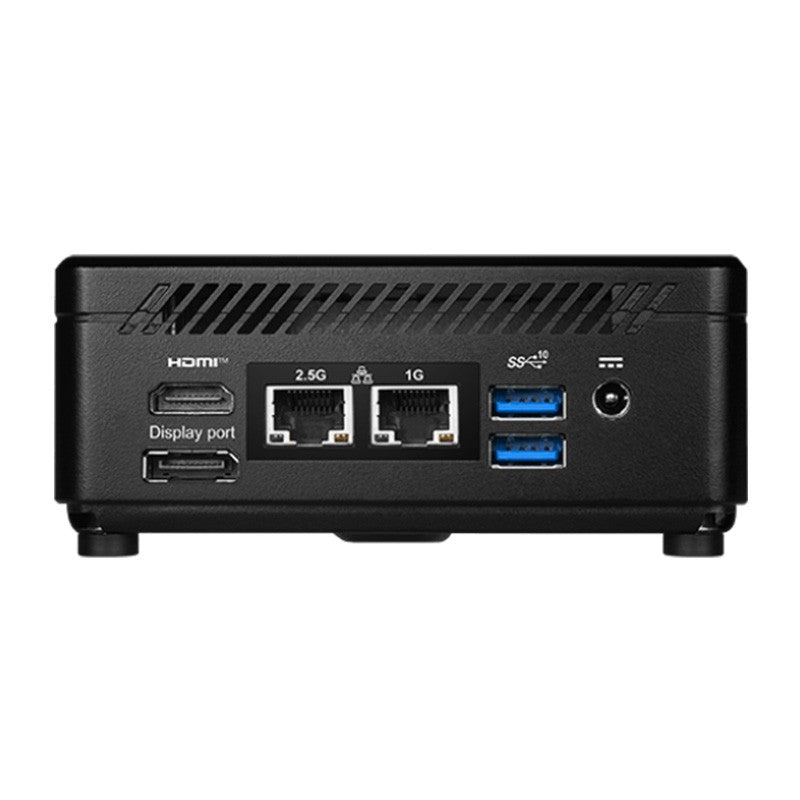

I/O (rear)

2x USB 3.2 Gen 2 Type A
2x RJ45
1x HDMI-out (2.0b)
1x DP-out (1.4)

Bluetooth

4.2 (for AC 3168)
5.2 (for AX201)
5.3 (for AX211)

Wireless LAN

Intel Wireless AC 3168
Intel Wireless AX201
Intel Wireless AX211

LAN

1x Realtek® RTL8111H
1x Realtek® RTL8125BG-CG

Cooling system

Fan Cooler

AC adapter / PSU

65W

Management utility

MSI Center: Hardware Monitoring, Free Up Memory, Clean Up Disk, LAN Manager, MSI Recovery, F3 Recovery, Devices Speed Up, Smart Priority, Smart Image Finder, Noise Cancellation, Live Update, Microsoft App Update, System Info, Troubleshooting, Contact Us, MSI Forum & Channel

Security utility & device

MSI Center: System Diagnosis

Dimension (WXDXH)

124 x 124 x 53.7 mm
(4.88 x 4.88 x 2.11 inch)

Weight (N.W./ G.W.)

5.65 kg

VESA mount

100 x 100 mm

Volume

0.7 Liter / 1.48 pt

Accessories

1x User Manual (Optional)
1x Quick Guide
1x Warranty Card
1x Adaptor
1x Power Cord
VESA Mount Screws

Certificates

FCC, CB/CE, UL & CUL, VCCI, RCM
