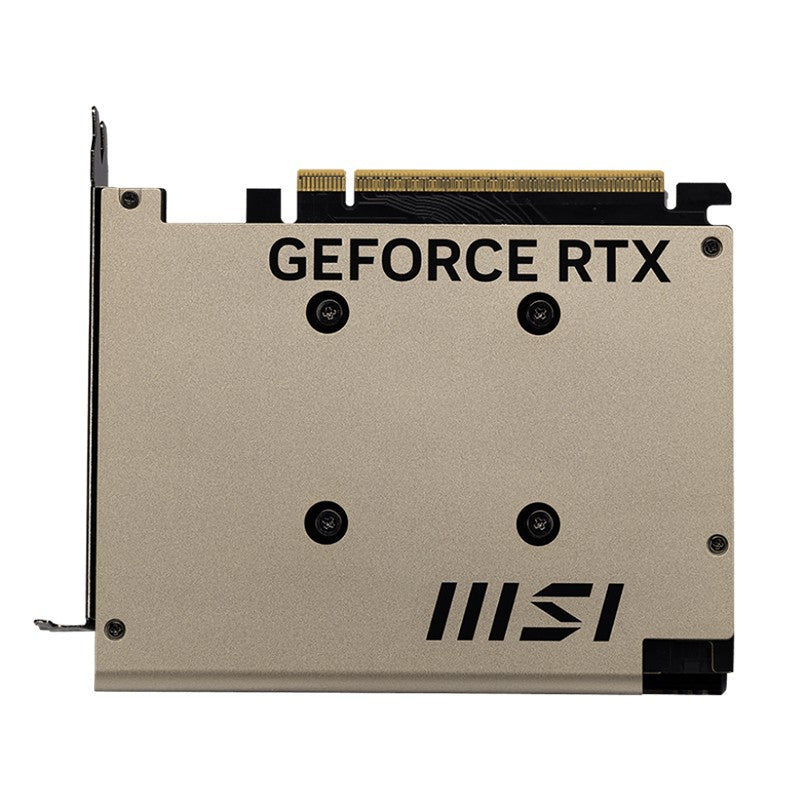

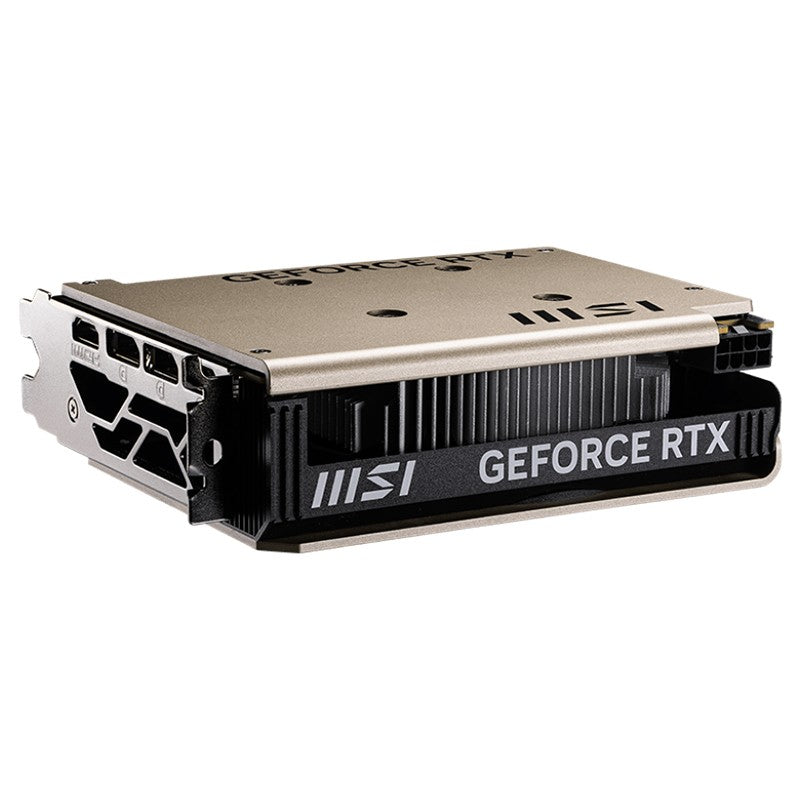

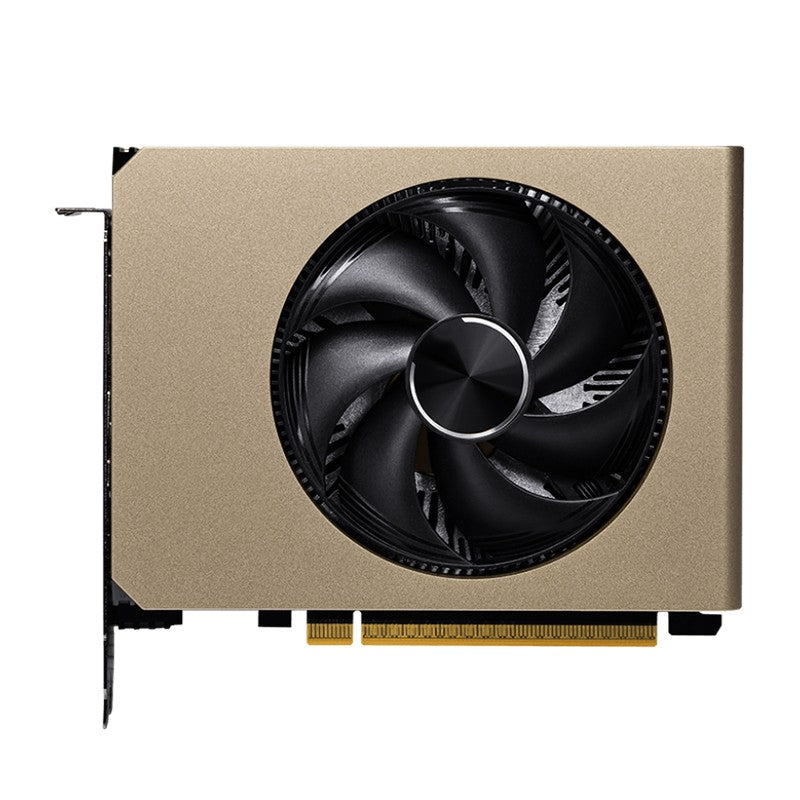

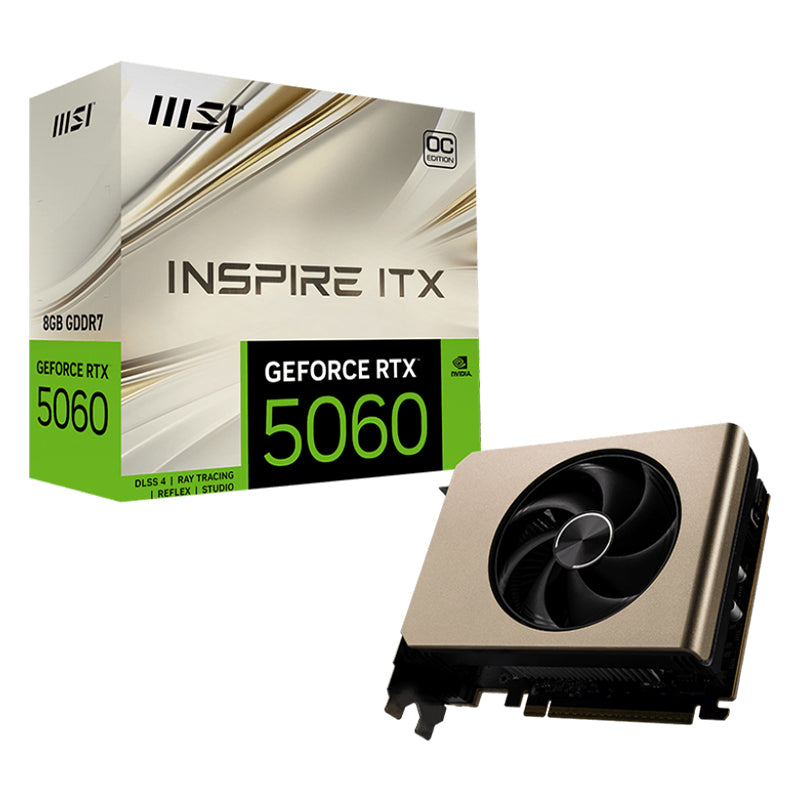

MSI GeForce RTX 5060 8G Inspire ITX OC Graphics Card

Interface

PCI Express® Gen 5 x16 (uses x8)

Core Clocks

Extreme Performance: 2535 MHz (MSI Center)

Boost: 2527 MHz

CUDA® CORES

3840 Units

Memory Speed

28 Gbps

Memory

8GB GDDR7

Memory Bus

128-bit

Output

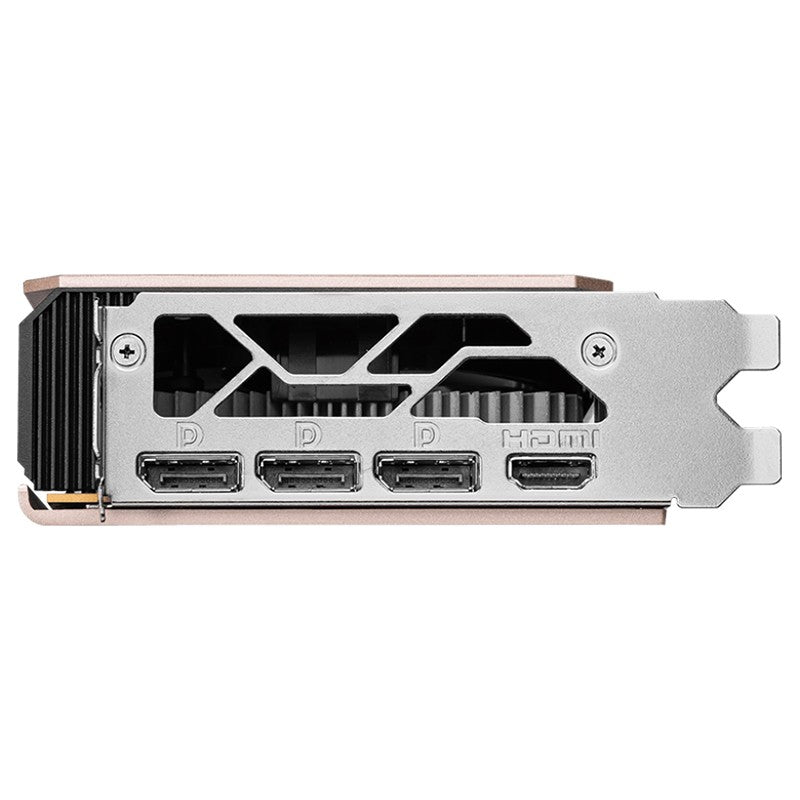

DisplayPort x 3 (v2.1b)

HDMI™ x 1 (As specified in HDMI™ 2.1b: up to 4K 480Hz or 8K 120Hz with DSC, Gaming VRR, HDR)

HDCP Support

Y

Power consumption

145 W

Power connectors

8-pin x1

Recommended PSU

550 W

Card Dimension (mm)

145 x 120 x 45 mm

Weight (Card / Package)

581 g / 913 g

DirectX Version Support

12 Ultimate

OpenGL Version Support

4.6

Maximum Displays

4

G-SYNC® technology

Y

Digital Maximum Resolution

7680 x 4320
