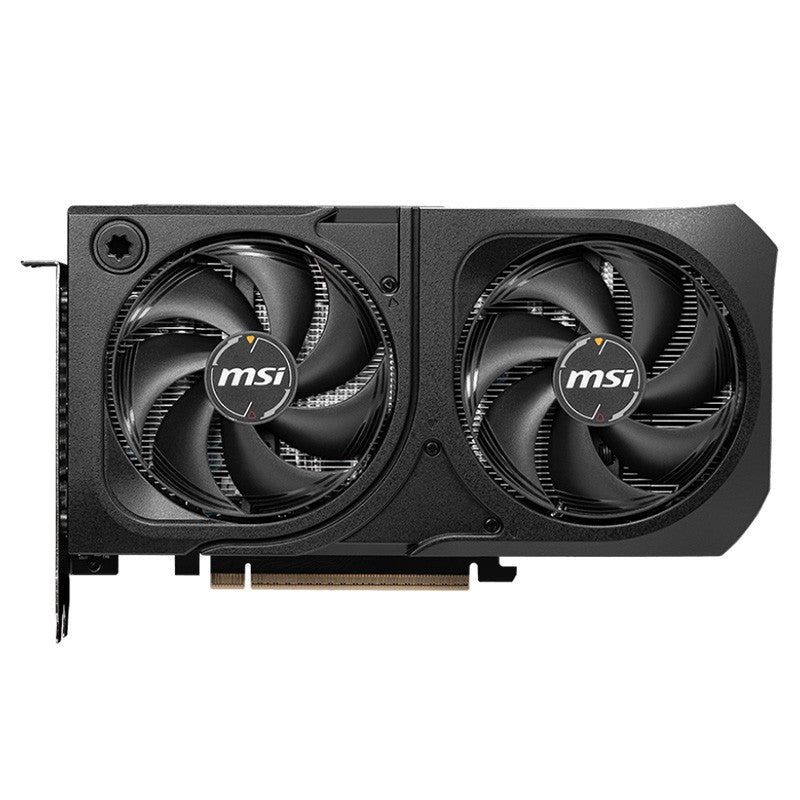

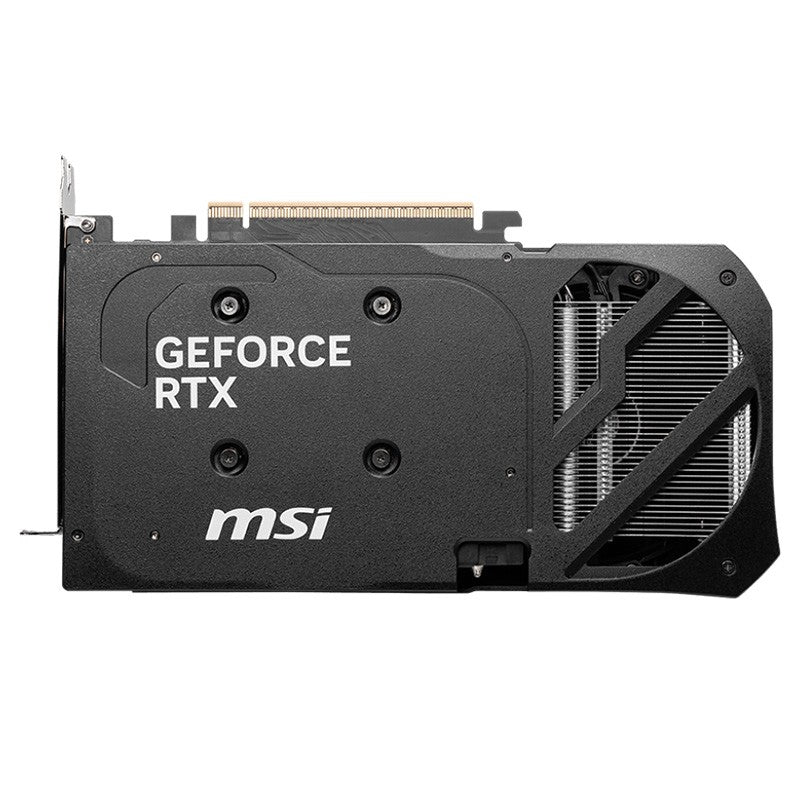

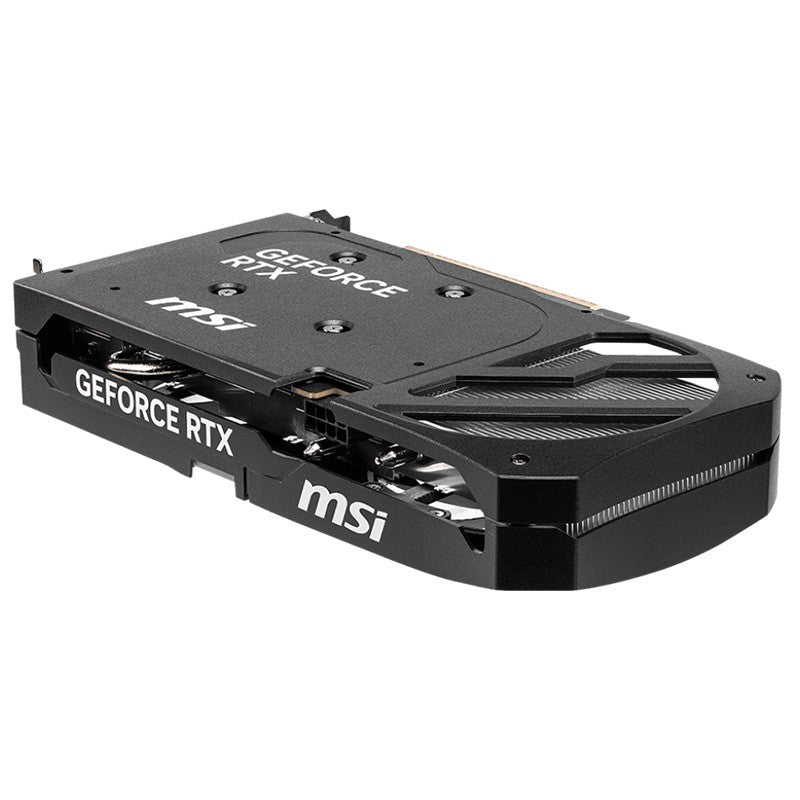

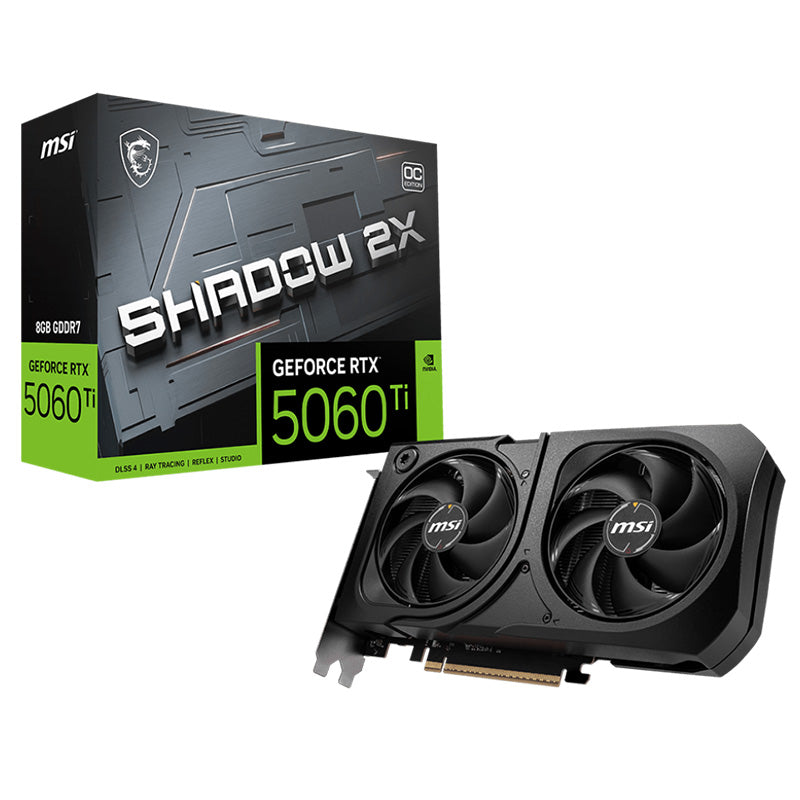

MSI GeForce RTX 5060 Ti 8G Shadow 2X OC PLUS Graphics Card

Interface

PCI Express® Gen 5 x16 (uses x8)

Core Clocks

Extreme Performance: 2617 MHz (MSI Center)

Boost: 2602 MHz

CUDA® CORES

4608 Units

Memory Speed

28 Gbps

Memory

8GB GDDR7

Memory Bus

128-bit

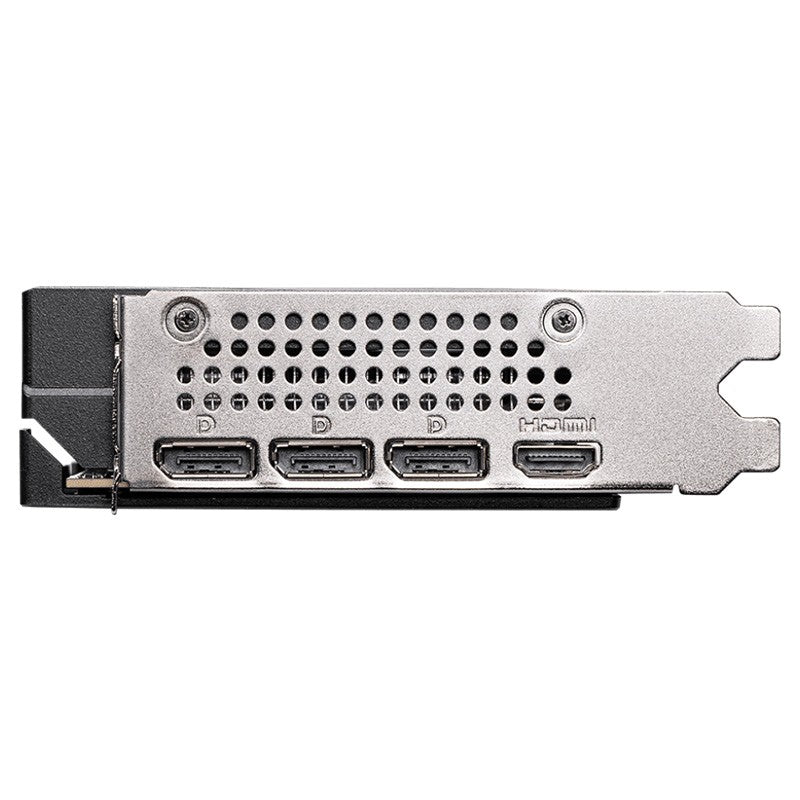

Output

DisplayPort x 3 (v2.1b)

HDMI™ x 1 (As specified in HDMI™ 2.1b: up to 4K 480Hz or 8K 120Hz with DSC, Gaming VRR, HDR)

HDCP Support

Y

Power consumption

180 W

Power connectors

8-pin x 1

Recommended PSU

600 W

Card Dimension (mm)

226 x 126 x 41 mm

Weight (Card / Package)

553 g / 814 g

DirectX Version Support

12 Ultimate

OpenGL Version Support

4.6

Maximum Displays

4

G-SYNC® technology

Y

Digital Maximum Resolution

7680 x 4320
