Description
SPECIFICATIONS:
Graphics Processing Unit |
NVIDIA® GeForce RTX™ 5090 |
Interface |
PCI Express® Gen 5x 16 |
Core Clocks |
Gaming Mode: Extreme Performance: 2580 MHz (MSI Center) Boost: 2565 MHz Silent Mode: Extreme Performance: 2527 MHz (MSI Center) Boost: 2512 MHz |
CUDA® CORES |
21760 Units |
Memory Speed |
28 Gbps |
Memory |
32GB GDDR7 |
Memory Bus |
512-bit |

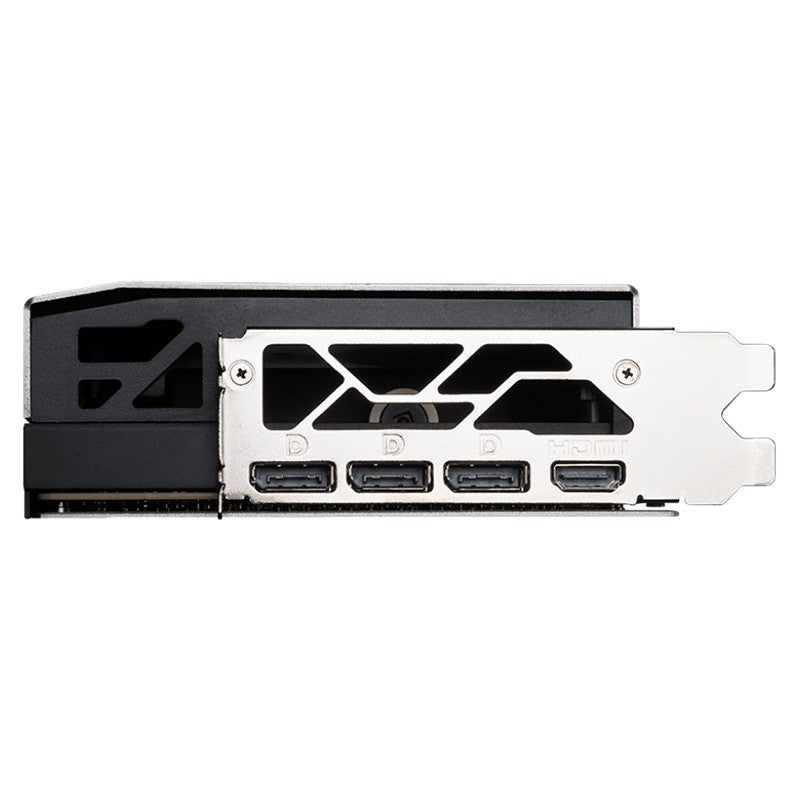

Output |
DisplayPort x 3 (2.1b) HDMI™ x 1 (As specified in HDMI™ 2.1b: up to 4K 480Hz or 8K 120Hz with DSC, Gaming VRR, HDR) |
HDCP Support |
Y |
Power consumption |
Gaming mode: 600 W Silent mode: 575 W |

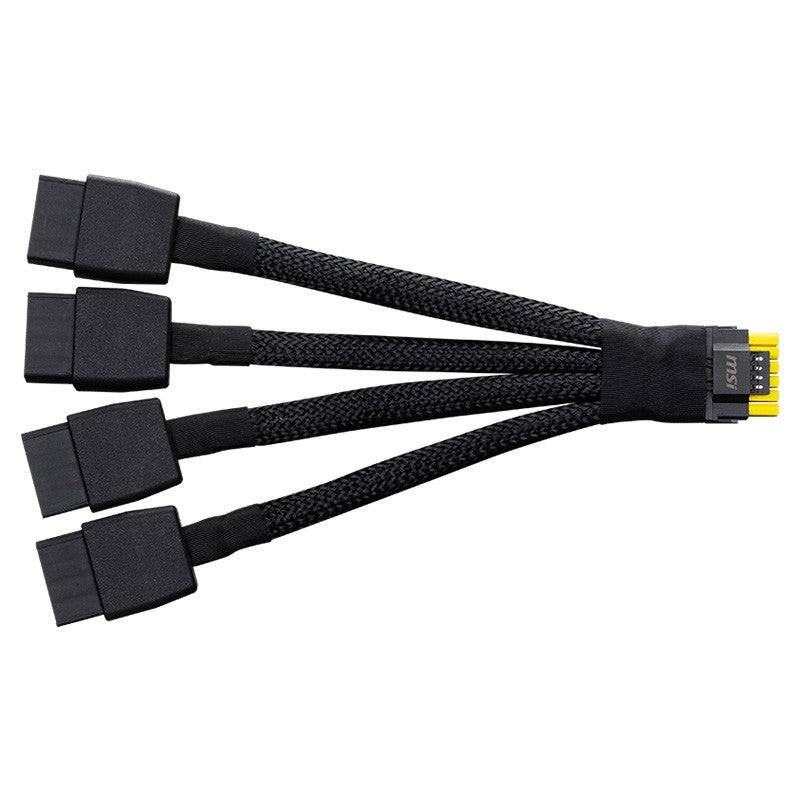

Power connectors |
16-pin x 1 |
Recommended PSU |
1000 W |
Card Dimension (mm) |

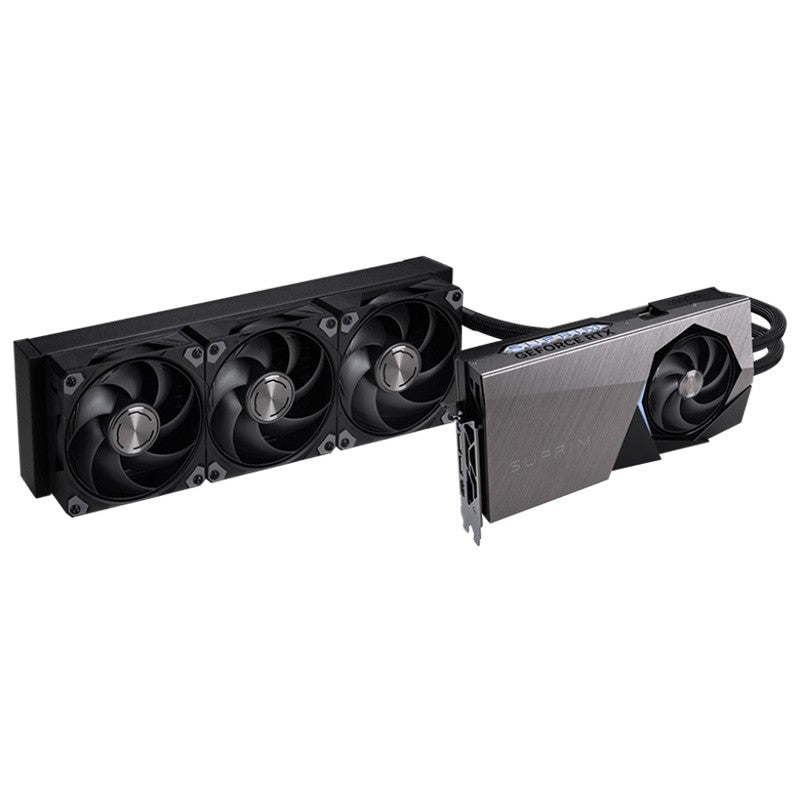

Card: 280 x 148 x 51mm Radiator: 394 x 121 x 55mm Tube length: 280mm |
Weight (Card / Package) |
2969 g / 4273 g |
DirectX Version Support |
12 Ultimate |
OpenGL Version Support |
4.6 |
Maximum Displays |
4 |
G-SYNC® technology |
Y |
Digital Maximum Resolution |
7680 x 4320 |
