Description
SPECIFICATIONS:
Efficiency Rating |
80 PLUS Gold (up to 90%) |
Modular |
Yes (full modular) |
Fan Size |
120 mm |
Fan Bearing |
Fluid Dynamic Bearing |
Dimensions (DxWxH) |
140 x 150 x 86 mm |
PFC Type |
Active PFC |
Input Voltage Range |
100~240 VAC |
Power Watt |
850W |
Power Excursion |
1700W (*up to 200% of the PSU's rated power for 100μs) |
Input Frequency Range |
47-63Hz |
Protection |
OCP / OVP / OPP / OTP / SCP / UVP |

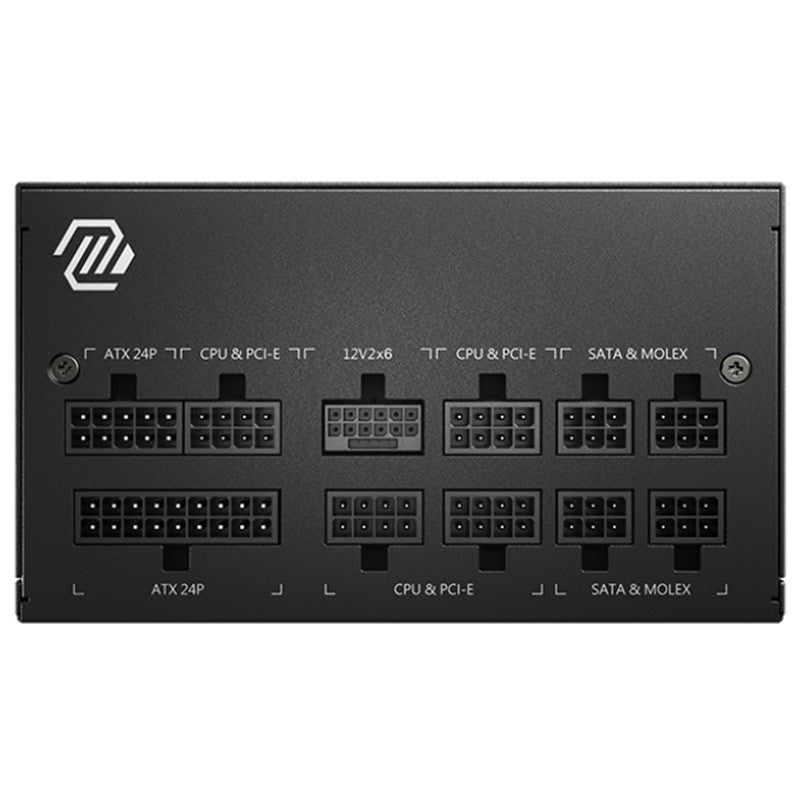

ATX (24 pin) |
1 |
EPS (4+4 pin) |
2 |
PCI-E 5.0 (16 pin) |
1 (600W) |
PCI-E (6+2 pin) |
4 |
SATA (15 pin) |
8 |
MOLEX (4 pin) |
4 |
FDD (4 pin) |
1 |
