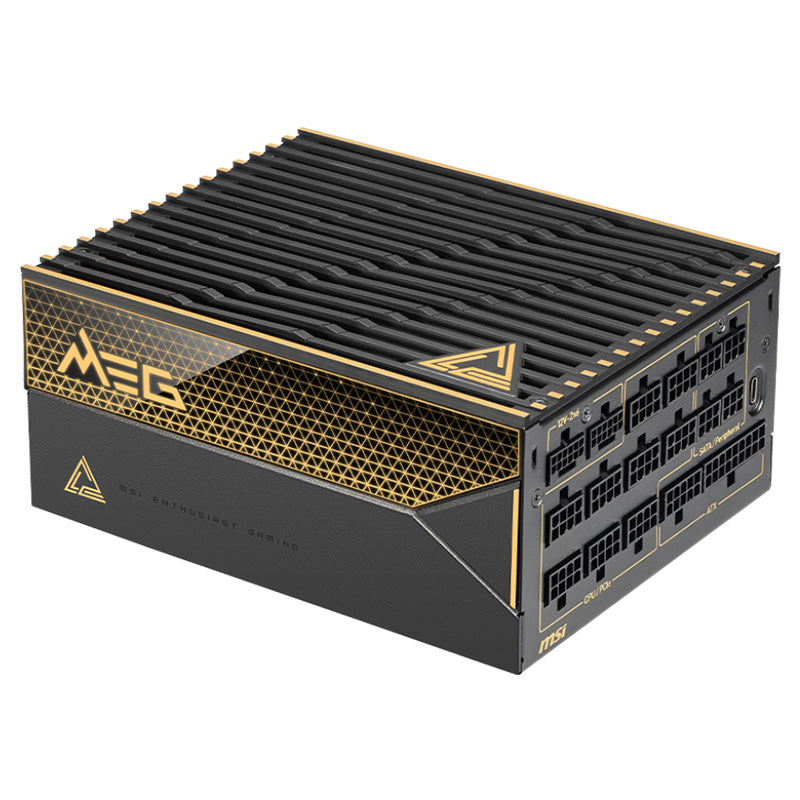

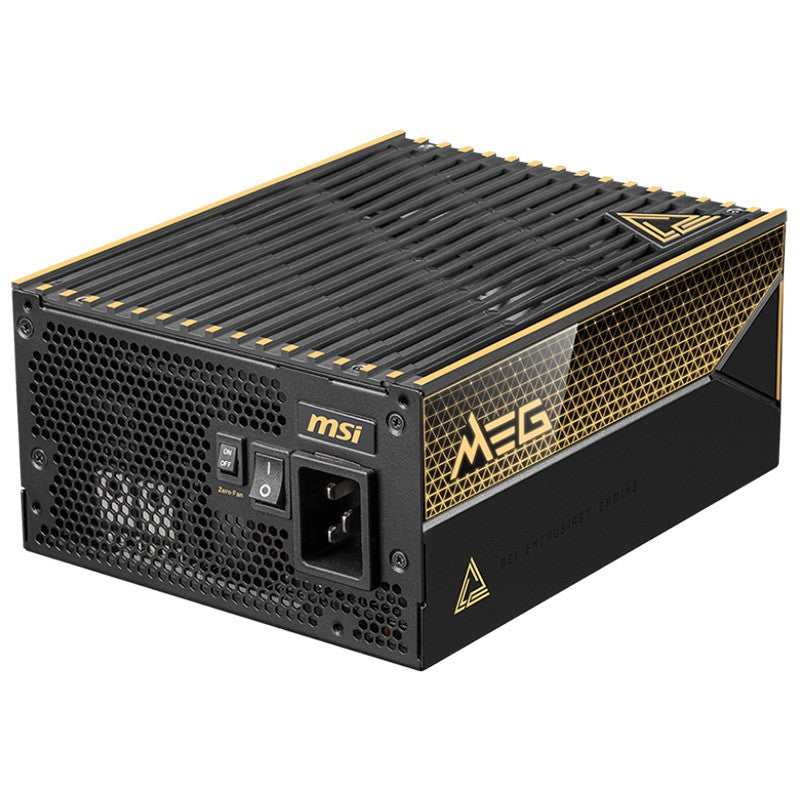

MSI MEG 1600W Ai1600T PCIE5 80+ Titanium Fully Modular ATX Power Supply

Modular

Yes (Fully Modular)

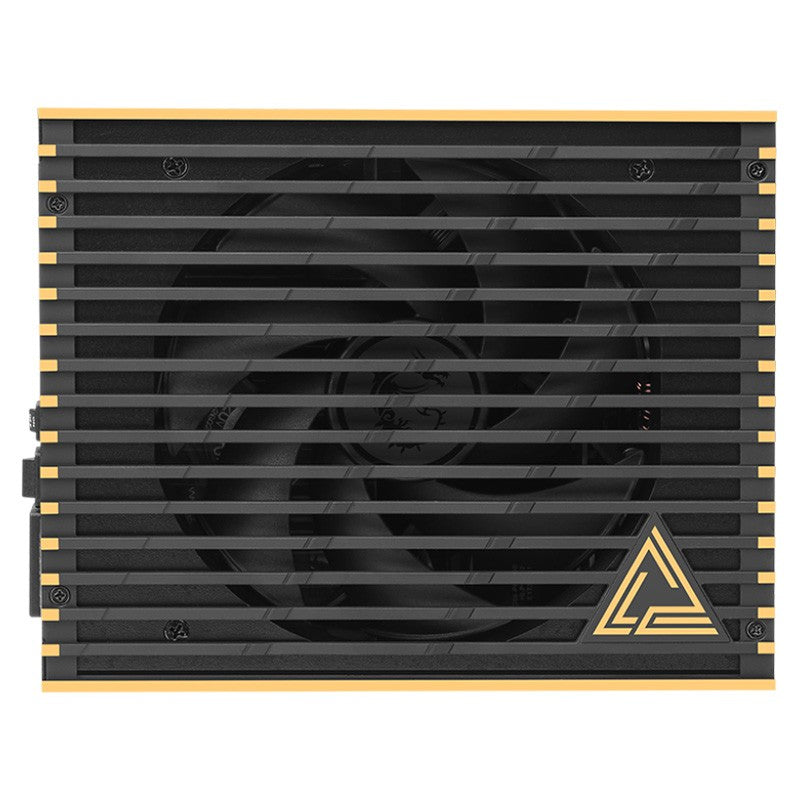

Fan Size

135 mm

Fan Bearing

Double Ball Bearing

Dimensions (DxWxH)

190 x 150 x 86 mm

PFC Type

Interleaved PFC

Input Voltage Range

100-240

Power Watt

1600W

Power Excursion

3840W (*up to 240% of the PSU's rated power for 100μs)

Input Frequency Range

50~60 Hz

Protection

OCP / OTP / OPP / SCP / OVP / UVP / SIP / NLO

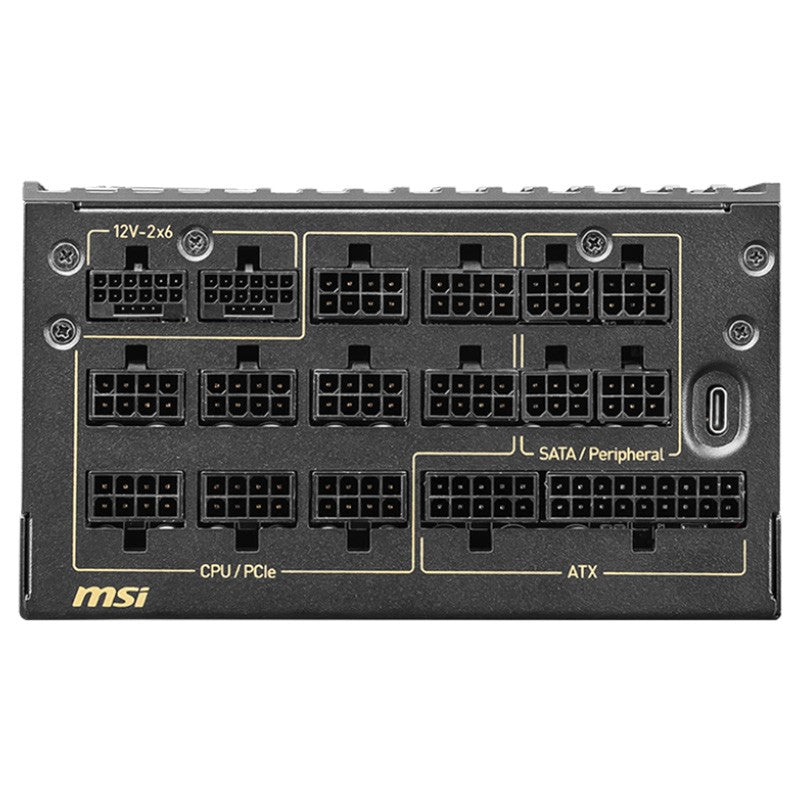

ATX (24 pin)

1

EPS (4+4 pin)

2

PCI-E 5.1 (16 pin)

2 (600W)

PCI-E (6+2 pin)

9

SATA (15 pin)

8

PERIPHERAL (4 pin)

8
