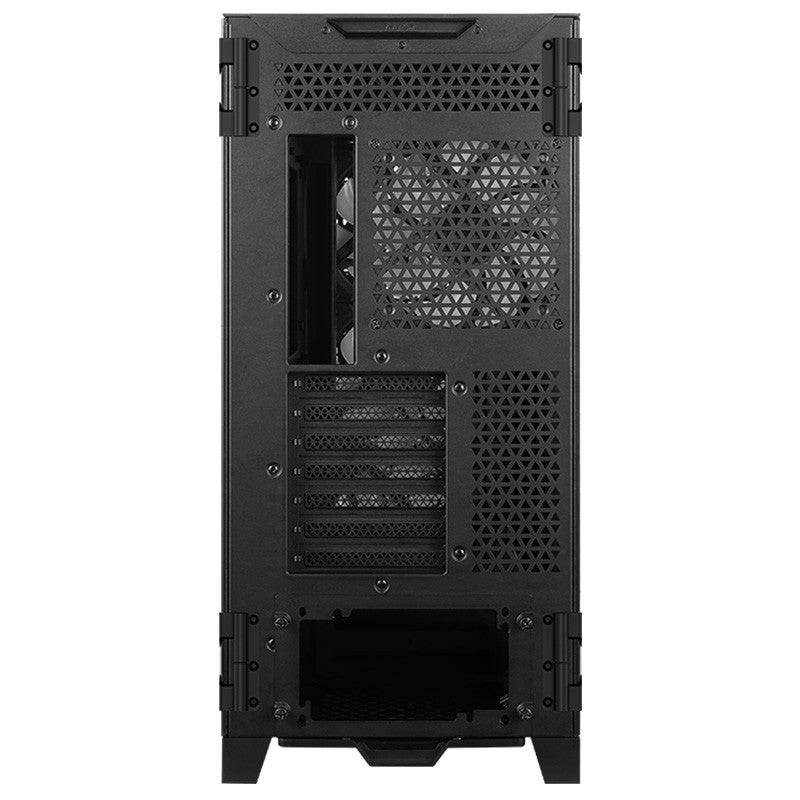

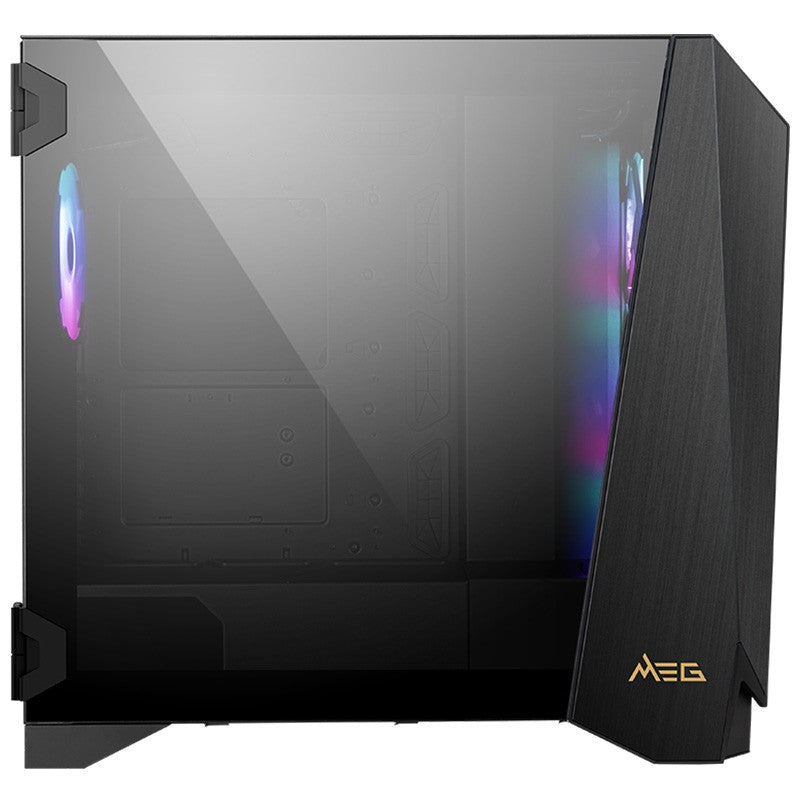

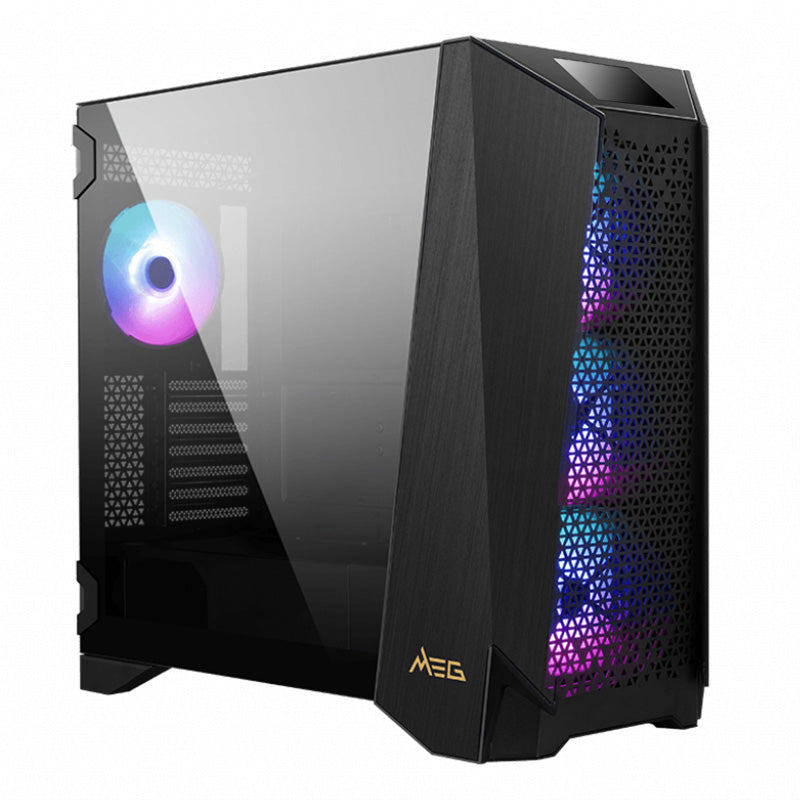

MSI MEG Prospect 700R Mid Tower E-ATX Case

Motherboard form factor support

EATX (up to 310mmx304.8mm) / ATX / M-ATX / ITX

I/O ports

2x USB 3.2 Gen 1 Type-A

1x USB 3.2 Gen 2x2 Type-C

1x HD Audio

1x Mic

Drive mount support

2x 2.5”

2x 2.5"/3.5”

Expansion slots

7

Maximum GPU length

400mm / 15.75 inches

Maximum CPU cooler height

185mm / 7.28 inches

Power supply support

Standard ATX, max up to 220mm (without 3.5'' HDD tray installed)

Fan size support

Front: Up to 3 x 120 mm / 3 x 140 mm

Top: Up to 3 x 120 mm / 3 x 140 mm

Rear: Up to 1 x 120 mm / 1x 140 mm

Side: Up to 3 x 120 mm

Pre-installed fan size

Front: 3x 140mm ARGB Fan

Rear: 1x 140mm ARGB Fan

Pre-installed fan type

ARGB

Radiator size support

Front: 120 / 140 / 240 / 280 / 360 mm

Top: 120 / 140 / 240 / 280 / 360 mm

Rear: 120 / 140 mm

Side: 120 / 240 / 360 mm

Dimensions (DXWXH)

585x 257 x 537 mm / 23.03 x 10.12 x 21.14 inches

Net weight

15.95 kg / 35.16 lbs

Gross weight

21.55 kg / 47.51 lbs

Note

Material: Left Side: Tempered Glass/ Right Side- Metal

Vertical GPU Mount : Yes

Touch Panel: Yes

Connection

Power Button

Reset Button

1x USB 3.2 Gen 2x2 Type-C

Mic In

Audio Out

2x USB 3.2 Gen 1 Type-A
