Description

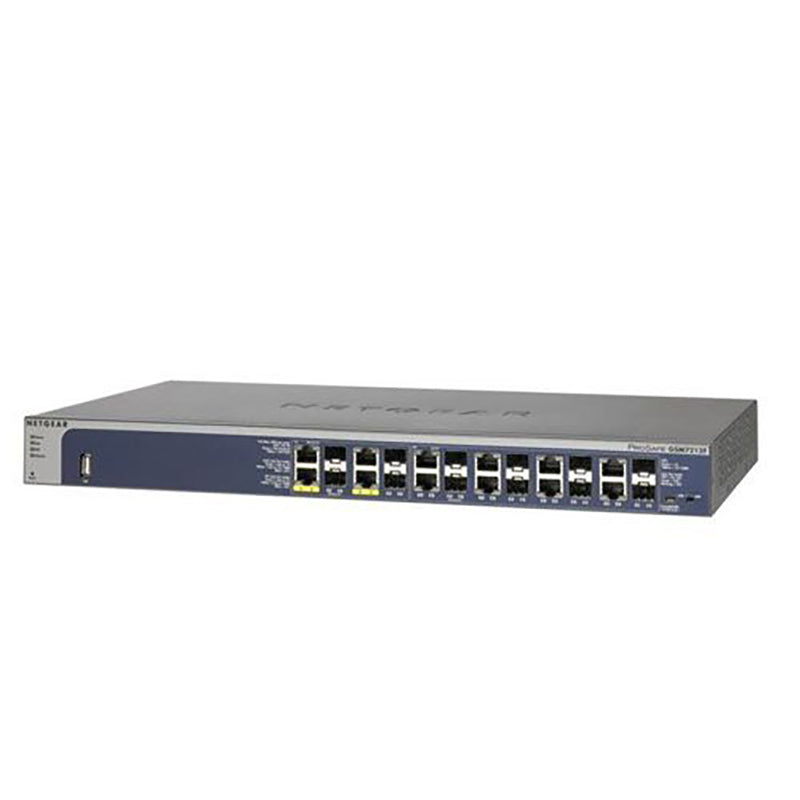

Netgear GSM7212F-100AJS ProSAFE Gigabit L2+ Managed Switch
The Netgear ProSafe Gigabit L2+ Managed Switch GSM7212F for "Intelligent Edge" distribution consists of 12 ports combo, dual-speed SFP with fiber connectivity, including 4 ports with PoE+ connectivity. Intelligent Edge series deliver a secure and flexible access in campus, commercial and enterprise converged environments: Wireless access points, IP telephony and video-surveillance.
Intelligent Edge
Unified Communications Voice over IP
Unified Communications Video Streams
Outstanding Value
SPECIFICATIONS:
Management features |
|
Switch type |
Unmanaged |
Quality of Service (QoS) support |
Y |
Ports & interfaces |
|
Basic switching RJ-45 Ethernet ports quantity |
16 |
Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
Power connector |
AC-in jack |
Network |
|
Networking standards |
IEEE 802.1p,IEEE 802.3,IEEE 802.3ab,IEEE 802.3u,IEEE 802.3x |
10G support |
N |
Copper ethernet cabling technology |
10BASE-T,100BASE-T,1000BASE-T |
Cable types supported |
Cat3,Cat4,Cat5,Cat5e |
Full duplex |
Y |
Flow control support |
Y |
Broadcast storm control |
Y |
Auto MDI/MDI-X |
Y |
Active link detection |
Y |
MAC address auto-learning supported |
Y |
MAC address auto-aging supported |
Y |
Data transmission |
|
Switching capacity |
32 Gbit/s |
Forwarding rate |
23.81 Mpps |
MAC address table |
8000 entries |
Store-and-forward |
Y |
Number of queues |
8 |
Jumbo frames support |
Y |
Jumbo frames |
10000 |
Packet forwarding rate (1 Gbps) |
14880 pps |
Packet forwarding rate (10 Mbps) |
1488000 pps |
Packet buffer memory |
0.5 MB |
Security |
|
MAC address filtering |
Y |
Protocols |
|
Supported network protocols |
IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab |
Design |
|
Rack mounting |
Y |
Stackable |
Y |
Form factor |
1U |
Product colour |
Black, Silver |
Housing material |
Metal |
LED indicators |
Activity, Link, Power, Speed |
Electromagnetic compatibility |
ICES-003 Class A, FCC Class A, RCM Class A, BSMI Class A, CE Class A, VCCI A, CCC, KCC |
Certification |
cUL/UL CE LVD CCC CB BSMI |
Performance |
|
Mean time between failures (MTBF) |
1882372 h |
Power |
|
Power supply included |
Y |
AC input voltage |
100 - 240 V |
AC input frequency |
50/60 Hz |
Input current |
0.2 A |
Power consumption (max) |
10.07 W |
Power over Ethernet (PoE) |
N |
Operational conditions |
|
Operating temperature (T-T) |
0 - 40 °C |
Storage temperature (T-T) |
-10 - 70 °C |
Operating relative humidity (H-H) |
0 - 95% |
Storage relative humidity (H-H) |
0 - 95% |
Heat dissipation |
34.3 BTU/h |
Weight & dimensions |
|
Width |
280 mm |
Depth |
125 mm |
Height |
44 mm |
Weight |
1.02 kg |
