Description

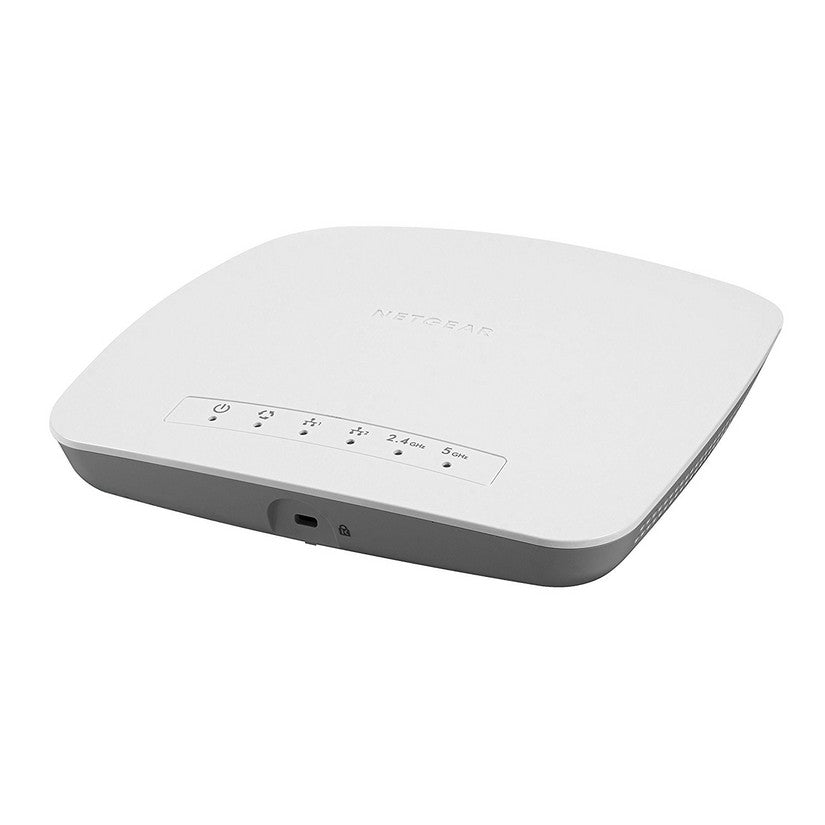

Insight Managed Smart Cloud Wireless Access Point (WAC510)
One-touch network visibility. Anywhere.
The NETGEAR® Insight Managed Wireless Access Point WAC510 delivers high performance WiFi and high client density for enterprises requiring ubiquitous and reliable wireless for all business applications. The WAC510 is managed by NETGEAR Insight app, for a more intuitive and innovative support, with no need for extra management hardware. The WAC510 features Multi-User MIMO (MU-MIMO) to achieve aggregate speeds up to 1.2 Gbps, option to configure as a router or an access point and comes with two Ethernet ports, a Power-over-Ethernet (PoE) 1Gb LAN port and a WAN port.
SPECIFICATIONS:
Standards |
IEEE 802.11ac specification IEEE 802.11ac 2.0 specification IEEE 802.11g IEEE 802.11b IEEE 802.11a |
Frequency Band |
2.4GHz and 5GHz concurrent operation |
Maximum Theoretical Throughput |
300Mbps (2.4GHz) 867Mbps (5GHz) |
Maximum Number of Clients |
200 |
Deployment options |
Standalone Netgear Insight app management |
Access Point |
Internal Antenna Gain: 3 dBi (2.4 GHz) / 6 dBi (5 GHz) |
Advanced Wireless |
WDS Point-to-point wireless bridge mode WDS Point-to-multipoint wireless bridge mode |
Security |
WiFi Protected Access Pre-shared Key (WPA-PSK, WPA2-PSK) MAC Address filtering 4 BSSIDs per Radio |
MAC ACL |
Yes |
Routing Function |
Yes |
802.11e WMM |
(Wireless multimedia mode) for QoS |
Simultaneous Bridge/Client Association |
Yes |
Power |
Power adapter (not included): 12V DC, 2.5A; Power consumption: 9.3W |
Physical Specifications |
Dimensions (L x W x H): 7.75 x 7.75 x 1.45in (197.32 x 197.32 x 37mm) Weight: 555.5g (1.22lb) |
Mounting |
Desktop standable Ceiling and wall mountable (mount included) |
Physical Interfaces |
Two (WAN/LAN) 10/100/1000BASE-T Gigabit Ethernet (RJ-45) ports with Auto Uplink (Auto MDI-X) with WAN port supporting IEEE 802.3af or 802.3at Power over Ethernet |
LEDs |
Six (6) LED: Power, Link/ACT, LAN1, LAN2, 2.4 GHz, 5 GHz |
Default Reset |
Yes |
MTBF |
@ 25°C > 978,210 Hours |
Package Contents |
Insight Managed Smart Cloud Wireless Access Point (WAC510) |
