Description
SPECIFICATIONS:
Size |
120x120x25 mm |
Mounting hole spacing |
105x105 mm |
Connector & pin-configuration |
4-pin PWM |
Cable length |
2cm + 30cm NA-EC1 extension cable |
Bearing |
SSO2 |
Blade geometry |
Heptaperf™ |
Frame technology |
Focused Flow™ |
Rotational speed (+/- 10%) |
1500 RPM |
Min. rotational speed @ 20% PWM (+/-20%) |
300 RPM |
Airflow |
93,4 m/h |
Acoustical noise |
22,4 dB(A) |
Static pressure |
2,61 mm H₂O |
Input power (typical) |
0,4 W |
Input power (max.) |
0,6 W |
Input current (typical) |
0,03 A |
Max. input current |
0,05 A |
Operating voltage |
12 V |
MTTF |
> 150.000 h |

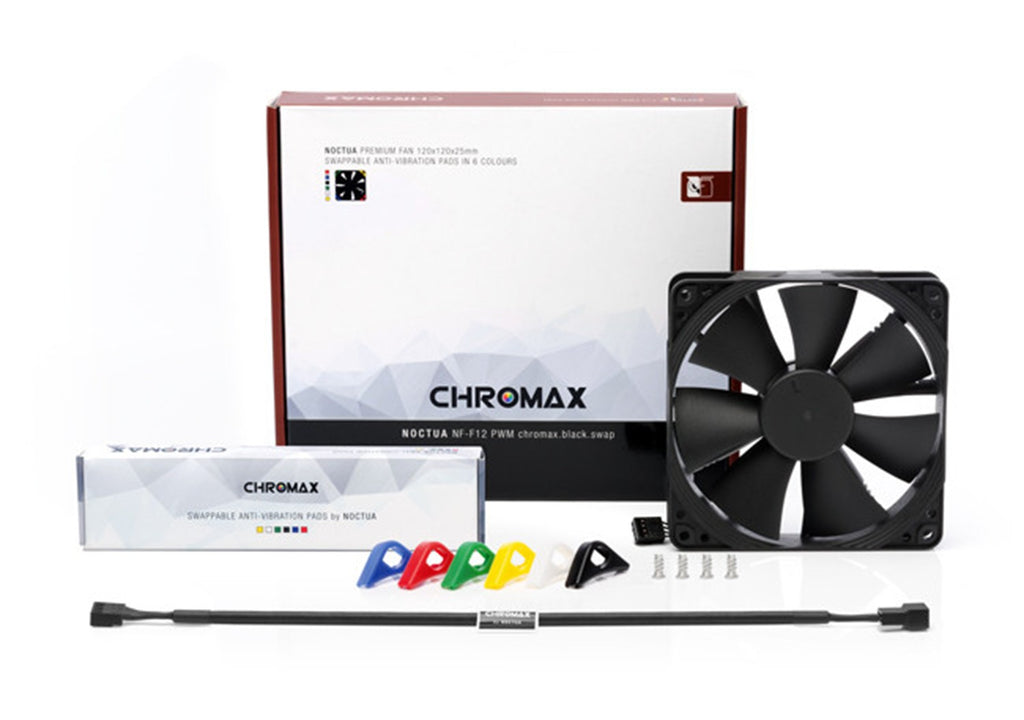

Scope of delivery |
4x NA-AVP1 chromax.black anti-vibration pads 4x NA-AVP1 chromax.blue anti-vibration pads 4x NA-AVP1 chromax.green anti-vibration pads 4x NA-AVP1 chromax.red anti-vibration pads 4x NA-AVP1 chromax.white anti-vibration pads 4x NA-AVP1 chromax.yellow anti-vibration pads NA-EC1 chromax.black 30 cm extension cable 4x fan screws |
