Description
SPECIFICATIONS:
Size |
120x120x25 mm |
Mounting hole spacing |
105x105 mm |
Connector & pin-configuration |
3-pin |
Cable length |
20cm + 30cm NA-EC1 extension cable |
Bearing |
SSO2 |
Blade geometry |
A-Series with Flow Acceleration Channels |
Frame technology |
AAO (Advanced Acoustic Optimisation) |
Material |
Sterrox® LCP |
Rotational speed (+/- 10%) |
2000 RPM |
Rotational speed with L.N.A. (+/- 10%) |
1700 RPM |
Rotational Speed with U.L.N.A. (+/- 10%) |
1350 RPM |
Airflow |
102,1 m/h |
Airflow with L.N.A. |
84,5 m/h |
Airflow with U.L.N.A. |
64,5 m/h |
Acoustical noise |
22,6 dB(A) |
Acoustical noise with L.N.A. |
18,8 dB(A) |
Acoustical noise with U.L.N.A. |
14,2 dB(A) |
Static pressure |
2,34 mm H₂O |
Static pressure with L.N.A. |
1,65 mm H₂O |
Static pressure with U.L.N.A. |
1,05 mm H₂O |
Input power (typical) |
1,32 W |
Input power (max.) |
1,68 W |
Input current (typical) |
0,11 A |
Max. input current |
0,14 A |
Operating voltage |
12 V |
MTTF |
> 150.000 h |

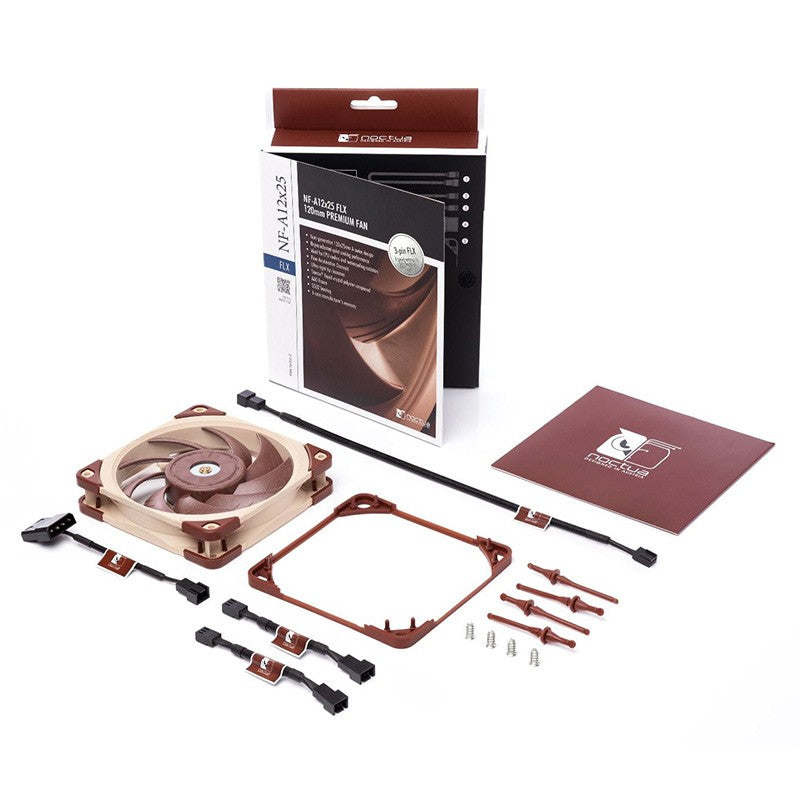

Scope of delivery |
Low-Noise Adaptor (L.N.A.) Ultra-Low-Noise Adaptor (U.L.N.A.) 3:4-pin power supply adaptor 30cm extension cable NA-AV2 anti-vibration mounts Anti-vibration gasket for water cooling radiators Fan screws |
