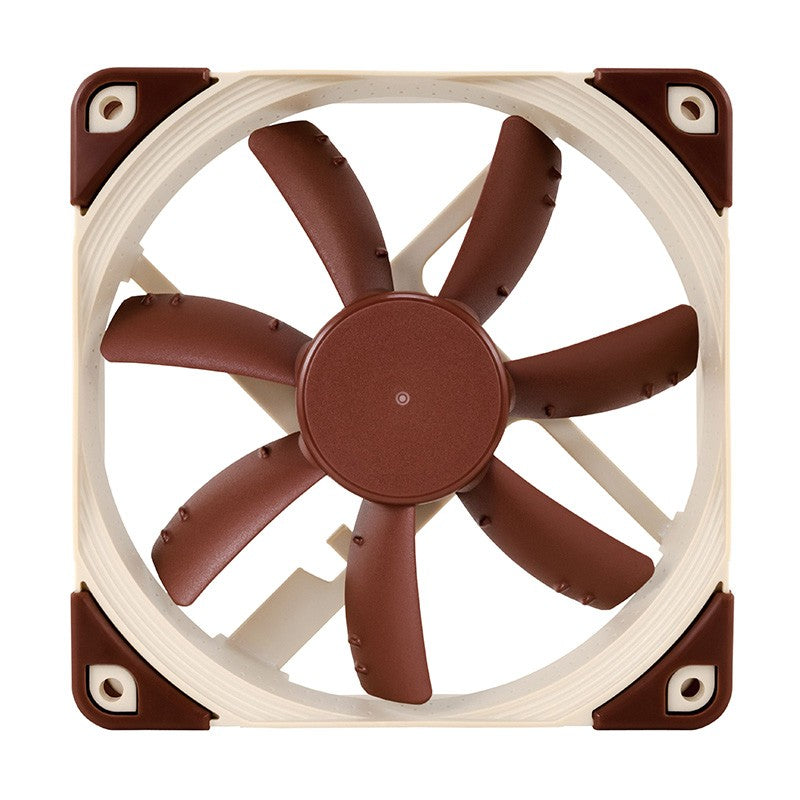

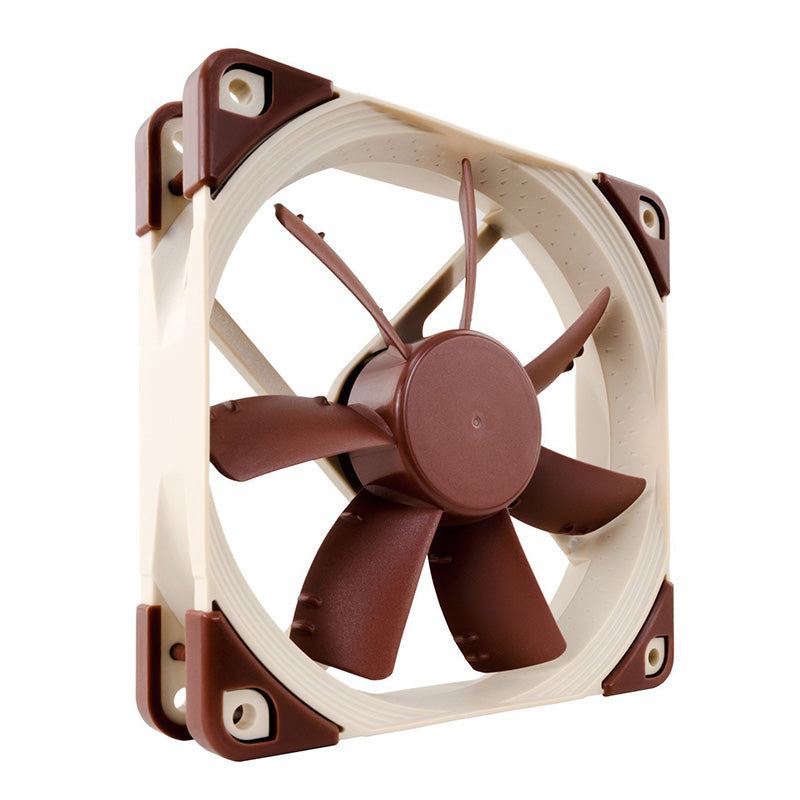

Noctua 120mm 3-Pin Fan

Mounting hole spacing

105x105 mm

Connector &   pin-configuration

3-pin

Cable length

20cm + 30cm NA-EC1 extension cable

Bearing

SSO2

Blade geometry

S-Series with Anti-Stall Knobs

Frame technology

AAO (Advanced Acoustic Optimisation)

Rotational speed (+/- 10%)

1200 RPM

Rotational speed with L.N.A. (+/- 10%)

900 RPM

Rotational Speed with U.L.N.A. (+/- 10%)

700 RPM

Airflow

107,5 m/h

Airflow with L.N.A.

83,2 m/h

Airflow with U.L.N.A.

65,8 m/h

Acoustical noise

17,8 dB(A)

Acoustical noise with L.N.A.

10,7 dB(A)

Acoustical noise with U.L.N.A.

7,4 dB(A)

Static pressure

1,19 mm H₂O

Static pressure with L.N.A.

0,73 mm H₂O

Static pressure with U.L.N.A.

0,51 mm H₂O

Input power (typical)

1,19 W

Input power (max.)

1,44 W

Input current (typical)

0,1 A

Max. input current

0,12 A

Operating voltage

12 V

MTTF

> 150.000 h

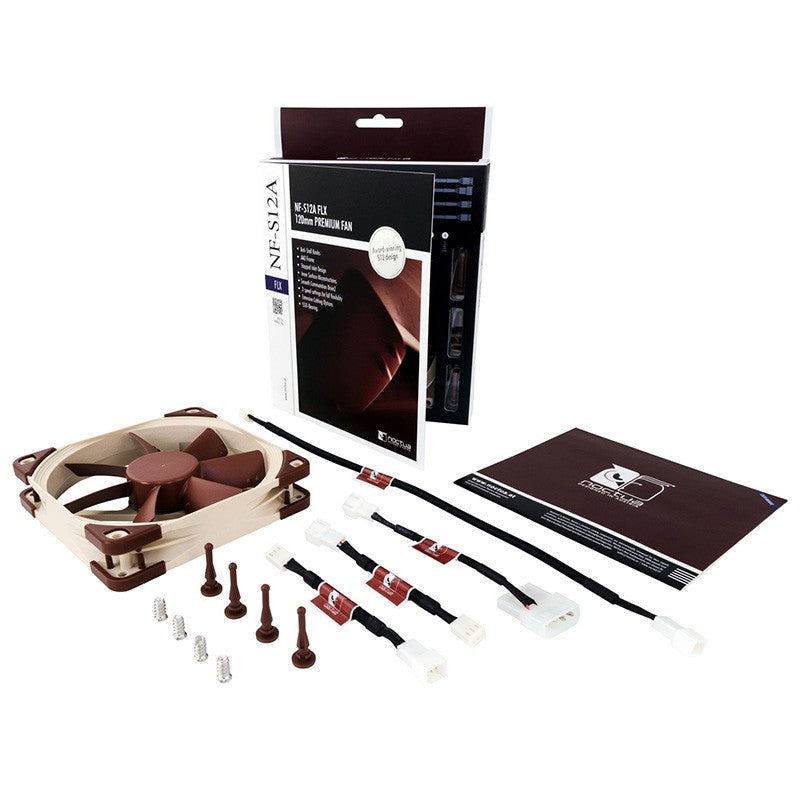

Scope of delivery

Low-Noise Adaptor (L.N.A.)

Ultra-Low-Noise Adaptor (U.L.N.A.)

3:4-Pin Adaptor

30cm Extension Cable

4 Vibration-Compensators

4 Fan Screws
