Description
SPECIFICATIONS:
COOLER SPECIFICATION |
|
Socket compatibility |
Intel LGA1851, LGA1700, LGA1200, LGA1156, LGA1155, LGA1151, LGA1150 and AMD AM5, AM4 (Current socket compatibility applies to all coolers purchased since Q1 2022. For older coolers, please refer to this chart.) |
Height (without fan) |
158 mm |
Width (without fan) |
125 mm |
Depth (without fan) |
45 mm |
Height (with fan) |
158 mm |
Width (with fan) |
125 mm |
Depth (with fan) |
71 mm |
Weight (with fan) |
755 g |
Material |
Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating |
NSPR |
129 |
Max. TDP |
see NSPR |
Fan compatibility |
120x120x25 |

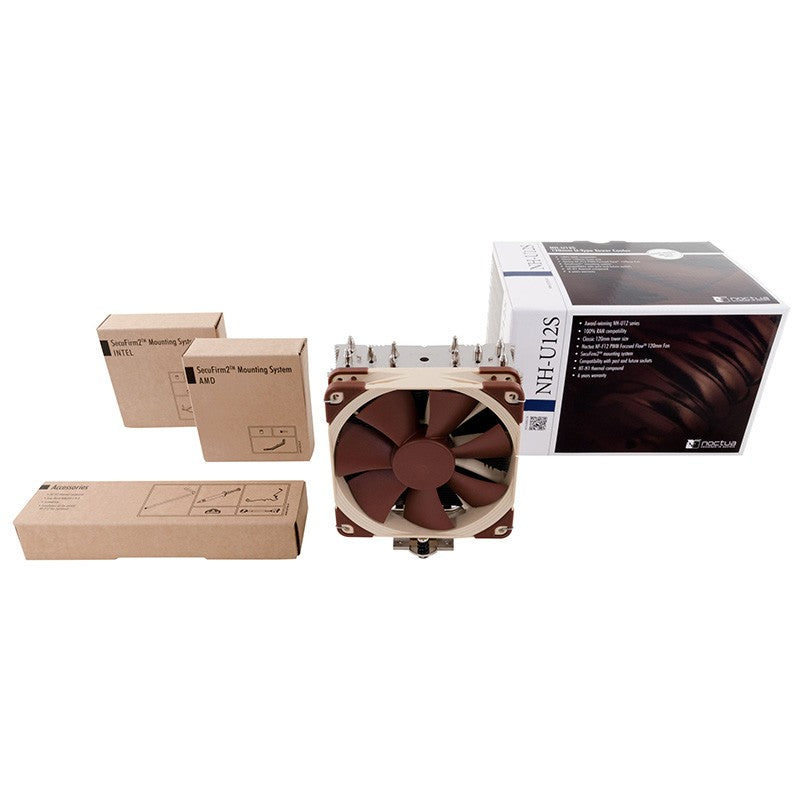

Scope of delivery |
NF-F12 PWM premium fan NA-RC6 Low-Noise Adaptor (L.N.A.) NT-H1 high-grade thermal compound SecuFirm2™ mounting kit Anti-vibration pads and fan-clips for second NF-F12 Noctua Metal Case-Badge |
FAN SPECIFICATION |
|
Model Noctua |
NF-F12 PWM |
Bearing |
SSO2 |
Max. rotational speed (+/- 10%) |
1500 RPM |
Max. rotational speed with L.N.A. (+/- 10%) |
1200 RPM |
Min. rotational speed @ 20% PWM (+/-20%) |
300 RPM |
Max. airflow |
93,4 m/h |
Max. airflow with L.N.A. |
74,3 m/h |
Max. acoustical noise |
22,4 dB(A) |
Max. acoustical noise with L.N.A. |
18,6 dB(A) |
Voltage range |
12 V |
MTTF |
> 150.000 h |
