Description
SPECIFICATIONS:
COOLER SPECIFICATION |
|
Socket compatibility |
Intel LGA1851, LGA1700, LGA1200, LGA1156, LGA1155, LGA1151, LGA1150 and AMD AM5, AM4 (Current socket compatibility applies to all coolers purchased since Q4 2021. For older coolers, please refer to this chart.) |
Height (without fan) |
158 mm |
Width (without fan) |
125 mm |
Depth (without fan) |
58 mm |
Weight (without fan) |
760 g |
Height (with fan) |
158 mm |
Width (with fan) |
125 mm |
Depth (with fan) |
112 mm |
Weight (with fan) |
1220 g |
Material |
Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating |
NSPR |
169 |
Max. TDP |
see NSPR |
Fan compatibility |
120x120x25 |

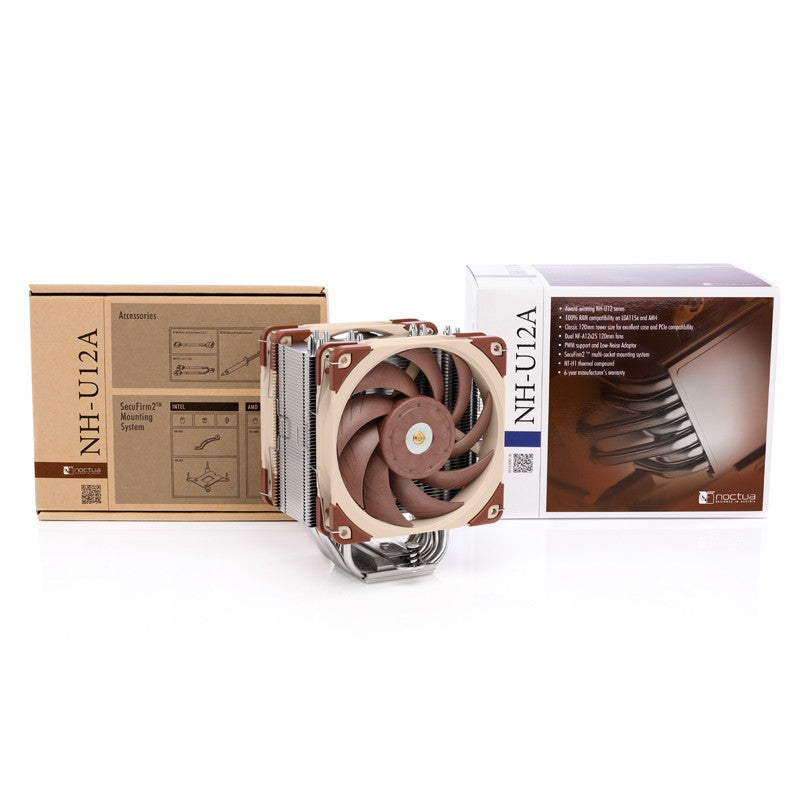

Scope of delivery |
2x NF-A12x25 PWM 120mm fan 2x NA-RC14 Low-Noise Adaptor (L.N.A.) NA-YC1 4-pin PWM splitter cable SecuFirm2™ mounting kit NT-H1 thermal compound Noctua Metal Case-Badge |
FAN SPECIFICATION |
|
Model |
Noctua NF-A12x25 PWM |
Bearing |
SSO2 |
Max. rotational speed (+/- 10%) |
2000 RPM |
Max. rotational speed with L.N.A. (+/- 10%) |
1700 RPM |
Min. rotational speed @ 20% PWM (+/-20%) |
450 RPM |
Max. airflow |
102,1 m/h |
Max. airflow with L.N.A. |
84,5 m/h |
Max. acoustical noise |
22,6 dB(A) |
Max. acoustical noise with L.N.A. |
18,8 dB(A) |
Voltage range |
12 V |
MTTF |
> 150.000 h |
