Description
SPECIFICATIONS:
COOLER SPECIFICATION |
|
Socket compatibility |
Intel LGA1851, LGA1700, LGA1200, LGA1156, LGA1155, LGA1151, LGA1150 and AMD AM5, AM4 |
Height (without fan) |
158 mm |
Width (without fan) |
125 mm |
Depth (without fan) |
58 mm |
Weight (without fan) |
760 g |
Height (with fan) |
158 mm |
Width (with fan) |
125 mm |
Depth (with fan) |
112 mm |
Weight (with fan) |
1220 g |
Material |
Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating |
NSPR |
169 |
Fan compatibility |
120x120x25 |
Scope of delivery |

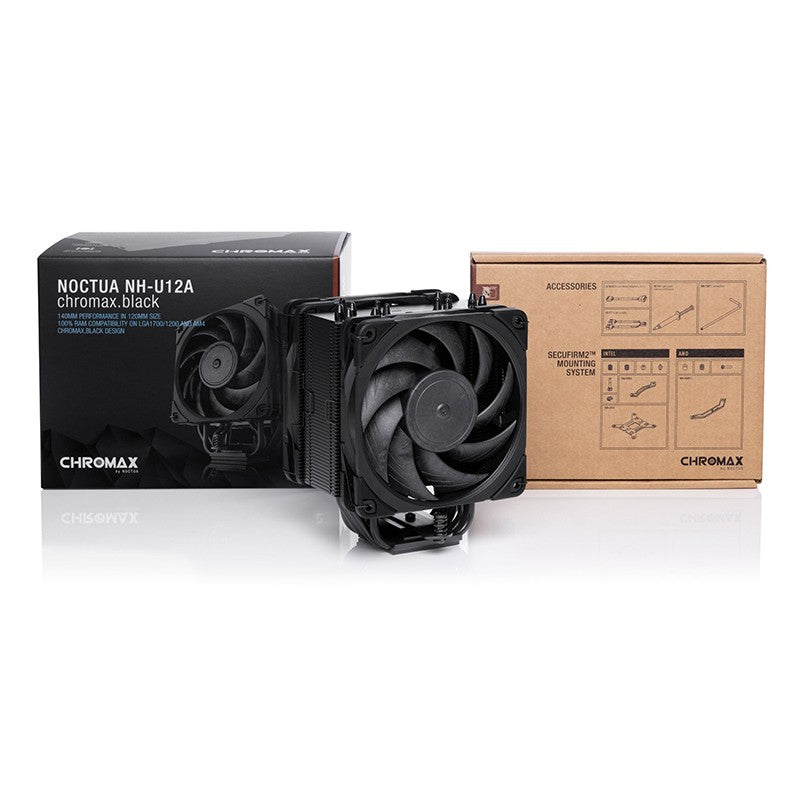

Black NH-U12A heatsink 2x NF-A12x25 PWM chromax.black premium fan 2x NA-RC14 Low-Noise Adaptor (L.N.A.) NA-YC1 4-pin PWM splitter cable NT-H1 high-grade thermal compound Black SecuFirm2™ mounting kit Noctua Metal Case-Badge |
FAN SPECIFICATION |
|
Model |
Noctua NF-A12x25 PWM chromax.black |
Bearing |
SSO2 |
Max. rotational speed (+/- 10%) |
2000 RPM |
Max. rotational speed with L.N.A. (+/- 10%) |
1700 RPM |
Min. rotational speed @ 20% PWM (+/-20%) |
450 RPM |
Max. airflow |
102,1 m/h |
Max. airflow with L.N.A. |
84,5 m/h |
Max. acoustical noise |
22,6 dB(A) |
Max. acoustical noise with L.N.A. |
18,8 dB(A) |
Voltage range |
12 V |
MTTF |
> 150.000 h |
