Description
SPECIFICATIONS:
Size |
120x120x25 mm |
Mounting hole spacing |
105x105 mm |
Connector & pin-configuration |
4-pin PWM |
Cable length |
20cm + 30cm NA-EC1 extension cable |
Bearing |
SSO2 |
Blade geometry |
Progressive-Bend impeller |
Frame technology |
AAO (Advanced Acoustic Optimisation) |
Material |
Sterrox® LCP |
Rotational speed (+/- 10%) |
1100 RPM |
Rotational speed with L.N.A. (+/- 10%) |
850 RPM |
Airflow |
66.3 m/h |
Airflow with L.N.A. |
45.2 m/h |
Acoustical noise |
11.8 dB(A) |
Acoustical noise with L.N.A. |
7.8 dB(A) |
Static pressure |
1.08 mm H₂O |
Static pressure with L.N.A. |
0.56 mm H₂O |
Input power (max.) |
1.8 W |
Max. input current |
0.15 A |
Operating voltage |
12 V |
MTTF |
> 150,000 h |

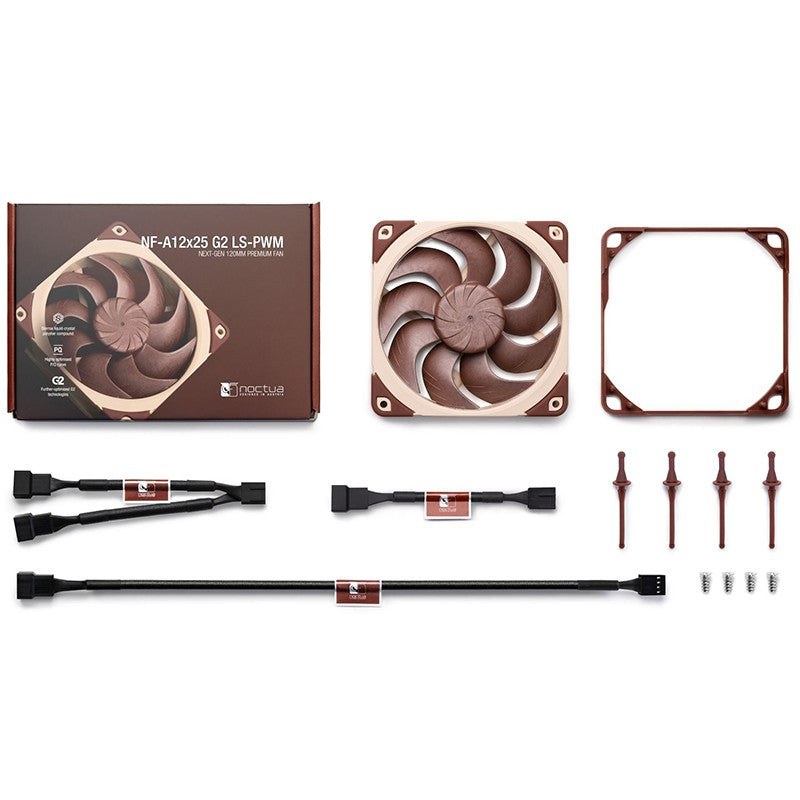

Scope of delivery |
NA-RC8 Low-Noise Adaptor (L.N.A.) NA-YC1 4-pin PWM splitter cable NA-EC1 30cm extension cable 4x NA-AV2 anti-vibration mounts NA-AVG1 anti-vibration gasket for water cooling radiators Fan screws |
