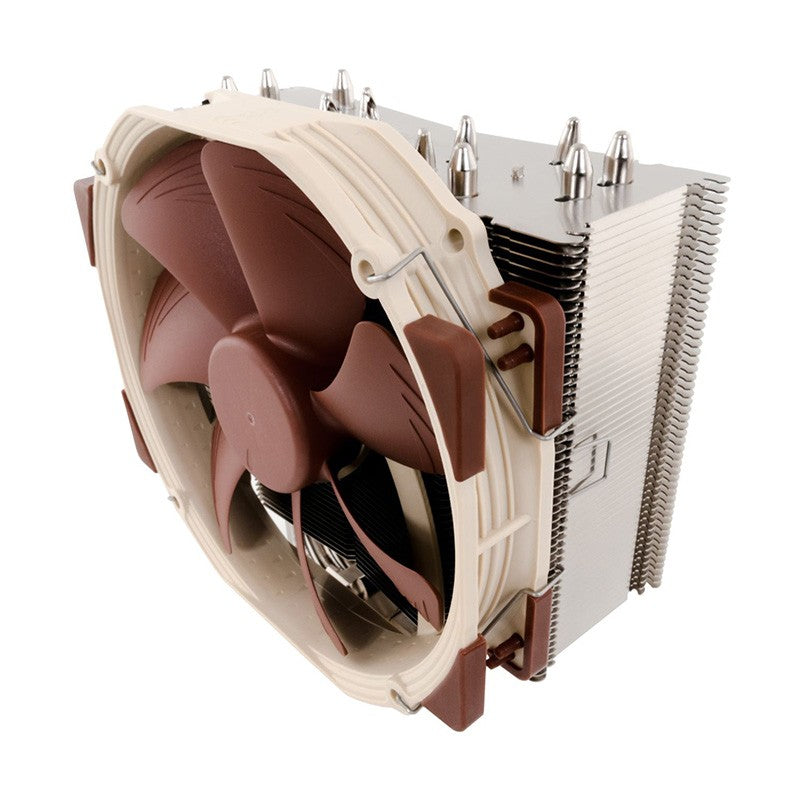

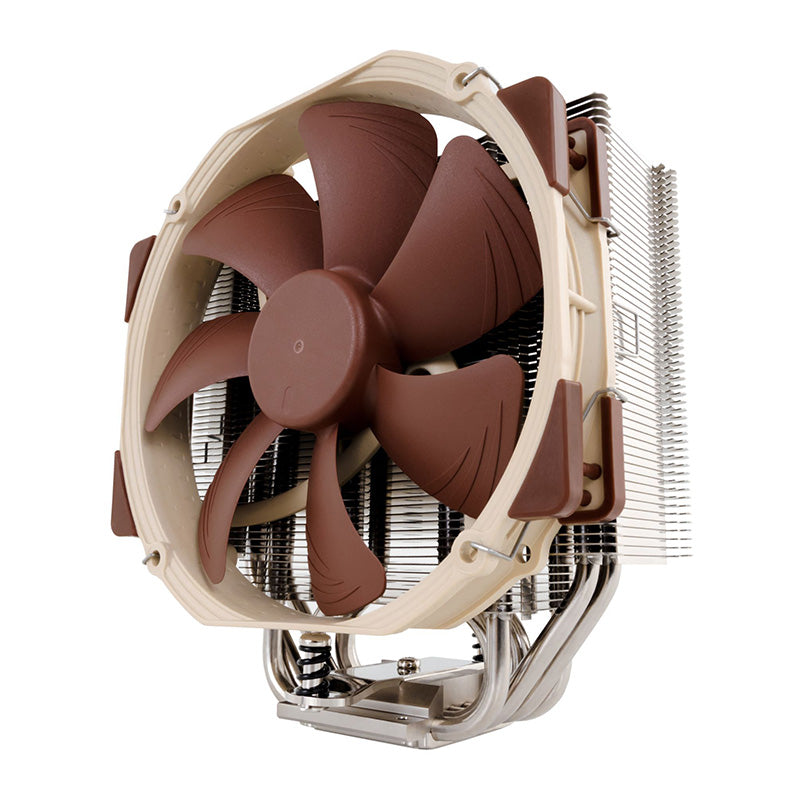

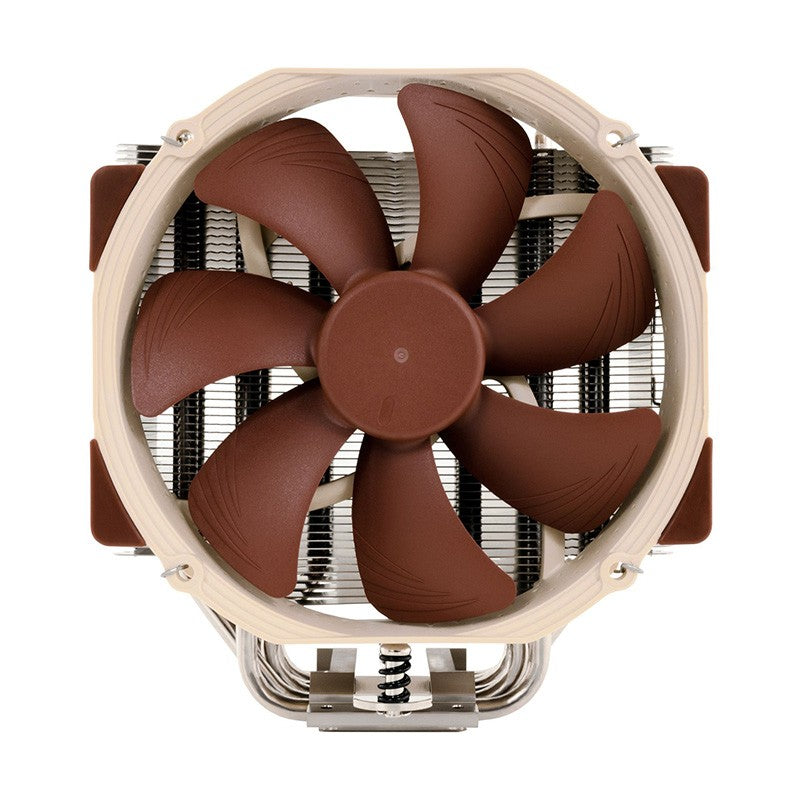

Noctua 140mm Multi Socket CPU Cooler

Socket compatibility

Intel LGA1851, LGA1700, LGA1200, LGA1156, LGA1155, LGA1151, LGA1150 and AMD AM5, AM4
(Current socket compatibility applies to all coolers purchased since Q2 2022. For older coolers, please refer to this chart.)

Height (without fan)

165 mm

Width (without fan)

150 mm

Depth (without fan)

52 mm

Height (with fan)

165 mm

Width (with fan)

150 mm

Depth (with fan)

78 mm

Weight (with fan)

935 g

Material

Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating

NSPR

162

Max. TDP

see NSPR

Fan compatibility

140x150x25 (with 120mm mounting holes), 140x140x25 (with 120mm mounting holes), 120x120x25

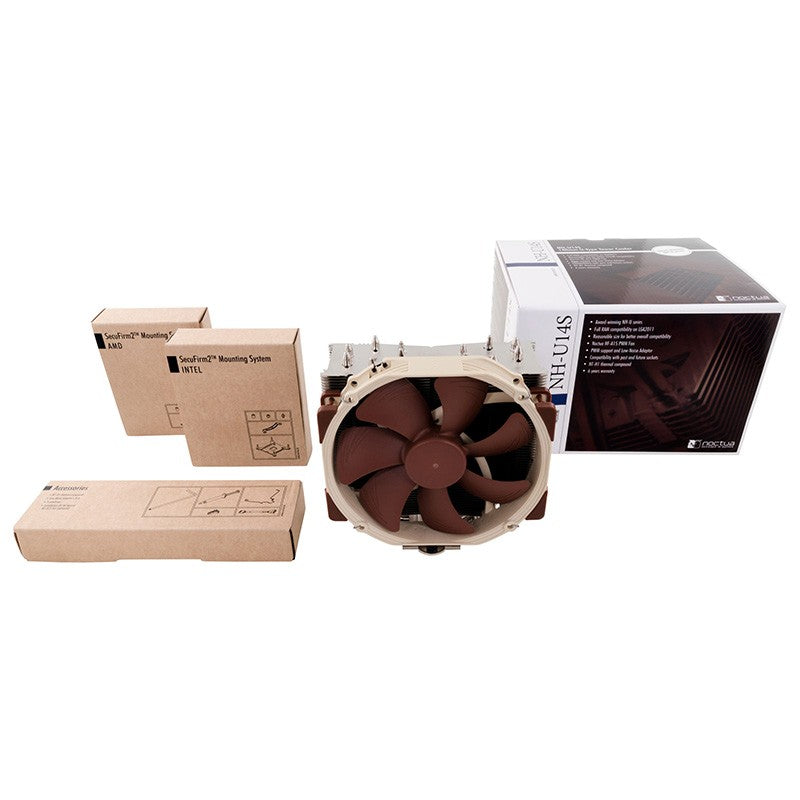

Scope of delivery

NF-A15 PWM premium fan

NA-RC7 Low-Noise Adaptor (L.N.A.)

NT-H1 high-grade thermal compound

SecuFirm2™ mounting kit

Anti-vibration pads and fan-clips for second NF-A15

Noctua Metal Case-Badge

FAN SPECIFICATION

Model Noctua

NF-A15 PWM

Bearing

SSO2

Max. rotational speed (+/- 10%)

1500 RPM

Max. rotational speed with L.N.A. (+/- 10%)

1200 RPM

Min. rotational speed @ 20% PWM (+/-20%)

300 RPM

Max. airflow

140,2 m/h

Max. airflow with L.N.A.

115,5 m/h

Max. acoustical noise

24,6 dB(A)

Max. acoustical noise with L.N.A.

19,2 dB(A)

Input power (max.)

1,56 W

Voltage range

12 V

MTTF

> 150.000 h
