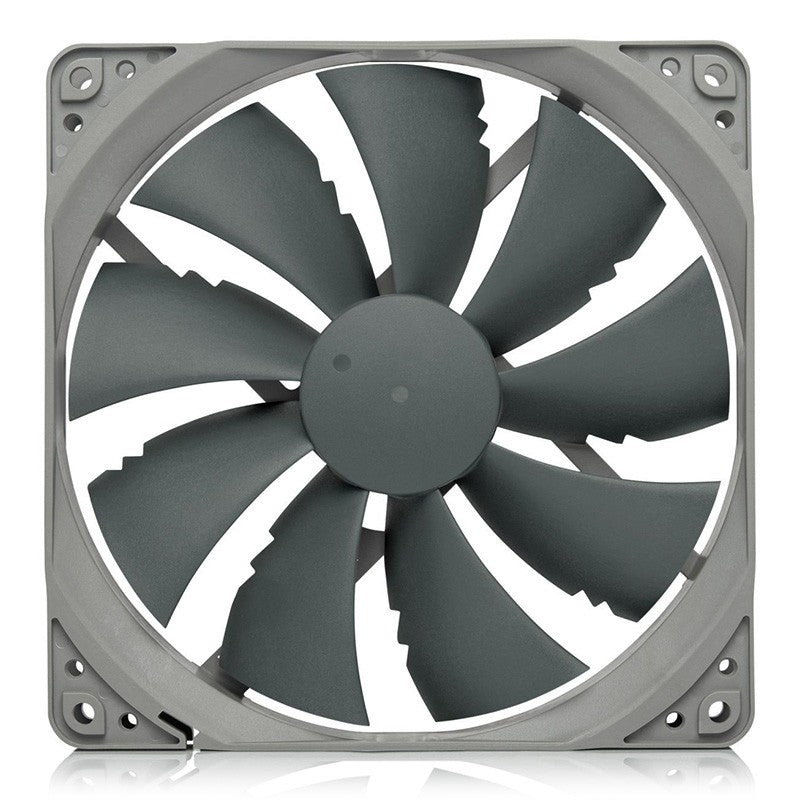

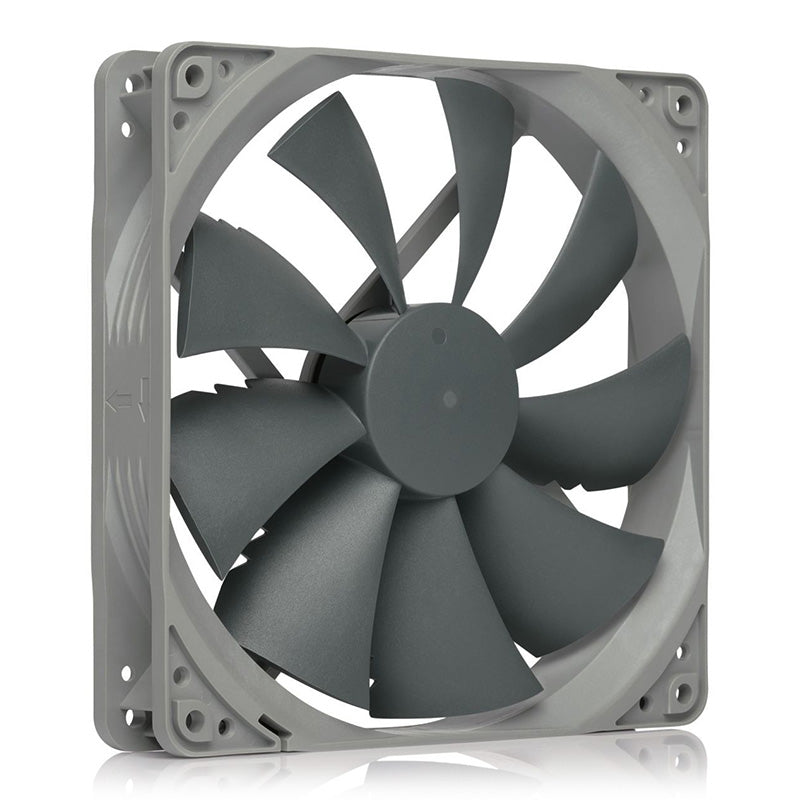

Noctua 140mm Redux Edition Square Frame PWM Fan Max

Mounting hole spacing

124,5x124,5 mm

Connector & pin-configuration

4-pin PWM

Cable length

40cm

Bearing

SSO-Bearing

Rotational speed (+/- 10%)

1500 RPM

Min. rotational speed @ 20% PWM (+/-20%)

450 RPM

Airflow

133,7 m/h

Acoustical noise

25,8 dB(A)

Static pressure

1,91 mm H₂O

Input power (typical)

2,1 W

Input power (max.)

2,4 W

Input current (typical)

0,17 A

Max. input current

0,2 A

Operating voltage

12 V

MTTF

> 150.000 h

Scope of delivery

Fan

4 Fan Screws
