Description
SPECIFICATIONS:
Size |
200x200x30 mm |
Mounting hole spacing |
154x154, 110x180, 170x170 mm |
Connector & pin-configuration |
4-pin PWM |
Cable length |
20cm + 30cm NA-EC1 extension cable |
Bearing |
SSO2 |
Blade geometry |
A-Series with Flow Acceleration Channels |
Frame technology |
AAO (Advanced Acoustic Optimisation) |
Rotational speed (+/- 10%) |
800 RPM |
Rotational speed with L.N.A. (+/- 10%) |
550 RPM |
Min. rotational speed @ 20% PWM (+/-20%) |
350 RPM |
Airflow |
146,9 m/h |
Airflow with L.N.A. |
100,8 m/h |
Acoustical noise |
18,1 dB(A) |
Acoustical noise with L.N.A. |
10,7 dB(A) |
Static pressure |
1,08 mm H₂O |
Static pressure with L.N.A. |
0,51 mm H₂O |
Input power (typical) |
0,82 W |
Input power (max.) |
0,96 W |
Input current (typical) |
0,07 A |
Max. input current |
0,08 A |
Operating voltage |
12 V |
Voltage PWM signal |
5 V |
MTTF |
> 150.000 h |

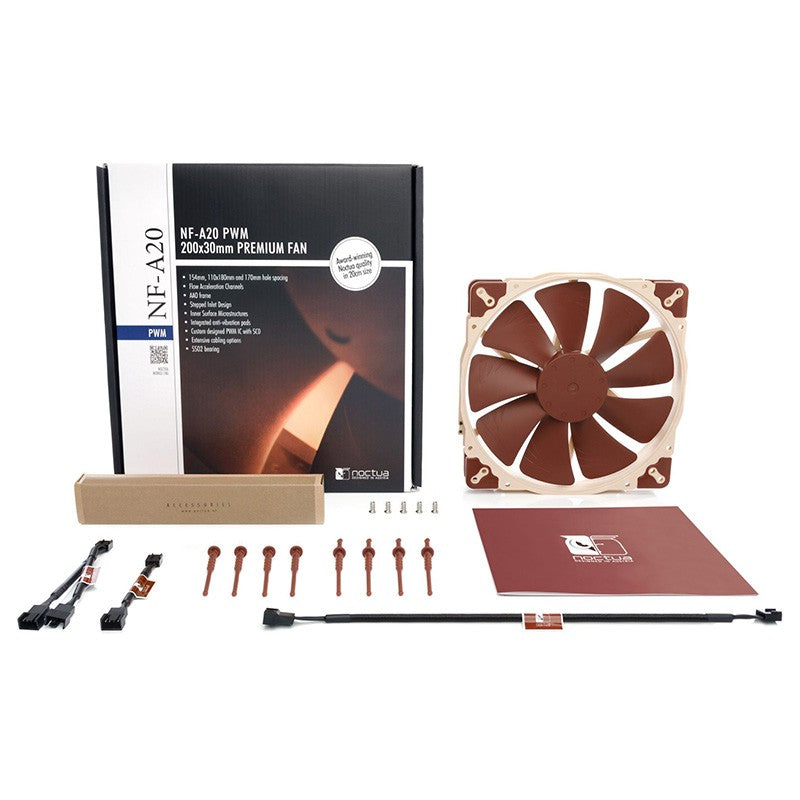

Scope of delivery |
Low-Noise Adaptor (L.N.A.) 4-pin y-cable 30cm extension cable NA-AV3 anti-vibration mounts NA-AV4 anti-vibration mounts Fan screws |
Notes |
Please refer to our case compatibility list for detailed compatibility information. |
