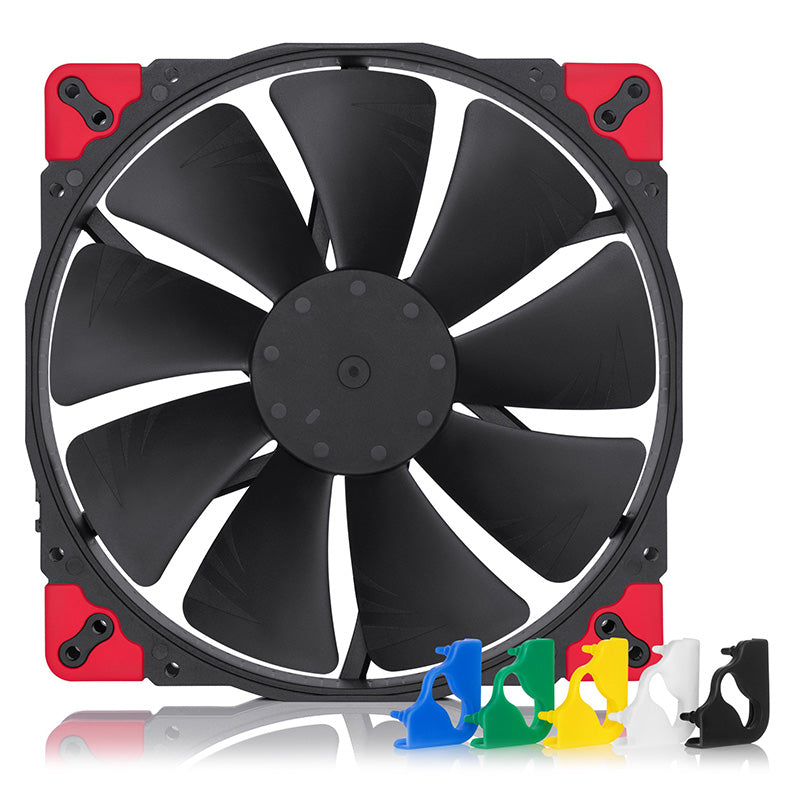

Noctua 200mm PWM Fan - Chromax Black

Mounting hole spacing

154x154, 110x180, 170x170 mm

Connector & pin-configuration

4-pin PWM

Cable length

2cm + 30cm NA-EC1 extension cable

Bearing

SSO2

Blade geometry

A-Series with Flow Acceleration Channels

Frame technology

AAO (Advanced Acoustic Optimisation)

Rotational speed (+/- 10%)

800 RPM

Min. rotational speed @ 20% PWM (+/-20%)

350 RPM

Airflow

146,9 m/h

Acoustical noise

18,1 dB(A)

Static pressure

1,08 mm H₂O

Input power (typical)

0,82 W

Input power (max.)

0,96 W

Input current (typical)

0,07 A

Max. input current

0,08 A

Operating voltage

12 V

Voltage PWM signal

5 V

MTTF

> 150.000 h

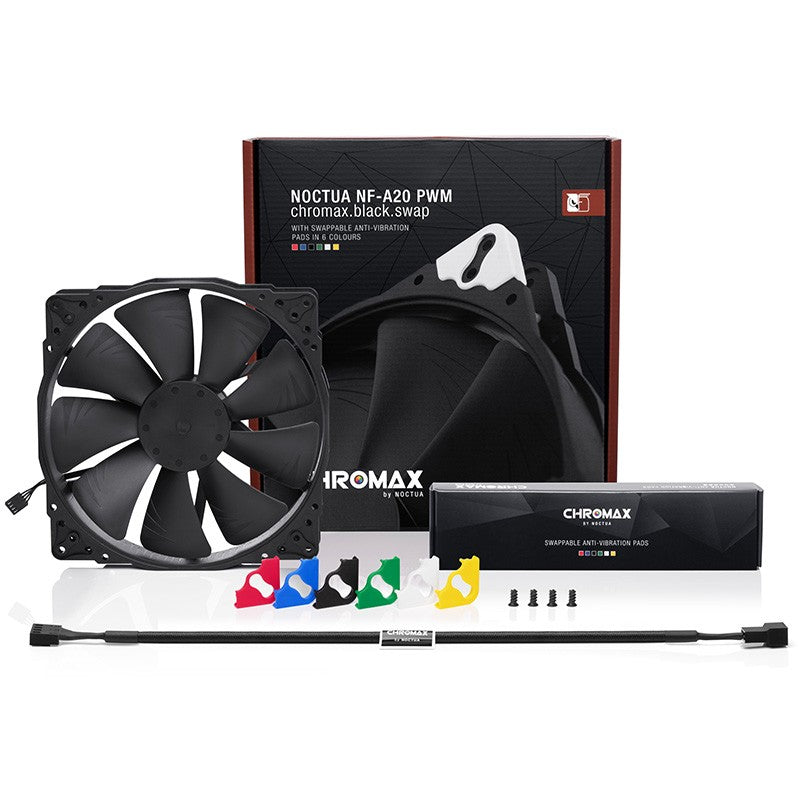

Scope of delivery

8x NA-AVP6 chromax.black anti-vibration pads

4x NA-AVP6 chromax.blue anti-vibration pads

4x NA-AVP6 chromax.green anti-vibration pads

4x NA-AVP6 chromax.red anti-vibration pads

4x NA-AVP6 chromax.white anti-vibration pads

4x NA-AVP6 chromax.yellow anti-vibration pads

NA-EC1 chromax.black 30 cm extension cable

4x fan screws

Notes and warnings

Please refer to our case compatibility list for detailed compatibility information.
