SPECIFICATIONS:
Size |
60x60x15 mm |
Mounting hole spacing |
50x50 mm |
Connector & pin-configuration |
3-pin |
Cable length |
20cm + 30cm NA-EC1 extension cable |
Bearing |
SSO2 |
Blade geometry |
A-Series with Flow Acceleration Channels |
Frame technology |
AAO (Advanced Acoustic Optimisation) |
Material |
Fibre-glass reinforced PBT |
Rotational speed (+/- 10%) |
3500 RPM |
Rotational speed with L.N.A. (+/- 10%) |
3050 RPM |
Rotational Speed with U.L.N.A. (+/- 10%) |
2250 RPM |
Airflow |
23.4 m/h |
Airflow with L.N.A. |
20.1 m/h |
Airflow with U.L.N.A. |
14.5 m/h |
Acoustical noise |
19,8 dB(A) |
Acoustical noise with L.N.A. |
16.5 dB(A) |
Acoustical noise with U.L.N.A. |
7.8 dB(A) |
Static pressure |
2.43 mm H₂O |
Static pressure with L.N.A. |
1.79 mm H₂O |
Static pressure with U.L.N.A. |
0.98 mm H₂O |
Input power (max.) |
1.02 W |
Max. input current |
0.085 A |
Operating voltage |
12 V |
MTTF |
> 150.000 h |

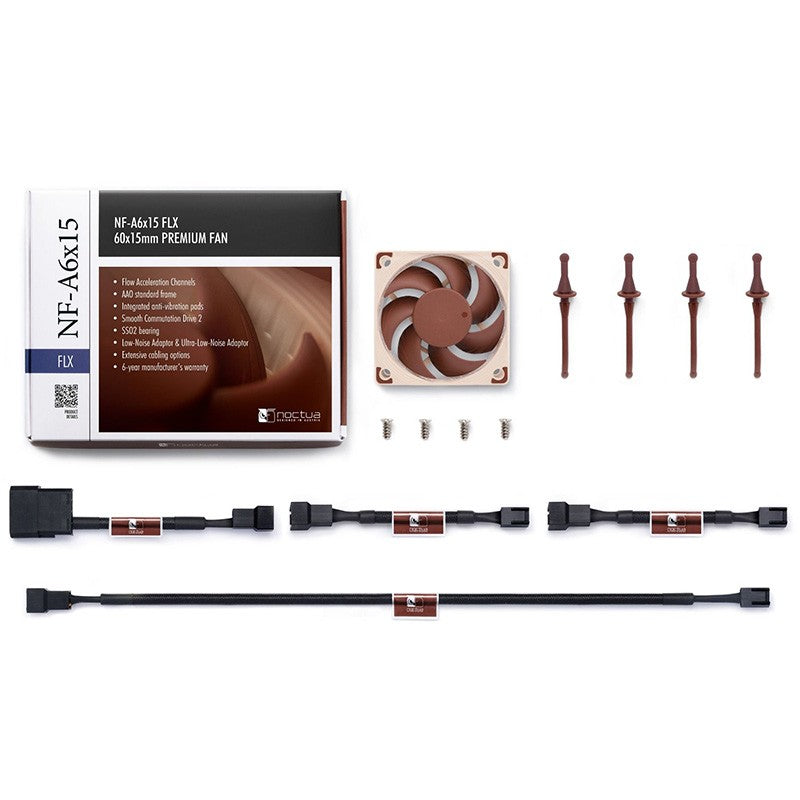

Scope of delivery |
4x NA-AV2 anti-vibration mounts NA-EC2 30cm extension cable NA-AC1 3:4-pin adaptor cable NA-RC15 Low-Noise Adaptor (L.N.A.) NA-RC13 Ultra-Low-Noise Adaptor (U.L.N.A) Fan screws |
