Description
SPECIFICATIONS:
Size |
60x60x15 mm |
Mounting hole spacing |
50x50 mm |
Connector & pin-configuration |
4-pin PWM |
Cable length |
20cm + 30cm NA-EC1 extension cable |
Bearing |
SSO2 |
Blade geometry |
A-Series with Flow Acceleration Channels |
Frame technology |
AAO (Advanced Acoustic Optimisation) |
Material |
Fibre-glass reinforced PBT |
Rotational speed (+/- 10%) |
3500 RPM |
Airflow |
23.4 m/h |
Acoustical noise |
19.8 dB(A) |
Static pressure |
2.43 mm H₂O |
Input power (max.) |
0.85 W |
Max. input current |
0.17 A |
Operating voltage |
5 V |
MTTF |
> 150.000 h |

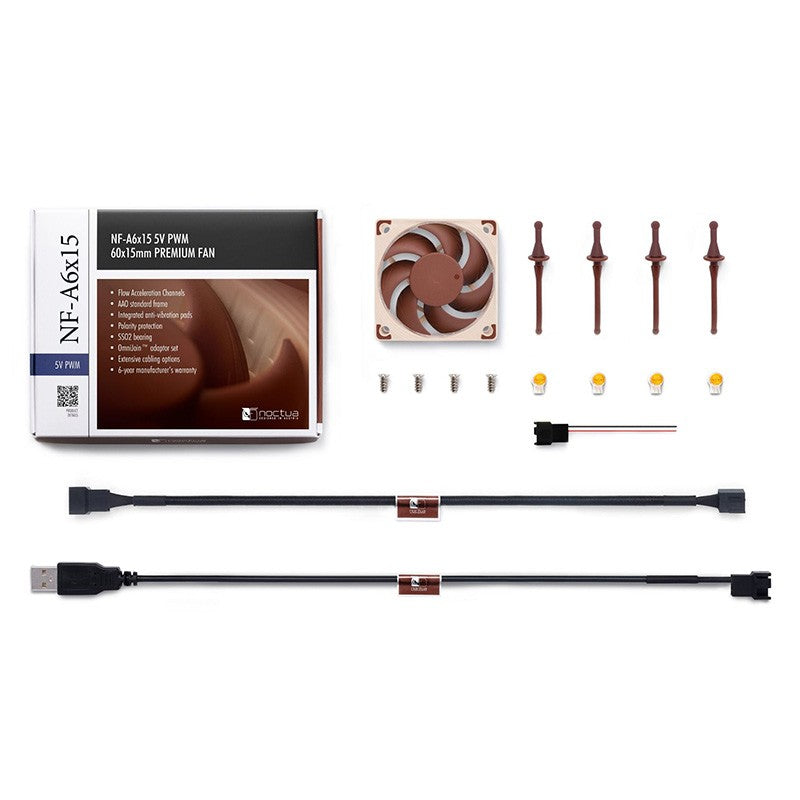

Scope of delivery |
4x NA-AV2 anti-vibration mounts NA-EC1 30cm extension cable USB power adaptor cable OmniJoin™ adaptor set Fan screws |
Notes and warnings |
Being a 5V fan, the NF-A6x15 5V PWM cannot be run at 12V and will be damaged when used with typical 12V power sources such as PC motherboard fan headers. |
