Description
SPECIFICATIONS:
Size |
92x92x14 mm |
Mounting hole spacing |
82,5x82,5 mm |
Connector & pin-configuration |
4-pin PWM |
Cable length |
2cm + 30cm NA-EC1 extension cable |
Bearing |
SSO2 |
Blade geometry |
A-Series with Flow Acceleration Channels |
Frame technology |
AAO (Advanced Acoustic Optimisation) |
Rotational speed (+/- 10%) |
2500 RPM |
Min. rotational speed @ 20% PWM (+/-20%) |
600 RPM |
Airflow |
57,5 m/h |
Acoustical noise |
23,6 dB(A) |
Static pressure |
2,11 mm H₂O |
Input power (typical) |
1,848 W |
Input power (max.) |
2,52 W |
Input current (typical) |
0,154 A |
Max. input current |
0,21 A |
Operating voltage |
12 V |
MTTF |
> 150.000 h |

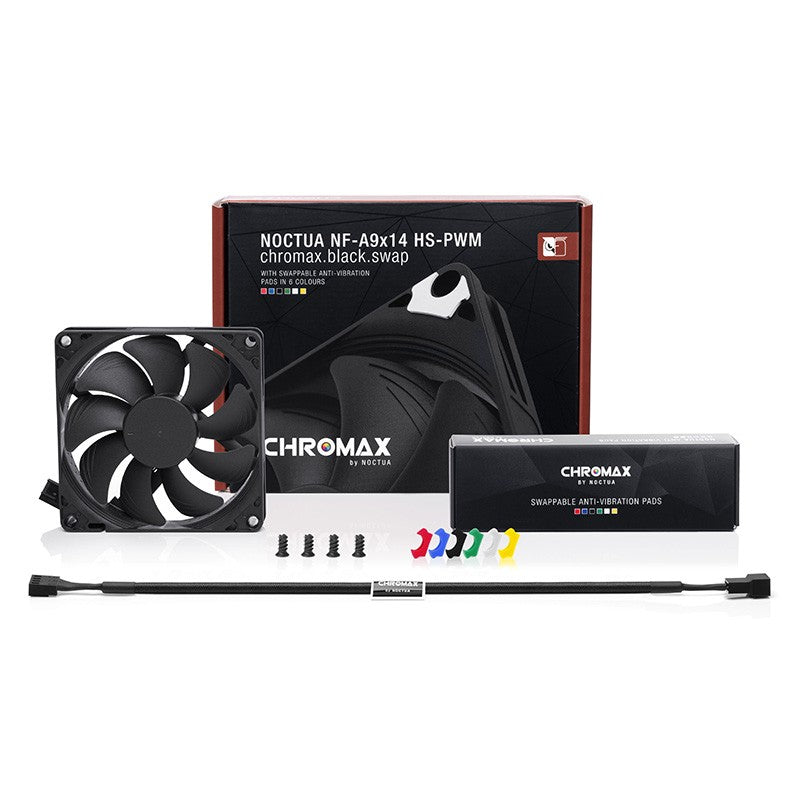

Scope of delivery |
8x NA-AVP8 chromax.black anti-vibration pads 8x NA-AVP8 chromax.blue anti-vibration pads 8x NA-AVP8 chromax.green anti-vibration pads 8x NA-AVP8 chromax.red anti-vibration pads 8x NA-AVP8 chromax.white anti-vibration pads 8x NA-AVP8 chromax.yellow anti-vibration pads NA-EC1 chromax.black 30 cm extension cable 4x fan screws |
