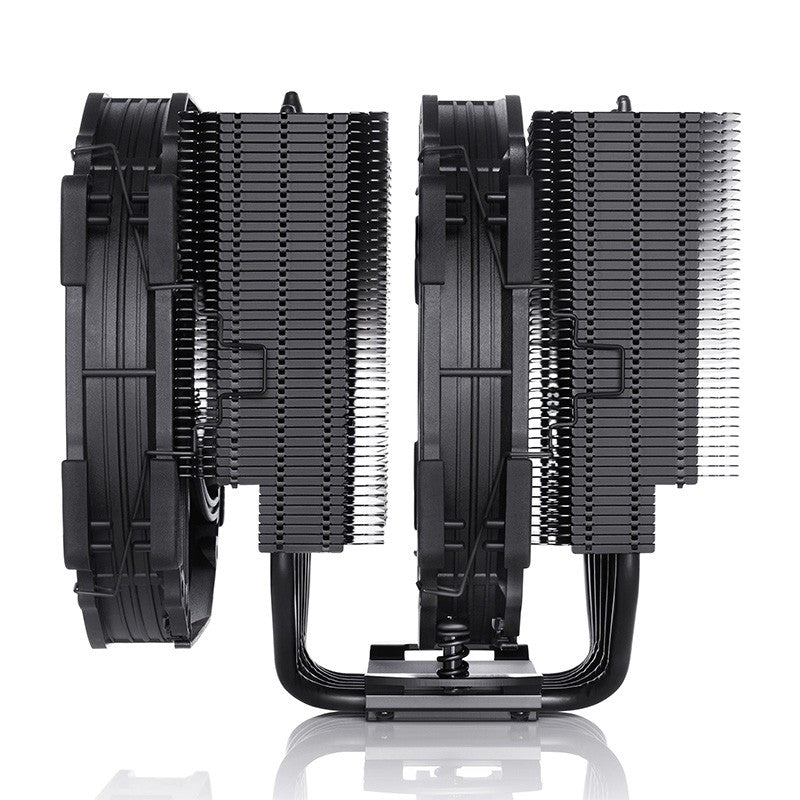

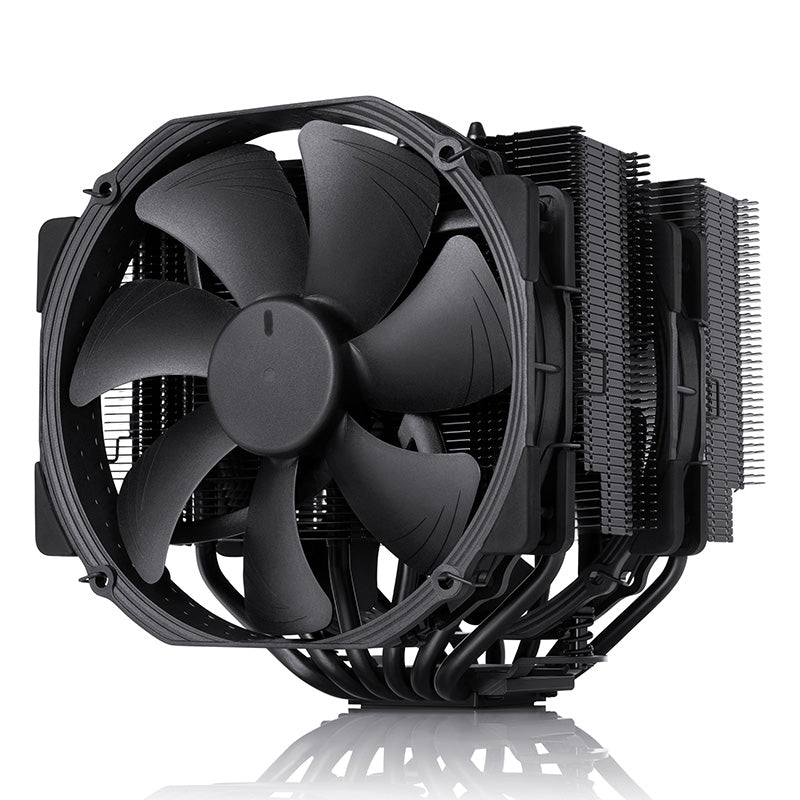

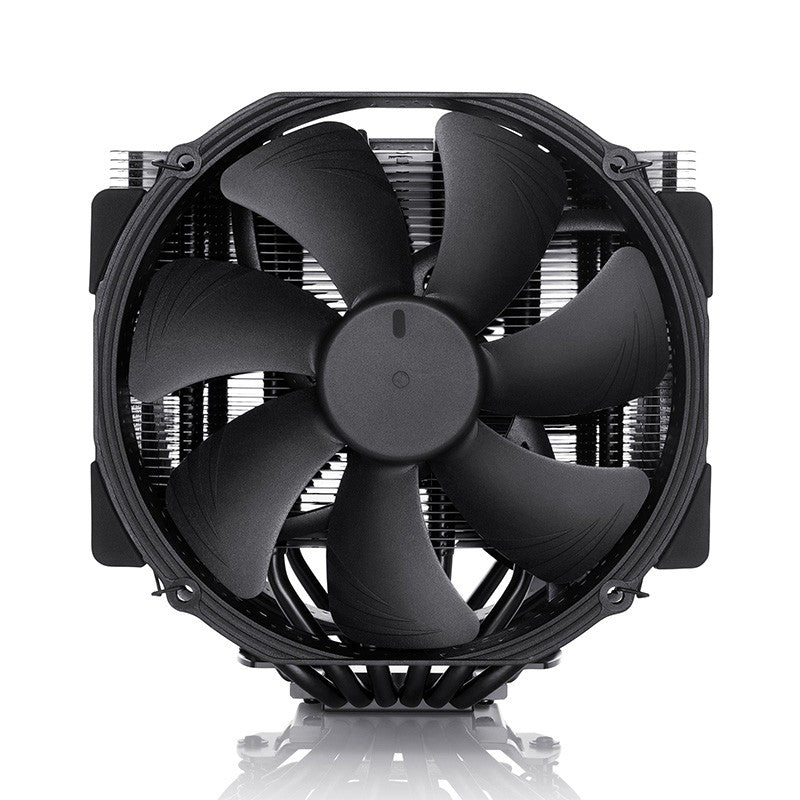

Noctua D15 CPU Cooler PWM - Chromax Black

Socket compatibility

Intel LGA1851, LGA1700, LGA1200, LGA1156, LGA1155, LGA1151, LGA1150 & AMD AM4, AM5
(Current socket compatibility applies to all coolers purchased since Q4 2021. For older coolers, please refer to this chart.)

Height (without fan)

160 mm

Width (without fan)

150 mm

Depth (without fan)

135 mm

Weight (without fan)

980 g

Height (with fan)

165 mm

Width (with fan)

150 mm

Depth (with fan)

161 mm

Weight (with fan)

1320 g

Material

Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating

NSPR

183

Max. TDP

see NSPR

Fan compatibility

140x150x25 (with 120mm mounting holes), 140x140x25 (with 120mm mounting holes), 120x120x25

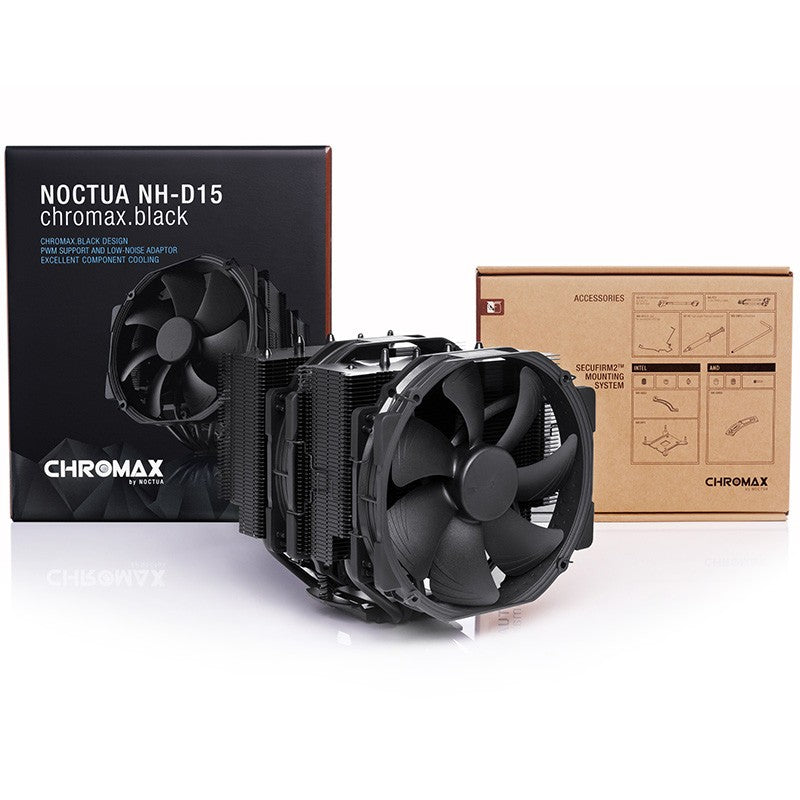

Scope of delivery

Black NH-D15 heatsink

2x NF-A15 HS-PWM chromax.black premium fan

2x NA-RC7 Low-Noise Adaptor (L.N.A.)

NA-YC1 4-pin PWM splitter cable

NT-H1 high-grade thermal compound

Black SecuFirm2™ mounting kit

Noctua Metal Case-Badge

FAN SPECIFICATION

Model

2x Noctua NF-A15 HS-PWM chromax.black

Bearing

SSO2

Max. rotational speed (+/- 10%)

1500 RPM

Max. rotational speed with L.N.A. (+/- 10%)

1200 RPM

Min. rotational speed @ 20% PWM (+/-20%)

300 RPM

Max. airflow

140,2 m/h

Max. airflow with L.N.A.

115,5 m/h

Max. acoustical noise

24,6 dB(A)

Max. acoustical noise with L.N.A.

19,2 dB(A)

Voltage range

12 V

MTTF

> 150.000 h
