Description
SPECIFICATIONS:
Size |
40x40x20 mm |
Mounting hole spacing |
32x32 mm |
Connector & pin-configuration |
3-pin |
Cable length |
20cm + 30cm NA-EC1 extension cable |
Bearing |
SSO2 |
Blade geometry |
A-Series with Flow Acceleration Channels |
Frame technology |
AAO (Advanced Acoustic Optimisation) |
Rotational speed (+/- 10%) |
5000 RPM |
Rotational speed with L.N.A. (+/- 10%) |
4400 RPM |
Rotational Speed with U.L.N.A. (+/- 10%) |
3700 RPM |
Airflow |
9,4 m/h |
Airflow with L.N.A. |
8,3 m/h |
Airflow with U.L.N.A. |
6,9 m/h |
Acoustical noise |
14,9 dB(A) |
Acoustical noise with L.N.A. |
12,2 dB(A) |
Acoustical noise with U.L.N.A. |
8,5 dB(A) |
Static pressure |
2,26 mm H₂O |
Static pressure with L.N.A. |
1,75 mm H₂O |
Static pressure with U.L.N.A. |
1,23 mm H₂O |
Input power (typical) |
0,46 W |
Input power (max.) |
0,6 W |
Input current (typical) |
0,04 A |
Max. input current |
0,05 A |
Operating voltage |
12 V |
MTTF |
> 150.000 h |

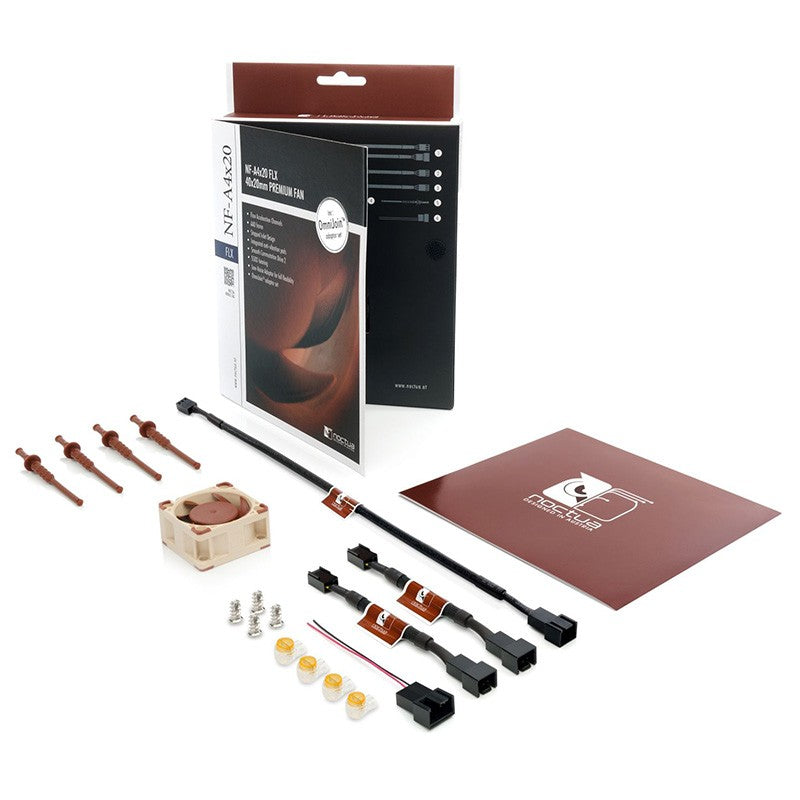

Scope of delivery |
Low-Noise Adaptor (L.N.A.) Ultra-Low-Noise Adaptor (U.L.N.A.) 30cm extension cable OmniJoin™ adaptor set NA-AV3 anti-vibration mounts Fan screws |
