Description
SPECIFICATIONS:
Socket compatibility |
AMD AM5 |
Height (without fan) |
23 mm |
Width (without fan) |
114 mm |
Depth (without fan) |
92 mm |
Weight (without fan) |
390 g |
Height (with fan) |
37 mm |
Width (with fan) |
114 mm |
Depth (with fan) |
92 mm |
Weight (with fan) |
465 g |
Material |
Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating |
NSPR |
61 |
Max. TDP |
see NSPR |
Fan compatibility |
92x92x14mm, 92x92x25mm |

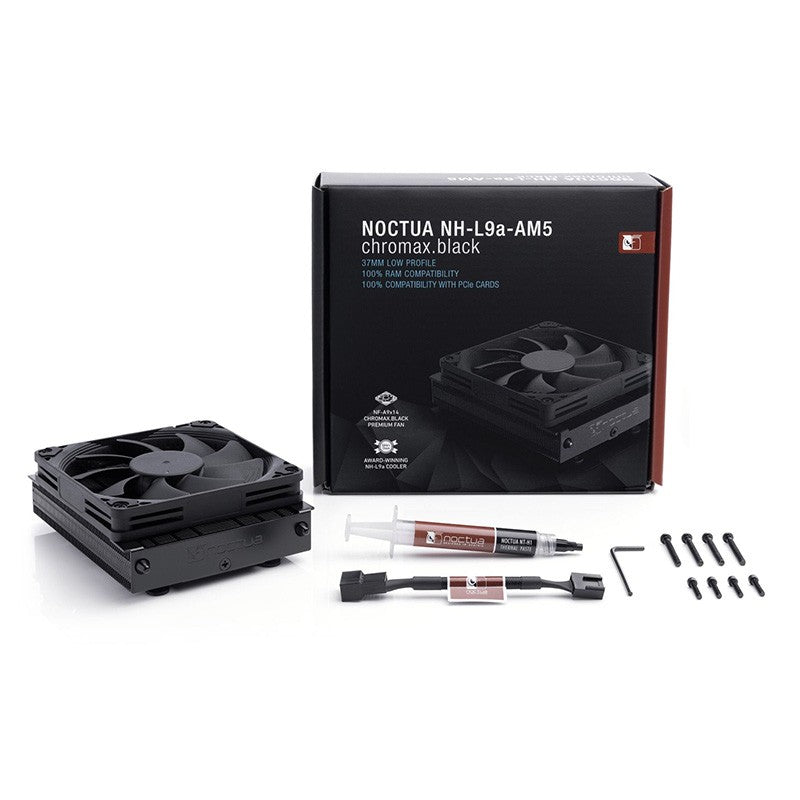

Scope of delivery |
Black NH-L9a-AM5 heatsink NF-A9x14 HS-PWM chromax.black premium fan NA-RC7 Low-Noise Adaptor (L.N.A) NT-H1 high-grade thermal compound Black SecuFirm2™ AM5 mounting kit Black screws for 92x92x25mm fans Noctua Metal Case-Badge |
Notes |
The NH-L9a-AM5 is a highly compact, quiet low-profile cooler designed for use in small form factor cases and HTPC environments. While it provides first-rate performance in its class, it is not suitable for overclocking and or CPUs that create high heat loads. Please consult our CPU compatibility list to find out whether the NH-L9a-AM5 is recommended for your CPU. |
