Description
SPECIFICATIONS:
FAN |
|
Socket compatibility |
AMD AM4 |
Height (without fan) |
23 mm |
Width (without fan) |
114 mm |
Depth (without fan) |
92 mm |
Weight (without fan) |
390 g |
Height (with fan) |
37 mm |
Width (with fan) |
114 mm |
Depth (with fan) |
92 mm |
Weight (with fan) |
465 g |
Material |
Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating |
NSPR |
61 |
Max. TDP |
|
Fan compatibility |
92x92x14mm, 92x92x25mm |
Scope of delivery |

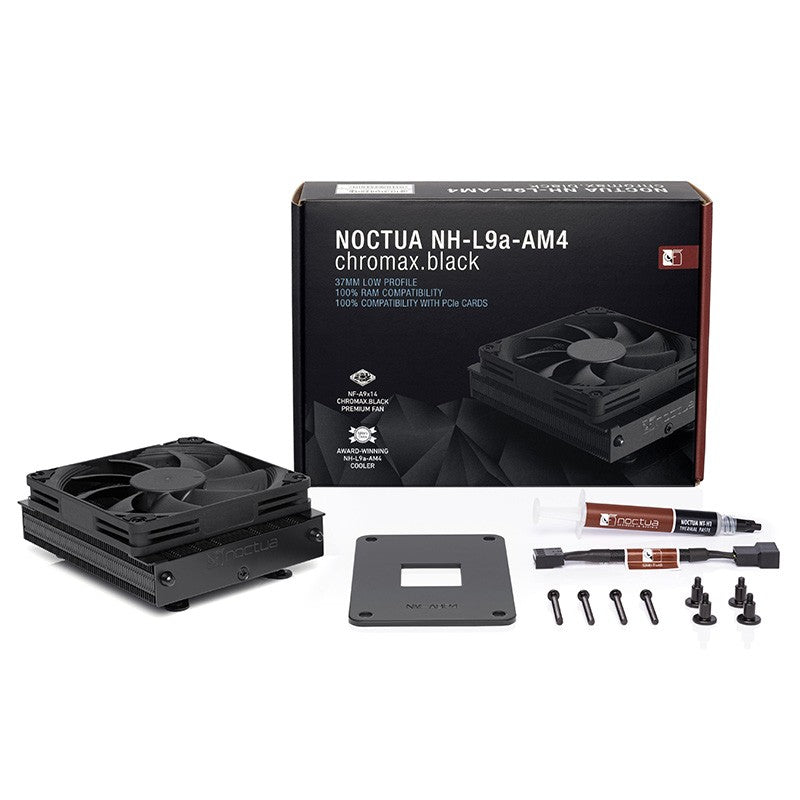

Black NH-L9a-AM4 heatsink NF-A9x14 HS-PWM chromax.black premium fan NA-RC7 Low-Noise Adaptor (L.N.A.) NT-H1 high-grade thermal compound Black SecuFirm2™ AM4 mounting kit Black Screws for 92x92x25mm fans Noctua Metal Case-Badge |
COOLER |
|
Model Noctua |
NF-A9x14 HS-PWM chromax.black |
Bearing |
SSO2 |
Max. rotational speed (+/- 10%) |
2500 RPM |
Max. rotational speed with L.N.A. (+/- 10%) |
1800 RPM |
Min. rotational speed @ 20% PWM (+/-20%) |
600 RPM |
Max. airflow |
57,5 m/h |
Max. airflow with L.N.A. |
40,8 m/h |
Max. acoustical noise |
23,6 dB(A) |
Max. acoustical noise with L.N.A. |
14,8 dB(A) |
Input power (max.) |
2,52 W |
Voltage range |
12 V |
MTTF |
> 150.000 h |
