Description
SPECIFICATIONS:
COOLER SPECIFICATION |
|
Socket compatibility |
Intel LGA1851, LGA1700, LGA1200, LGA1156, LGA1155, LGA1151, LGA1150 and AMD AM5, AM4
(Current socket compatibility applies to all coolers purchased since Q4 2021. For older coolers, please refer to this chart.) |
Height (without fan) |
110 mm |
Width (without fan) |
95 mm |
Depth (without fan) |
95 mm |
Height (with fan) |
110 mm |
Width (with fan) |
95 mm |
Depth (with fan) |
95 mm |
Weight (with fan) |
531 g |
Material |
Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating |
NSPR |
88 |
Max. TDP |
see NSPR |
Fan compatibility |
92x92x25 |

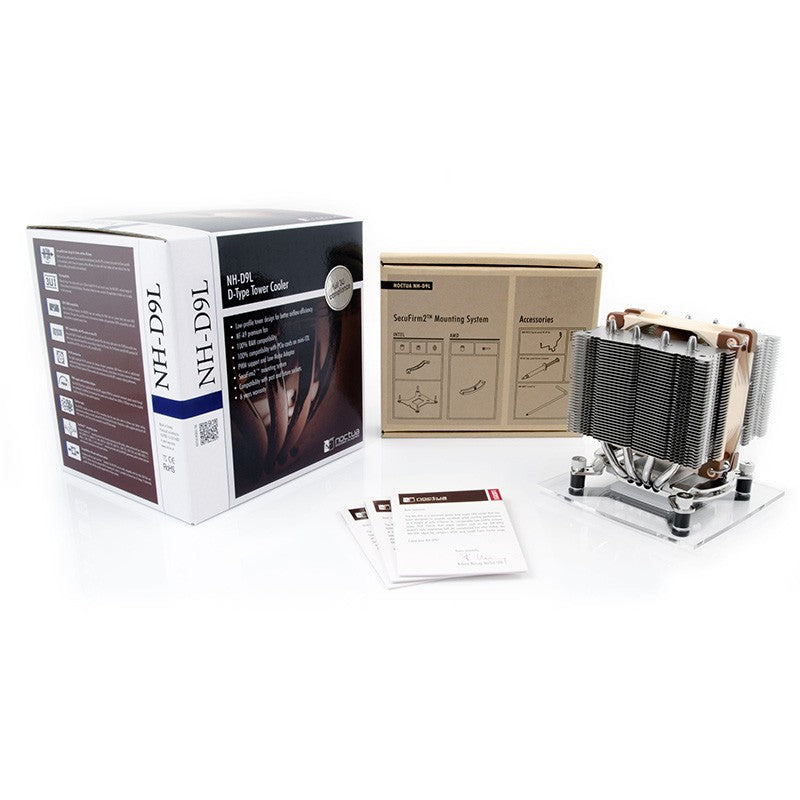

Scope of delivery |
NF-A9 PWM premium fan NA-RC7 Low-Noise Adaptor (L.N.A.) NT-H1 high-grade thermal compound SecuFirm2™ Mounting Kit Fan-clips for second NF-A9 Noctua Metal Case-Badge |
FAN SPECIFICATION |
|
Model |
Noctua NF-A9 PWM |
Bearing |
SSO2 |
Max. rotational speed (+/- 10%) |
2000 RPM |
Max. rotational speed with L.N.A. (+/- 10%) |
1550 RPM |
Min. rotational speed @ 20% PWM (+/-20%) |
400 RPM |
Max. airflow |
78,9 m/h |
Max. airflow with L.N.A. |
62,6 m/h |
Max. acoustical noise |
22,8 dB(A) |
Max. acoustical noise with L.N.A. |
16,3 dB(A) |
Input power (max.) |
1,2 W |
Voltage range |
12 V |
MTTF |
> 150.000 h |
